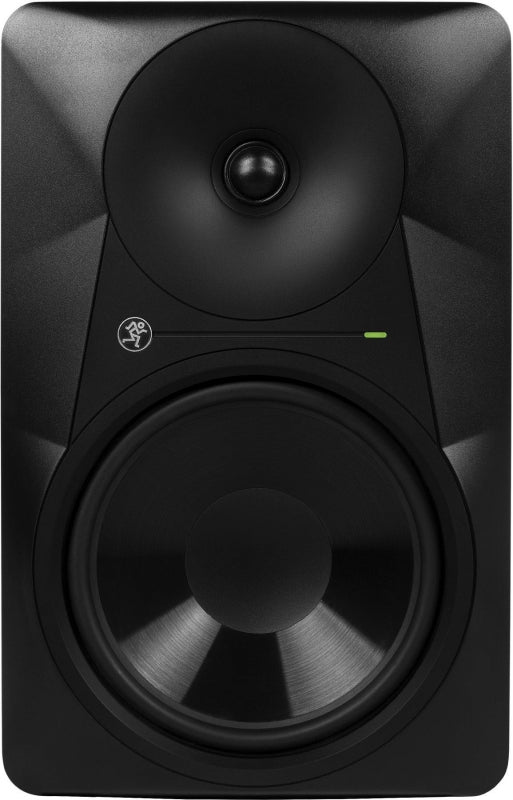

Mackie MR824

It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.

The MR824 is equipped with matched amps and drivers for an optimized 85W Class-A/B bi-amplified system. The speaker can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright or dull sounding rooms.

The MR824 has been designed with flexibility in mind, featuring XLR, TRS and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the MRS10 studio subwoofer can be added for a more powerful, extended low end.

• Designed for superior mix translation and accuracy for professional results in any studio

• Equipped with Mackie's proven logarithmic waveguide design

- Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot

- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum

• 1" silk dome tweeter provides fast transient response for detailed high end and vocal clarity

• 8" polypropylene woofer delivers responsive, dynamic low frequency response

• 85-watts of bi-amplified Class A/B amplification

• Frequency response: 35 Hz - 20 kHz

• Optimize MR monitors for your mixing environment

- Adjustable acoustic space filters maintain flat response in typical placement configurations

- HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms

• Professional all-wood cabinet design built to last and look great in any studio

- Custom-designed internal bracing adds stiffness for reduced distortion and enhanced low-frequency response

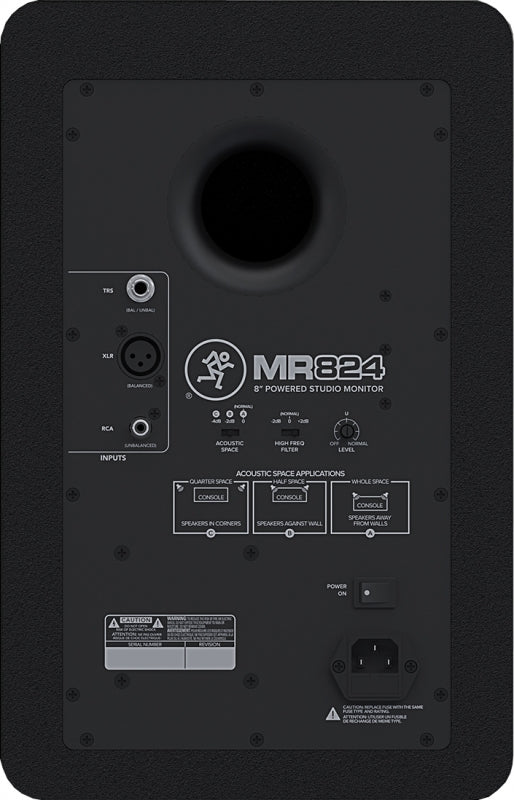

• Flexible inputs for simple connection to almost any audio source

• Acoustically optimized with sound-tightening acoustic absorption material

• Add the optional MRS10 studio subwoofer for powerful, deep low-frequency extension, well suited for electronic music, hip-hop and more

Frequency Response: 38 Hz to 20 kHz, (-3 dB), 35 Hz to 20 kHz, (-10 dB)

SPL: 107 dB SPL @ 3.3' / 1.0 m (+4 dBu into balanced input)

Maximum SPL: 113 dB SPL @ 3.3' / 1.0 m (per pair)

Transducer: Low Frequency: 8.0" / 203 mm (polypropylene-coated woofer), High Frequency 1.0" / 25 mm (silk dome tweeter)

Power: 85 W

Crossover: Crossover Frequency: 1.9 kHz

Controls and Processing: Power, Level, HF-boost/cut, Acoustic space control

AC Power: 100 to 120 VAC

Enclosure: Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish

Dimensions: 15.7 x 10.9 x 13.2" / 401 x 277 x 335 mm

Weight: 33.1 lb / 15.0 kg
