Merging Technologies ADA8V3S

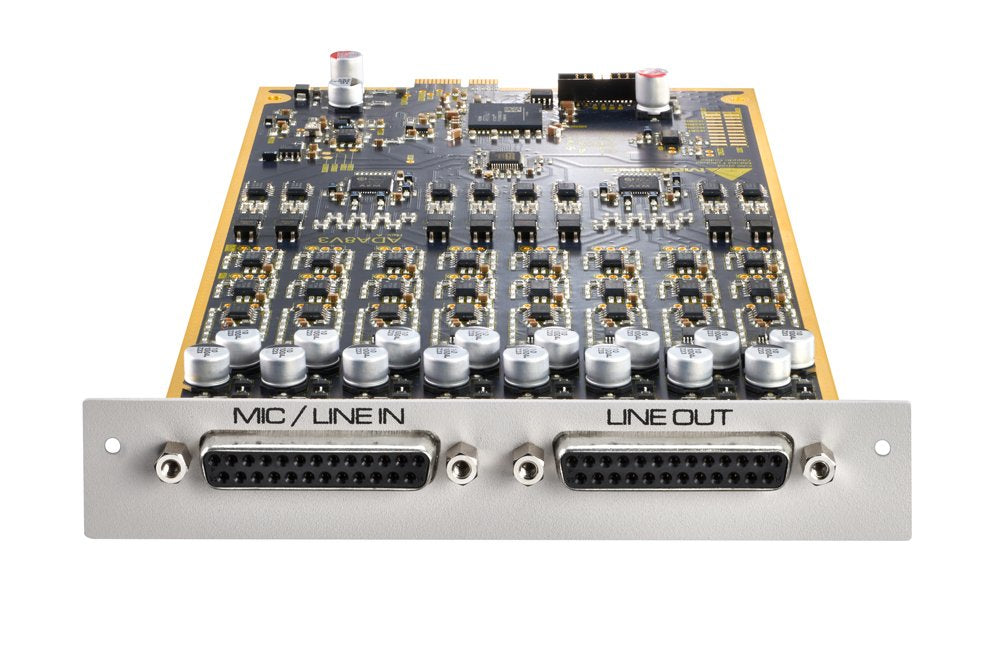

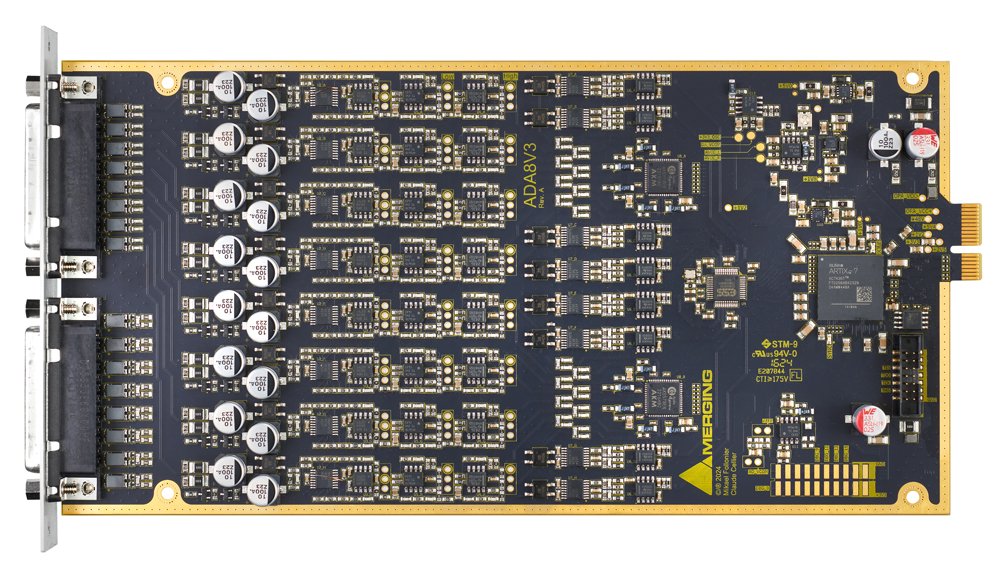

The ADA8V3S is a complex input and output card for the Merging audio mainframe Hapi Mk III. With eight inputs and eight outputs, it offers two-way audio conversion: analog to digital and digital to analog. These remote controlled Mic/Line Input and Output cards feature 3rd generation Dual Gain topology, inspired by the exceptional Anubis preamps, for highest audio quality without compromise. With two ADA8V3S 8-channel Mic/Line In and Line Out Cards you can configure Hapi Mk III for up to 16 analog I/O channels. The ADA8V3S supports sample rates of up to 192 kHz.

- 8 exceptionally transparent, Swiss designed preamplifiers plus 8 outputs

- Dynamic range of 139 dB (A-weighted, typ.) on the line inputs

- Preamps offer up to 78 dB of gain (with Boost)

- Full remote access for all parameter changes

- Dynamic range of 124 dB (A-weighted, typ.) on the line outputs

- Phantom power/polarity invert/low cut/impedance switchable per channel

- Switch to line level on a per channel basis via display or remotely via browser

- Auto-mute circuitry for "no-pop" power cycling

- Digitally controlled output trims for line-up procedures

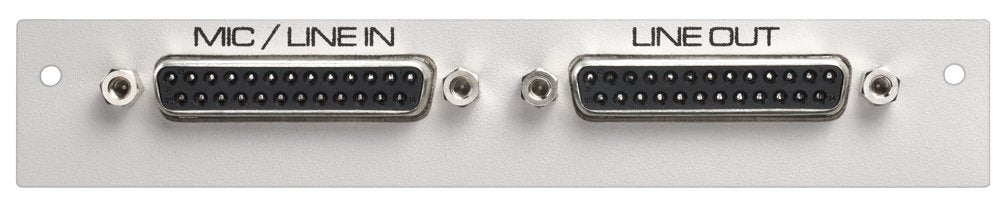

- 2x 25-pin Sub D connector

- Sample rates up to 192 kHz"

MIC PRE-AMP + ADC SECTION:

Mic Pre Max Input (Mic+Pad / Mic / Mic Boost): +24 dBu / +12 dBu / +0 dBu

Input Impedance (Differential, Software Switchable Per Channel): 3 kΩ / 10.4 kΩ

Frequency Response (+0/-0.3dB @ fs = 48 kHz): 9 Hz " 22 kHz

Frequency Response (+0/-0.3dB @ fs = 96 kHz): 9 Hz " 46 kHz

Frequency Response (+0/-0.3dB @ fs = 192 kHz): 11 Hz " 94 kHz

Dynamic Range (A-weighted, typ.), ref +12 dBu: 137 dB

Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu: 128 dB

Gain Range (software controlled): 0 dB to +66 dB

THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)

Interchannel Crosstalk @ 1kHz: < -130 dB

EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted): < -127 dBu

Common Mode Rejection Rate (20 Hz " 20 kHz): > 75 dB

Phantom Power (Software Switchable Per Channel): +48V

Polarity Invert (Software Switchable Per Channel): Yes

Low Cut Filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz

LINE INPUT:

Max Line Input for 0 dBFS: +24 dBu

Input Impedance (Differential): 10.4 kΩ

Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB

THD+N Line + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)

Interchannel Crosstalk @ 1kHz, typ: < -135 dB

Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu

Gain Step: 0.5 dB

Common Mode Rejection Rate (20 Hz " 20 kHz): > 75 dB

Connector Pinout: DB-25 / AES59 (Tascam Ana.)

LINE OUTPUT SECTION:

Max Output Level (software switchable for 0 dBFS): +24 dBu / +18 dBu +0/-0.5 dB

Frequency Response (+0/-0.3dB @ fs = 48 kHz): 0 Hz " 22 kHz

Frequency Response (+0/-3dB @ fs = 96 kHz): 0 Hz " 46 kHz

Frequency Response (+0/-3dB @ fs = 192 kHz): 0 Hz " 92 kHz

Output Impedance (Differential): < 80 Ω

Dynamic Range (A-weighted, typ.): 122 dB / 124 dB

THD+N (1 kHz) @ 0 dBFS: < -117 dB (0.00014 %)

Interchannel Crosstalk @ 1kHz: < -139 dB

Connector Pinout: DB-25 / AES59 (Tascam Ana.)

Latencies:

Input Latency at 44.1/48kHz: 8 samples

Input Latency at 88.2/96kHz: 8 samples

Input Latency at 176.4/192kHz: 8 samples

Output Latency at 44.1/48kHz: 9* samples

Output Latency at 88.2/96kHz: 9* samples

Output Latency at 176.4/192kHz: 9* samples

FILTER SETTING:

Slow Roll Off Filter Option: 9 Samples

Sharp Roll Off Filter Option: 38 Samples

INCLUDES:

1x Hardware Card

Card test measurements
