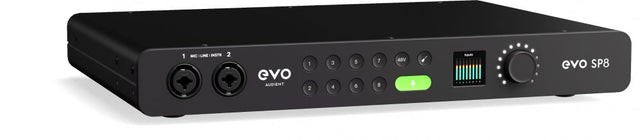

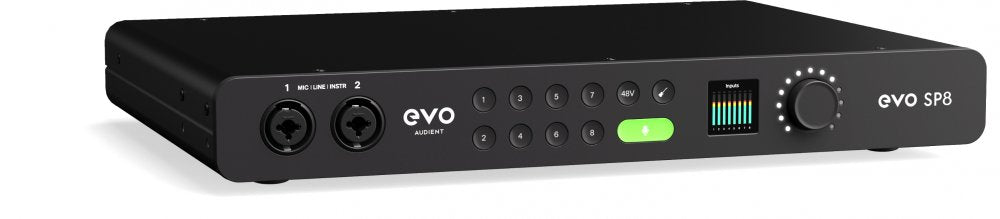

Audient EVO SP8

The ultimate studio preamp expander is here. EVO SP8 is designed to be the perfect partner for expanding your existing audio interface. Give your studio the performance and capability boost it needs, providing eight intelligent EVO Preamps that set their own levels with Smartgain, advanced AD/DA converter technology and a versatile range of I/O connectivity. Add to that two JFET instrument inputs, the all new, groundbreaking Motion UI control system and exceptional audio performance across the board. The EVO SP8 might just be the world's smartest Mic Preamp.

The perfect partner for your audio interface Bigger sessions demand more channels and expanding your existing audio interface via ADAT might be the most cost effective solution to scale up your studio. EVO SP8 provides eight mic/line inputs, eight line outputs and 2 x ADAT connections, giving you enough I/O firepower to easily tackle multi-mic sessions like recording drums, or taking on a full band.

• 8 x EVO Mic Preamps

• 2 x JFET Instrument Inputs

• 8 x Line Outputs

• 2 x ADAT Inputs

• 2 x ADAT Outputs

• Class Leading AD/DA Converters

• Multi-Channel Smartgain

• ‘EVO Motion UI' Control System

• High-Res LCD Screen

• One Knob Centralised Control

• Ultra Clear Metering

• Input/Output Control

• Channel Status Indication

• Optional Rack Ears

• Word Clock Input

• 24bit / 96kHz

MICROPHONE PREAMPLIFIER:

Mic Gain Range: 58dB

Line Gain Range: 58dB (-10dB pad)

Phantom Power: 48v +/-4v @ 10mA/Channel

Mic EIN: <-127.5dB

CMRR: >80dB @ 1kHz

Maximum Input Level: +16dBu

Input Impedance (Mic): >3kΩ Balanced

Input Impedance (Line): >10kΩ Balanced

Frequency Response: +/-0.5dB 10Hz to 40kHz

Crosstalk: <-105dBu @ 1kHz <-103 @ 10kHz

THD+N @ 0dBu (1kHz): <0.0015%

SNR: 100dB

XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I INPUTS:

D.I Gain Range: 58 dB

Maximum Input Level: +10dBu

Input Impedance: 500k

Frequency Response +/-0.5dB 10Hz to 20kHz

THD+N @ 0dBu (1kHz): <0.1%

SNR: 100dB

1/4" Jack: TIP (Hot) & SLEEVE (Shield)

ADC:

Digital Reference Level: 0dBFS = +10.5dBu

Frequency Response: +/-0.5dB 10Hz to Fs/2

Crosstalk: -125dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz): <0.001%

Dynamic Range: 112.5dB A-Weighted

LINE OUTPUTS:

Maximum Output Level: 12dBu

Digital Reference Level: 0dBFS = +12dBu

Output Impedance: <50Ω

Frequency Response: +/-0.5dB 10Hz to Fs/2

Crosstalk: <-110dBu @ 1kHz

THD+N @ -1dBFS (1kHz): <0.006%

Dynamic Range: >117dB A-weighted

1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DIMENSIONS:

Unit: 355mm (w) x 255mm (d) x 53mm (h)
