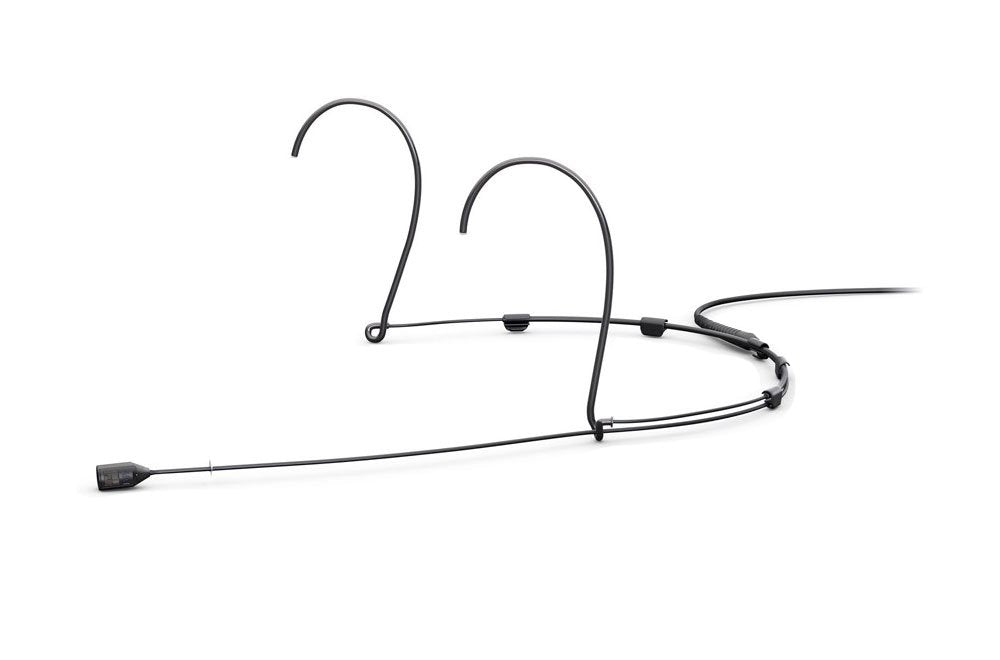

DPA 4088-DP-A-B10-LH

The 4088-DP-A-B10-LH is a black 4088 CORE+ directional headset microphone equipped with a TA4F Mini-XLR connector, making it a professional-grade solution for wireless systems that require focused vocal pickup and superior sound isolation. This cardioid headset is ideal for environments where background noise control is crucial, such as live theater, corporate presentations, and broadcast productions.

Featuring DPA's CORE+ technology, the mic offers exceptional clarity, a wide dynamic range, and minimal distortion-even at high SPLs. Its directional design ensures precise voice capture while effectively rejecting surrounding ambient noise, making it perfect for high-energy or acoustically reflective spaces. The dual-ear headset provides a secure, ergonomic fit for long periods of use, and the boom arm can be positioned on either side. Durable, discreet, and moisture-resistant, the 4088-DP-A-B10-LH delivers reliable, high-quality audio in the most demanding settings.

• Supercardioid Directional Pickup: Captures voice with precision while rejecting ambient noise-ideal for noisy or live environments.

• CORE+ Audio Technology: Delivers clean, distortion-free sound with a wide dynamic range for professional applications.

• TA4F Mini-XLR Connector: Provides a secure, reliable connection to wireless systems using TA4F input.

• Sweat and Moisture Protection: Built with water-resistant materials and a rugged design for dependable use in active settings.

• Adjustable Boom Arm: Reversible mic boom allows left or right-side placement for flexible and comfortable wear.

• Discreet Black Finish: Low-profile design ideal for stage, broadcast, and presentation use.

MODEL:

• 4088 DP A B10 LH

MICROPHONE TYPE:

• Directional headset microphone

• Cardioid polar pattern

• Pressure gradient operation principle

• Pre polarized condenser capsule

FREQUENCY RESPONSE:

• 100Hz to 20kHz

• 2 to 4dB soft boost at 10 to 12kHz

SENSITIVITY AND NOISE:

• Sensitivity 6mV per Pa minus 44dB re 1V per Pa

• Equivalent noise level A weighted typically 26dB A max 28dB A

• Equivalent noise level ITU R BS.468 4 typically 38dB max 40dB

DISTORTION AND SPL HANDLING:

• THD less than 1 percent up to 138dB SPL peak

• Max SPL at 10 percent THD 144dB SPL peak

• Dynamic range typically 111dB

IMPEDANCE AND CONNECTIVITY:

• Rated output impedance 30 to 40 ohms

• Cable drive capability up to 300 meters with DAD6001 BC XLR adapter

• Connector type TA4F Mini XLR

POWER REQUIREMENTS:

• Wireless systems 5V to 10V through DPA adapter

• With DAD6001 BC P48 phantom power or will work from 12V

• Current consumption typically 1.5mA microphone 3.5mA with DAD6001 BC

PHYSICAL SPECIFICATIONS:

• Weight 14 grams including cable and connector

• Microphone diameter: 5.4mm

• Cable length: 1.2 meters

• Cable diameter: 1.6mm

• Color: black

ENVIRONMENTAL:

• Temperature range minus 40 to 45 degrees Celsius

• Relative humidity up to 90 percent

DESIGN FEATURES:

• Detachable mic boom for left or right side configuration

• Double vent protection system with drop stopper

• Water resistant internal construction

• CORE plus technology for reduced distortion and enhanced clarity

• Microphone polarity positive pressure gives positive voltage on TA4F pin
