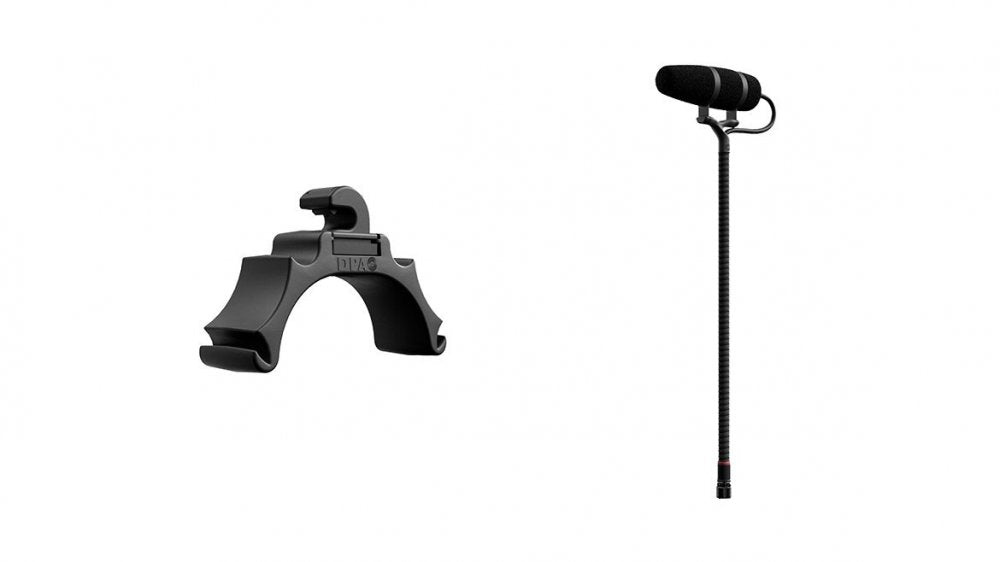

DPA 4099-DP-1-201-C

Next-generation, high-performance instrument microphone featuring CORE+ technology, delivering pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock and a series of upgraded instrument clips for even better stability and flexibility on any type of instrument.

• CORE+ technology

• High SPL handling

• Wide dynamic range

• Supercardioid pick up pattern

• Superior gain before feedback

• MicroLock connector

• IP58 certified

• Advanced, flexible clip program

GENERAL SPECIFICATIONS:

• Directional pattern: Supercardioid

• Principle of operation: Pressure gradient

• Cartridge type: Pre-polarized condenser

• Colors: Black

FREQUENCY RESPONSE:

• Frequency response: 20 Hz " 20 kHz

• Effective frequency range (±2 dB at 20 cm / 7.9 in): 80 Hz " 17 kHz with 2 dB soft boost at 10"12 kHz

SENSITIVITY & NOISE:

• Sensitivity (nominal, ±3 dB at 1 kHz): 6 mV/Pa; -44 dB re. 1 V/Pa

• Sensitivity selection tolerance (at 1 kHz): ±1 dB

• Equivalent noise level (A-weighted): Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

DISTORTION & SOUND PRESSURE LEVEL:

• Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak

• Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak

• Max. SPL, THD 10%: 145 dB SPL peak

• Dynamic range: Typ. 118 dB

ELECTRICAL SPECIFICATIONS:

• Rated output impedance: 30 " 40 Ω (MicroLock), 100 Ω (DAD9099 or DAD9001)

• Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter

• Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter

• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR

ADAPTER:

• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)

POWER REQUIREMENTS:

• Power supply (for full performance): 5 V " 10 V through DPA adapter (wireless), P48 or 12 V via DAD9001 or DAD9099

• Current consumption: Typ. 1.5 mA (microphone), 3.5 mA with DAD9099 or DAD9001 XLR Adapter

MECHANICAL SPECIFICATIONS:

• Connector: MicroLock

• Microphone diameter: 5.7 mm (0.22 in)

• Microphone length: 50 mm (1.97 in)

• Cable length: 1.8 m (5.9 ft) (not included with 4099-DP-1 and 4099-DP-2)

• Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)

• Gooseneck length: 140 mm (5.5 in)

ENVIRONMENTAL SPECIFICATIONS:

• Operating temperature range: -40C to 45C (-40F to 113F)

• Relative humidity (RH): Up to 90%

WEIGHT:

• Microphone: 18 g (0.63 oz)

• Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz)

• Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz)

• Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)

• Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz)

• Universal Microphone Clip (U-CLIP): 15 g (0.53 oz)

• Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)

• Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)

• Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)

• Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)

• Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
