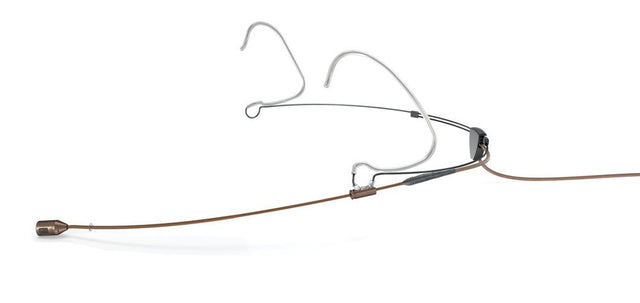

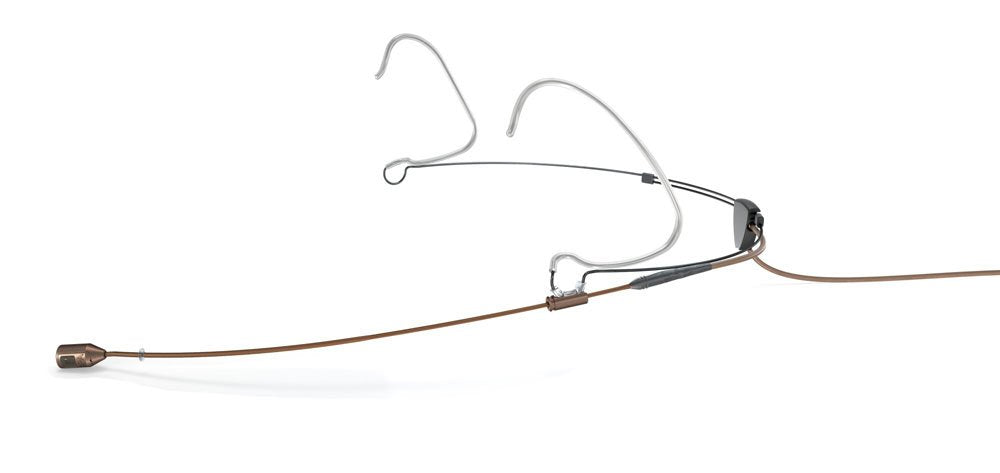

DPA 4488-DP-R-C90

The DPA 4488 CORE+ Directional Headset Microphone (4488-DP-R-C90) in brown delivers an elegant, low-profile solution for demanding vocal applications in live, broadcast, and theater environments. With its discreet 5mm cardioid capsule and MicroLock connector, it offers both premium audio performance and robust connection flexibility. Designed for voice professionals who need superior speech intelligibility and noise rejection, this headset excels in noisy environments by focusing capture on the speaker while minimizing feedback and off-axis noise.

Its one-size-fits-all, stainless steel headset frame is coated with a non-reflective PVD finish for durability and visual subtlety. The adjustable three-point ear grip system ensures a secure and comfortable fit, even for long sessions, while the dual-position boom arm provides optimal placement flexibility. Built to handle up to 144 dB SPL with CORE+ technology minimizing distortion, the 4488 delivers pristine, natural sound reproduction whether you're speaking or singing. Ideal for presenters, performers, and AV professionals who value both sonic clarity and long-lasting comfort.

• High-quality cardioid headset mic ideal for speech, vocals, and performance in noisy environments

• CORE+ technology delivers ultra-low distortion and high clarity, even at loud SPLs

• Directional capsule helps reject background noise and minimize feedback

• One-size-fits-all headset with secure 3-point grip for stable, comfortable wear

• Flexible boom arm with anti-rotation and locking system ensures perfect mic placement

• Boom is reversible for left or right side use

• Non-reflective, durable PVD-coated stainless steel frame

• Discreet 90 degree cable guide for clean cable routing

• MicroLock connector compatible with various adapters for wireless transmitters

GENERAL SPECIFICATIONS:

• Product ID: 4488-DP-R-C90

• Microphone type: Pre-polarized condenser

• Directional pattern: Cardioid

• Operating principle: Pressure gradient

• Frequency response: 20 Hz - 20 kHz

• Effective frequency range: 100 Hz " 20 kHz (4 - 6 dB soft boost at 15 kHz)

• Sensitivity: 6 mV/Pa or -44 dB re 1 V/Pa

• Equivalent noise level (A-weighted): Typ. 26 dB(A), Max. 28 dB(A)

• Equivalent noise level (ITU-R BS.468-4): Typ. 38 dB, Max. 40 dB

• Max SPL (THD <1%): 134 dB SPL RMS, 137 dB SPL peak

• Max SPL (THD 10%): 144 dB SPL peak

• Dynamic range: Typ. 111 dB

• Output impedance: 30 - 40 ohm

• Cable drive capability: Up to 300 m with DAD6001-BC

• Power requirements: 5 - 10 V via DPA adapter, P48 with DAD6001-BC (12 V minimum)

• Current consumption: 1.5 mA mic only, 3.5 mA with DAD6001-BC

CONNECTIVITY AND PHYSICAL DETAILS:

• Connector: MicroLock

• Cable length: 1.3 m (4.3 ft)

• Cable diameter: 1.6 mm (0.06 in)

• Microphone diameter: 5.4 mm (0.21 in)

• Weight: 12 g including cable and connector

• Polarity: Positive pressure = positive voltage on MicroDot pin

• Temperature range: -40 degree C to 45 degree C (-40 degree F to 113 degree F)

• Relative humidity tolerance: Up to 90%

• Color: Brown

MECHANICAL AND DESIGN FEATURES:

• Frame: One-size-fits-all stainless steel with PVD coating

• Boom: Two-way adjustable for length and angle; lockable with anti-rotation mechanism

• Boom detachment: Switchable for right or left side

• Ear grips: 3-point design (above, below, and behind the ear)

• Cable guide: 90 degree adjustable, slides laterally to keep out of view

• Application focus: Stage, broadcast, live performance, and theater

• Acoustic performance: CORE+ technology reduces distortion across full dynamic range

• Off-axis rejection: High, due to directional capsule design

• Bass response: Optimized for close placement for full-bodied sound
