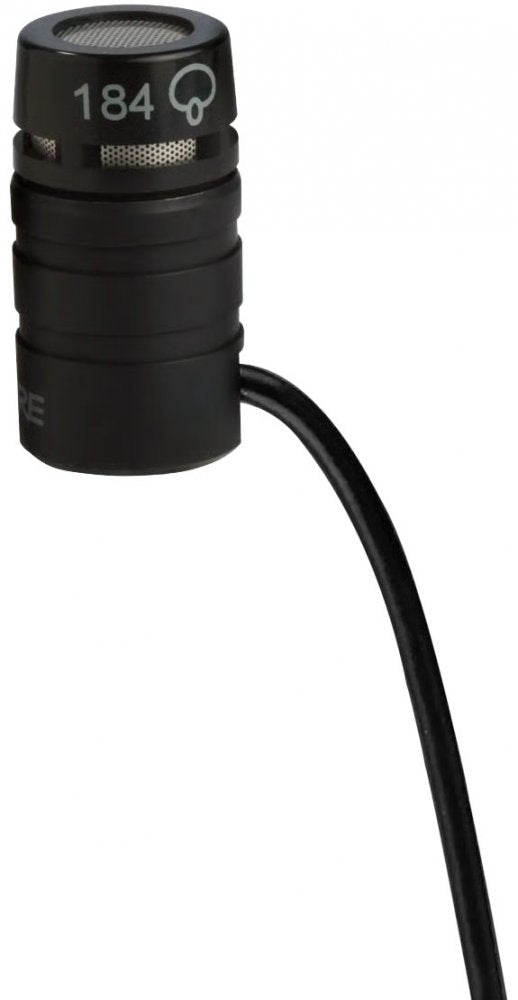

Shure MX184

The Shure MX184 is a wired lavalier electret condenser microphone designed specifically for clear and focused vocal pickup in settings where ambient noise rejection is essential. This model features a supercardioid polar pattern, which gives it a narrow pickup angle (115) and high off-axis noise rejection"ideal for applications like public speaking, presentations, broadcast, and live performance where background noise can be a concern. Its small form factor allows it to clip easily to clothing like lapels and ties, and it includes a rotatable tie-clip for flexible placement.

What sets the MX184 apart is its ability to deliver clean, intelligible audio with reduced ambient interference. It has a wide frequency response (50 Hz to 17 kHz) and is supplied with a snap-fit foam windscreen, which helps control breath noise and plosive sounds. The microphone also offers a balanced, transformerless output to minimize signal degradation over long cable runs. It's powered via 11"52 VDC phantom power and comes equipped with a 1.2-meter shielded cable terminated with a 4-pin female mini connector (TA4F) for integration with wireless bodypacks or other systems.

• Focused voice pickup: Captures sound from the front while rejecting surrounding noise for clearer speech.

• Supercardioid design: Provides a narrow pickup angle, ideal for use in noisy environments.

• Clips to clothing: Easily attaches to lapels, ties, or other garments for hands-free use.

• Flexible positioning: Rotating clip allows the microphone to pivot in 90 increments.

• Noise-reducing windscreen: Comes with a foam windscreen to minimize breath and wind noise.

• Interchangeable capsule: Cartridge can be swapped out to suit different recording needs.

• Reliable for long cables: Balanced, transformerless output reduces noise over extended cable runs.

• Dual-mic support: Includes a clip that can hold two microphones if needed for redundancy or dual recording setups.

GENERAL SPECIFICATIONS:

• Microphone Type: Electret condenser

• Application: Speech, vocal pickup, sound reinforcement, recording, remote monitoring

• Mounting: Lavalier (clip-on)

• Pickup Pattern: Supercardioid

• Pickup Angle ("3 dB): 115

• Rotatable tie clip (90 increments)

• Snap-fit foam windscreen included

• Supplied dual tie clip for dual mic use

AUDIO SPECIFICATIONS:

• Frequency Response: 50 Hz - 17,000 Hz

• Open Circuit Sensitivity (1 kHz, ref. 1V/Pa): "33.5 dB (21.1 mV)

• Maximum SPL (1 kHz @ 1% THD, 1 kilo ohm load): 122.7 dB

• Equivalent Output Noise (A-weighted): 26.5 dB SPL

• Signal-to-Noise Ratio (ref. 94 dB SPL): 67.5 dB

• Dynamic Range (at 1 kilo ohm load): 96.2 dB

• Output Impedance: 150 ohms (EIA rated), 180 ohms actual

• Common Mode Rejection: ≥ 45.0 dB

ELECTRICAL SPECIFICATIONS:

• Power Requirements: 11 to 52 V DC phantom power, 2.0 mA

• Polarity: Positive pressure on diaphragm yields positive voltage on pin 2 (XLR output)

PHYSICAL SPECIFICATIONS:

• Cable: Shielded, 1.2 m (4 ft.), terminated with TA4F (4-pin female mini connector)

• Dimensions: Body Length: 99 mm (3.89 in.), " Body Diameter: 19"22 mm (0.75"0.85 in.), " Microphone Diameter: 12 mm (0.46 in.)

ENVIRONMENTAL SPECIFICATIONS:

• Operating Temperature: "18C to 57C (0F to 135F)

• Storage Temperature: "29C to 74C ("20F to 165F)

COMPLIANCE & ACCESSORIES:

• CE Marking: Yes

• Complies with: EMC Directive 89/336/EEC, EN55103 (1996), Parts 1 and 2

• Replacement Cartridge: R184B

• Preamp Kit (Phantom): RK183PK

• Battery/Phantom Preamp: MX1BP

• Windscreens: RK183WS, RK261WS

• Tie Clips: RK183T1 (single), RK183T2 (dual)

• Connector Replacement: WA330

• Cable Replacement: C122
