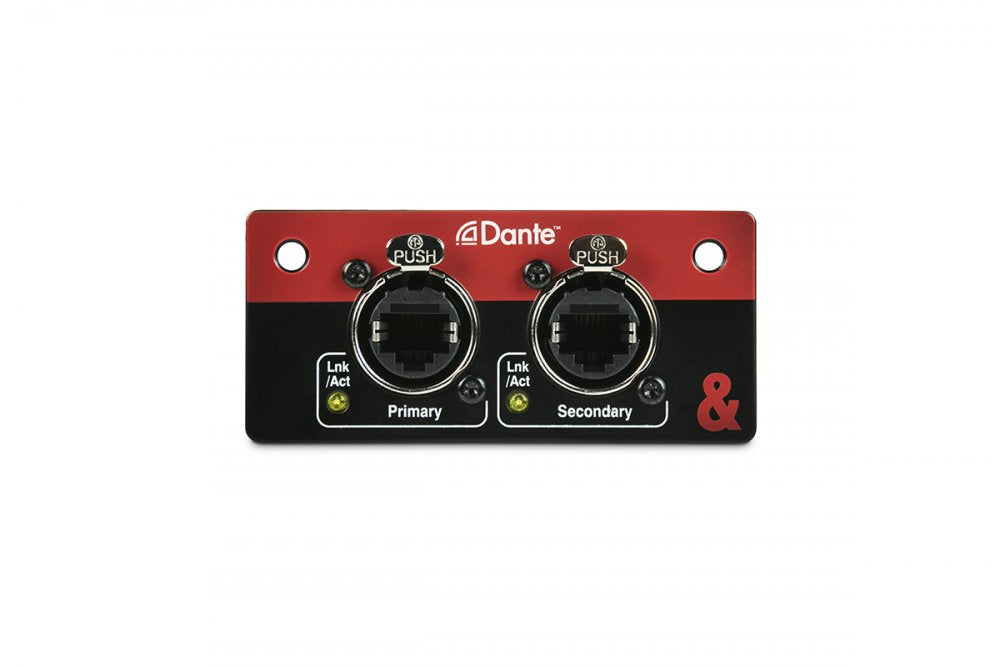

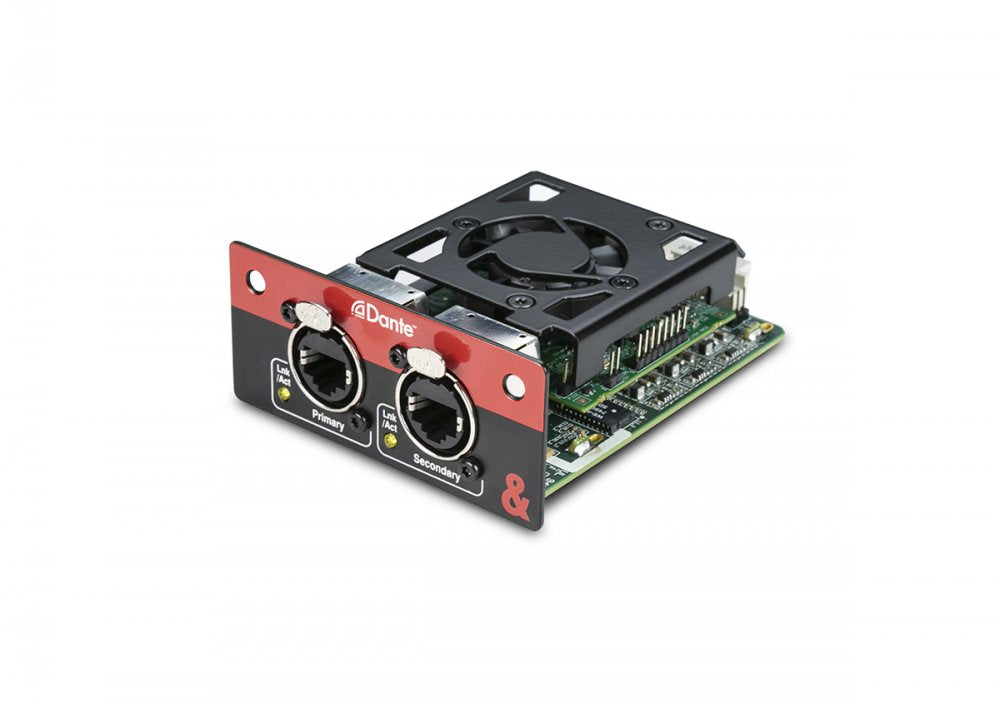

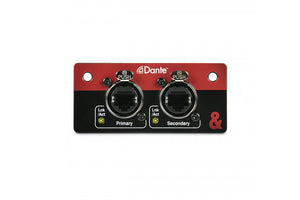

Allen & Heath SQ-Dante

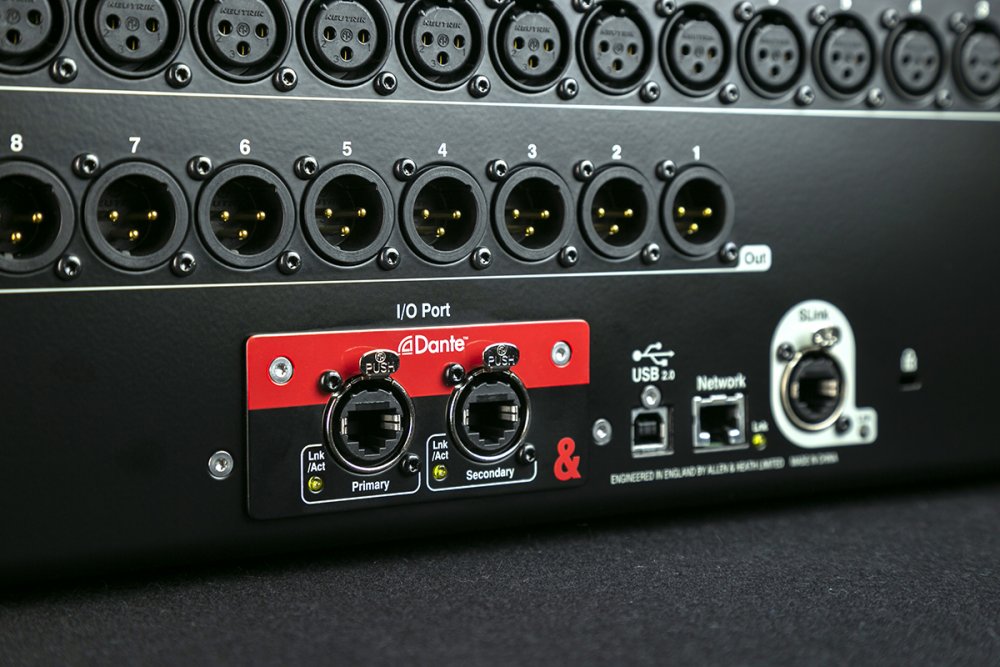

SQ Dante provides any SQ mixer or AHM processor with a full 64-64 channel, 96kHz or 48kHz interface to a Dante network. An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of SQ's high resolution 96kHz audio. The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.

V2 - AHM Compatible SQ Dante V2 shares all the features and specifications of the V1 module, with no differences for SQ users*, but the V2 module can also be fitted and used in an AHM matrix processor.

*SQ firmware V1.5 or higher required.

• 64-64 channel audio and control over a network

• 96kHz or 48kHz operation

• Multichannel recording / playback using Dante Virtual Soundcard (available separately)

• Two ports with redundant and switch modes

• Internal Control Network Bridge

• Locking Ethercon connectors

• Dante Domain Manager ready

• AES67 compatible

• V1 compatible with SQ

• V2 compatible with SQ (V1.5+) and AHM-64

• Channels: 64x64 channels of audio and control over a Dante network

• Sample Rates: Switchable between 96kHz and 48kHz operation to accommodate different Dante network configurations

• Ports: Two locking EtherCon connectors supporting redundant and switch modes for reliable network connectivity

• Compatibility: Integrates with Allen & Heath SQ series mixers and AHM-64 audio processors; Dante Domain Manager ready and AES67 compatible

• Multichannel Recording: Supports multichannel recording and playback using Dante Virtual Soundcard (available separately)

• Control Network Bridge: Internal control network bridge facilitates streamlined system integration

• Applications: Enables seamless connection to DT expanders, wireless systems, amplifiers, preamps, and other devices on a Dante network; suitable for digital splits and multitrack recording directly to a computer
