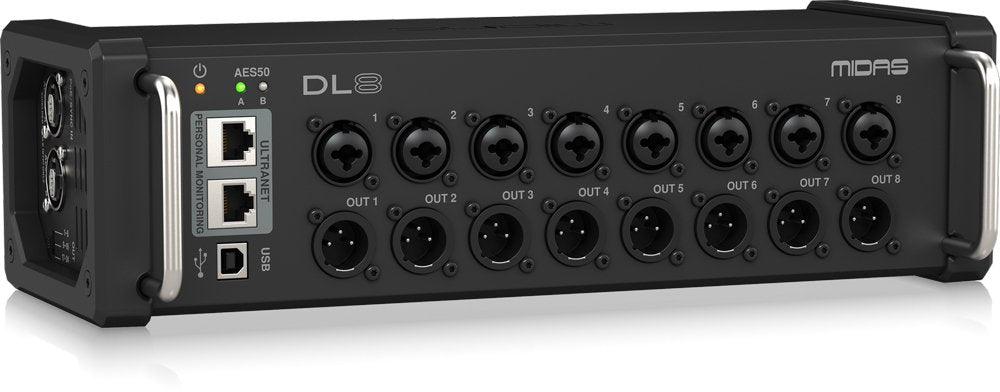

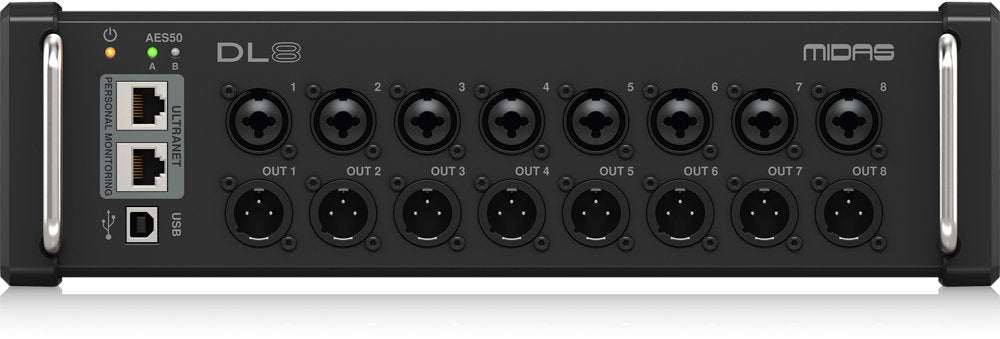

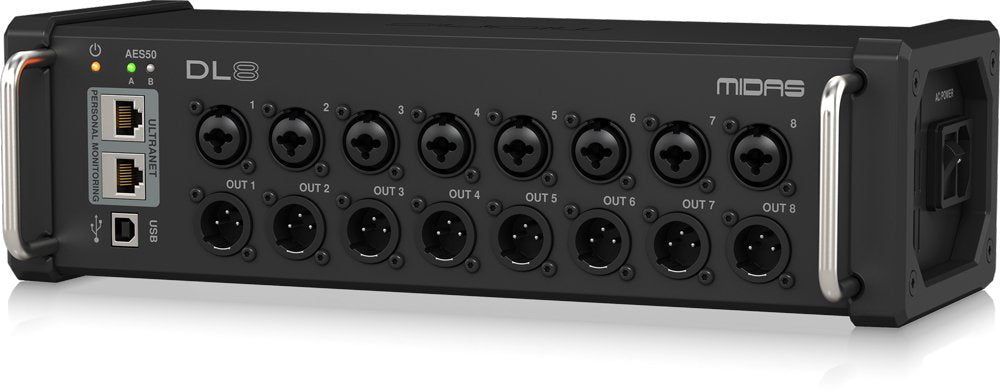

Midas DL8

The DL8 Stage Box provides 8 of our award-winning Midas PRO microphone preamplifiers with switchable +48 V phantom power; 8 electronically balanced low impedance line level; integrated ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems; plus dual AES50 SuperMAC ports for cascading additional StageBoxes.

• High-Quality Audio Inputs: Provides multiple channels for connecting various audio sources.

• Remote Control Capability: Allows for convenient management of audio settings from a distance.

• Seamless Integration: Easily connects with other Midas digital consoles and equipment.

• Durable Design: Built to withstand the demands of professional audio environments.

GENERAL SPECIFICATIONS:

• 8 input channels

• 8 output channels

• 8 Midas microphone preamplifiers

• ULTRANET and ADAT interfaces

CONNECTIVITY:

• Dual AES50 SuperMAC ports for cascading additional stage boxes

• ULTRANET personal monitoring system connectivity

• Dual ADAT outputs providing 16-channel digital output

DESIGN:

• 2U rackmount chassis

• Neutrik etherCON AES50 and ULTRANET network ports

CONTROL AND MONITORING:

• Remote operation via shielded CAT5e cable up to 100 meters

• All settings programmable from front panel controls or console

• Headphones output assignable to any of the inputs or outputs for on-stage monitoring

• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
