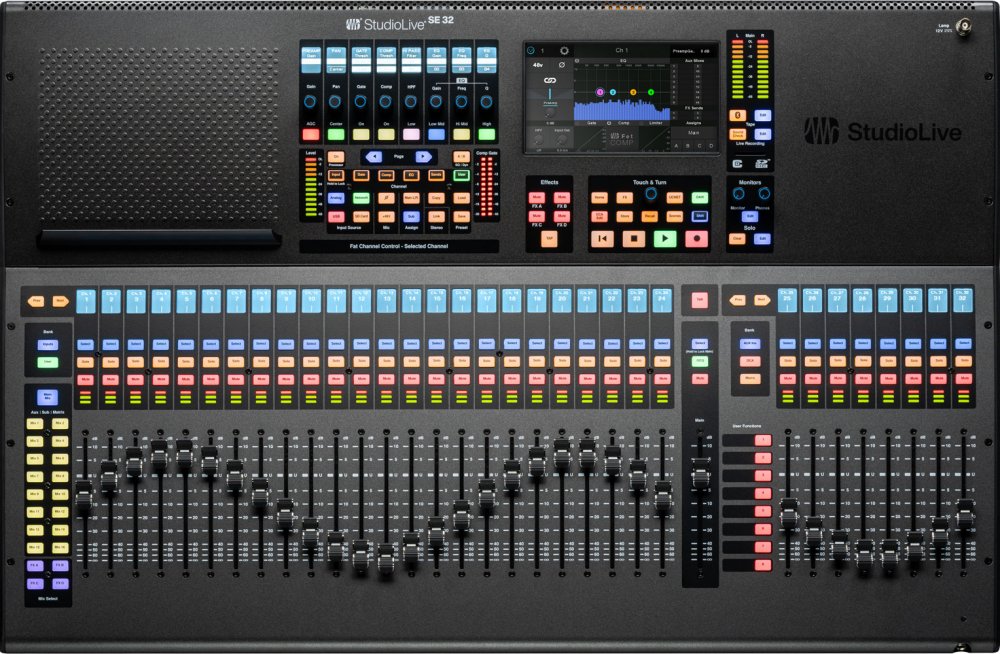

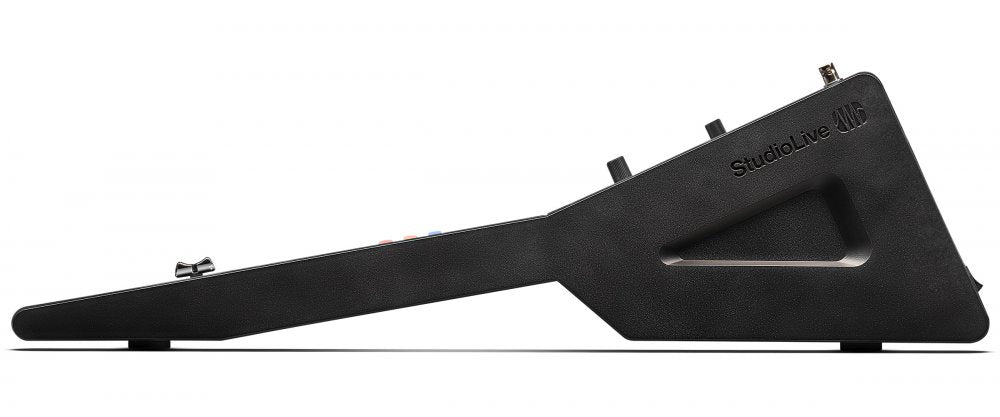

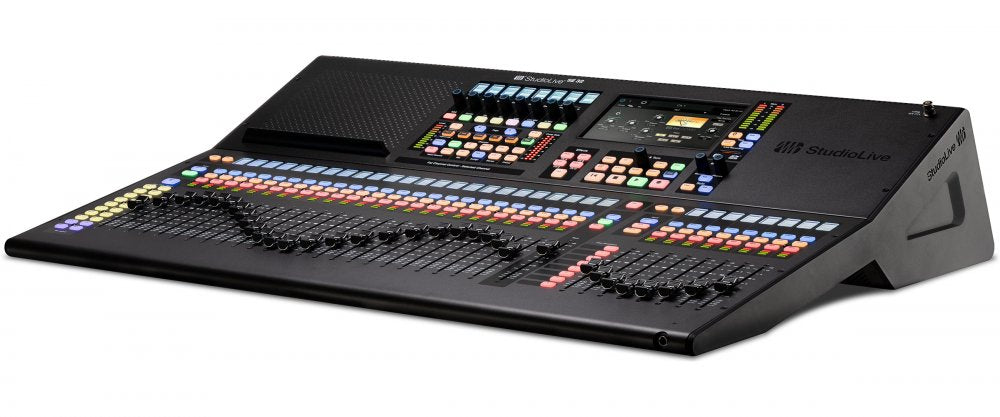

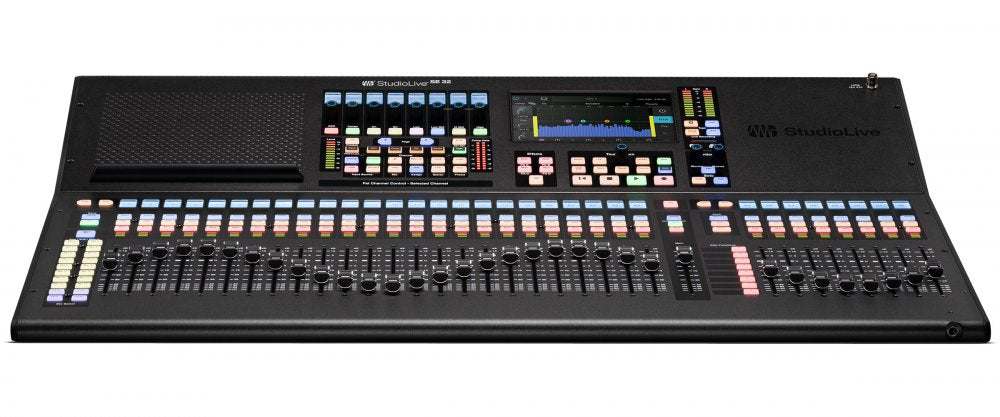

Presonus StudioLive SE 32

The StudioLive Series III SE 32 Digital Console Mixer is a flagship 40-channel, 26-bus mixing console built for professional touring, broadcast, and install applications. With 33 touch-sensitive motorized faders, a 64x64 USB audio interface, and Milan-certified AVB networking, it delivers unmatched control, versatility, and pristine audio quality in a full-sized one-to-one channel layout. Seamlessly integrated with Studio One Pro and Capture software, it offers one-click Virtual Soundcheck, onboard SD multitrack recording, and real-time streaming capabilities-all directly from the console.

The dual-core FLEX DSP Engine powers studio-grade signal processing, including 8 vintage-modeled compressors and 7 EQs from the Fat Channel Collection, alongside four dedicated effects buses and extensive reverb parameters. Featuring 33 XMAX-Remote preamps, 16 FlexMixes, and built-in Bluetooth audio input, the SE 32 is optimized for modern workflows. Control every detail from anywhere using Metro remote access, Universal Control, or QMix-UC, giving both engineers and performers intuitive command over their mixes. For high-performance environments that demand total integration and control, the StudioLive SE 32 stands at the top of its class.

• Full 32-Channel Motorized Mixer: 40-channel, 26-bus mixer with 33 touch-sensitive motorized faders in a full one-to-one layout for hands-on control.

• Integrated Multitrack Recording & Streaming: Capture every input via 64x64 USB interface or onboard SD recorder; includes one-click Virtual Soundcheck with Capture.

• Premium Sound Quality: Features 33 XMAX-Remote preamps, 32-bit floating-point DSP, and 115 dB A/D"D/A converters for pristine studio-grade audio on stage.

• AVB Networking with Milan Certification: Seamlessly integrates with StudioLive Stage Boxes and Milan-compatible gear for advanced networked audio.

• Advanced Fat Channel Processing: Includes all 7 EQs and 8 compressors modeled after classic hardware, plus dynamic visual control and flexible reverb options.

• Built-In Bluetooth Input: Wirelessly stream break music or reference tracks directly to the console.

• Remote Mixing from Anywhere: Use Metro for remote access, Universal Control for local devices, and QMix-UC for personal monitor mixing.

• Powerful Routing Options: 16 FlexMixes, 4 subgroups, 4 effects buses, and 24 DCAs support custom mix configurations.

• User-Friendly Workflow Design: High-contrast display, ergonomic layout, and redesigned fader caps provide intuitive control during long sessions.

• Professional Software Included: Comes with Studio One Pro DAW and Capture software for a complete recording and mixing ecosystem.

GENERAL SPECIFICATIONS:

• Product Name: StudioLive Series III SE 32 Digital Console Mixer

• Series: StudioLive

• SKU: 2779200310

• Color: Black

• Weight: 37.2 lbs

• Dimensions: 32.37 in W x 22.97 in D x 6.51 in H

• Power Consumption: 85 W

• Voltage Requirements: 100 to 230 VAC 50 to 60 Hz

• Operating Temperature: 0 to 40 Celsius

MIXING AND PROCESSING:

• Total Channels: 40

• Total Buses: 26

• FlexMixes: 16 configurable as auxes subgroups or matrix

• DCAs: 24

• Subgroups: 4

• Motorized Faders: 33 touch sensitive

• DSP Engine: 32 bit floating point dual core FLEX

• AD and DA Converters: 115 dB dynamic range

• Total System Latency: 1.9 ms

• Internal Bit Depth: 32 bit

• Digital Audio Bit Depth: 24 bit

• Reference Level for 0 dBFS: plus 18 dBu

• Crosstalk Adjacent Channels: minus 87 dB

AUDIO I/O:

• XMAX Remote Preamps: 33

• Microphone Input: XLR female balanced

• Mic Input Impedance: 1 kOhm

• Mic Gain Range: 0 to 60 dB

• Mic Max Input Level: plus 12 dBu

• Mic SNR: 94 dB

• Mic THD: less than 0.005 percent

• Line Input: 1/4 in TRS female balanced

• Line Input Impedance: 10 kOhm

• Line Input Max Level: plus 18 dBu

• Line Input SNR: 94 dB

• Line Input THD: less than 0.005 percent

• Line Output: 1/4 in TRS female balanced

• Line Output Max Level: plus 18 dBu

• Line Output Impedance: 100 ohms

• XLR Output Max Level: plus 24 dBu

• XLR Output Impedance: 100 ohms

• Tape I/O: RCA stereo unbalanced

• Tape In Max Level: plus 12 dBu

• Tape Out Max Level: plus 18 dBu

• Tape Output Impedance: 100 ohms

• Headphone Output: 1/4 in TRS stereo

• Headphone Max Output: 100 mW per channel at 60 ohms

• Headphone Frequency Response: 20 Hz to 20 kHz

• Headphone SNR: 96 dB

• Headphone THD: 0.01 percent

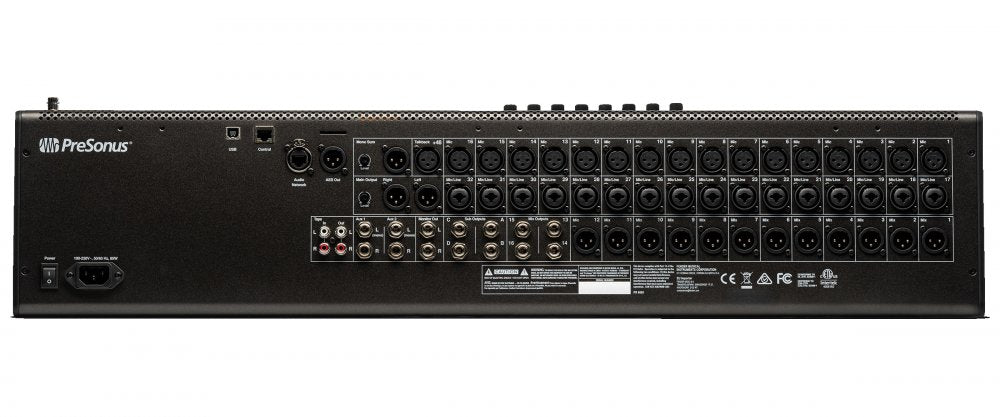

DIGITAL CONNECTIVITY:

• USB Interface: USB 2.0 Type B

• USB Audio Channels: 64 x 64

• AVB Network Ports: Neutrik etherCONN

• Network Control Port: RJ45

• Bluetooth Input: Version 4.1 Stereo

• AES EBU Output: XLR male

RECORDING AND STORAGE:

• Onboard SD Recorder: WAV format

• SD Bit Depth: Record 24 bit Playback 16 or 24 bit

• SD Sample Rates: 44.1 and 48 kHz

• Media Format: FAT16 SD and FAT32 SDHC

• SD Storage: SD card 2 GB SDHC card up to 32 GB

SOFTWARE INTEGRATION:

• Included Software: Studio One Pro Capture

• Virtual Soundcheck: One click with Capture

• DAW Compatibility: Studio One Pro and major DAWs

• Remote Control: Metro suite Universal Control app

• Personal Monitor Mixing: QMix UC

AUDIO PROCESSING FEATURES:

• Fat Channel: 8 compressors and 7 EQ models

• Modeled Processors: Brit Comp FC 670 Tube EQ

• Reverb: XL presets with advanced parameters

• Customization: Scribble strip displays dynamic interface

CONTROL AND INTERFACE:

• Display: High contrast ergonomic flat screen

• Fader Caps: Redesigned for comfort and visibility

• Control Access: Routing levels processing from any location via Metro or mobile devices
