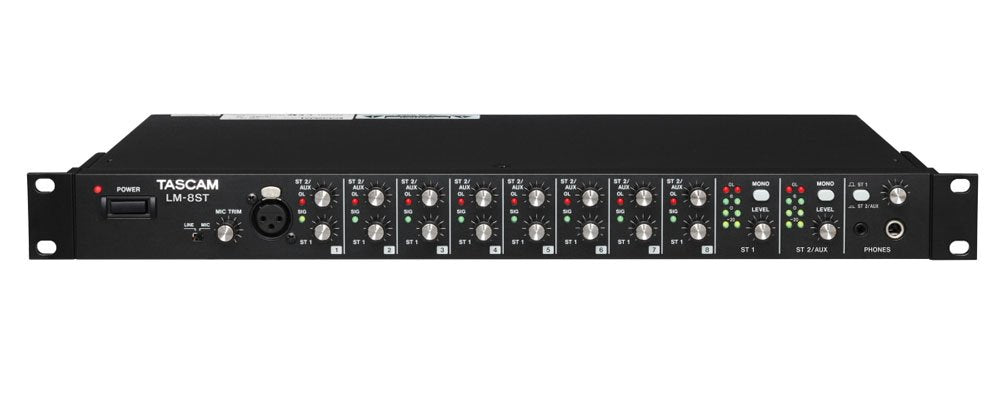

Tascam LM-8ST

The TASCAM LM-8ST is a compact yet powerful 8-channel stereo line mixer designed for demanding audio setups in live performance, commercial installations, and studio sub-mixing. Housed in a single-rack unit, it delivers professional-level flexibility with eight stereo TRS balanced inputs-each with individual level controls and switchable -10dB/+4dB sensitivity-alongside a dedicated mic input with front-panel trim control for announcements or vocal monitoring.

Perfect for venues, houses of worship, broadcast environments, or on-stage keyboard rigs, the LM-8ST features dual stereo output busses for creating separate mixes. Each output includes both balanced XLR and unbalanced RCA connectors. A built-in stereo cascade loop allows easy expansion when more channels are needed, while the headphone monitoring section includes both 1/4" and 1/8" jacks. From its rugged build to intuitive layout, the LM-8ST is built to simplify complex routing without sacrificing sound quality or reliability.

• 8 Stereo Input Channels: Balanced 1/4" TRS inputs per channel with "10/+4dB level switch for flexible source handling.

• Mic Input with Trim Control: XLR mic input on Channel 1 for announcements or single mic setups-ideal for stage or PA use.

• Dual Stereo Output Busses: Two independent mix busses (ST1 and ST2/AUX) with XLR and RCA outputs to route separate mixes.

• Flexible Routing Options: Each channel can be routed to ST1 or ST2/AUX, either pre- or post-fader-great for sub-mixing or effects sends.

• Headphone Monitoring: Dedicated 1/4" and 1/8" headphone outputs with individual level control for convenient monitoring.

• Cascade Ready: Buss input/output lets you expand the system by connecting multiple LM-8ST units.

• Visual Metering: Every input channel features a 2-segment LED level meter for quick signal checks.

• Compact and Rack-Ready: 1U rackmount design makes it ideal for installations, live rigs, or studio submixing.

GENERAL SPECIFICATIONS:

• 8 stereo channel 4-buss line mixer

• 8 stereo 1/4 inch TRS balanced inputs with -10 dB or +4 dB switch

• Mic input with trim control on front panel

• ST1 and ST2 AUX level control per channel

• ST1 and ST2 AUX master level controls

• Each channel switchable to ST2 pre-fader or AUX post output

• 2-segment LED meter per channel

• 1U rack mountable

• Ground lift switch and terminal

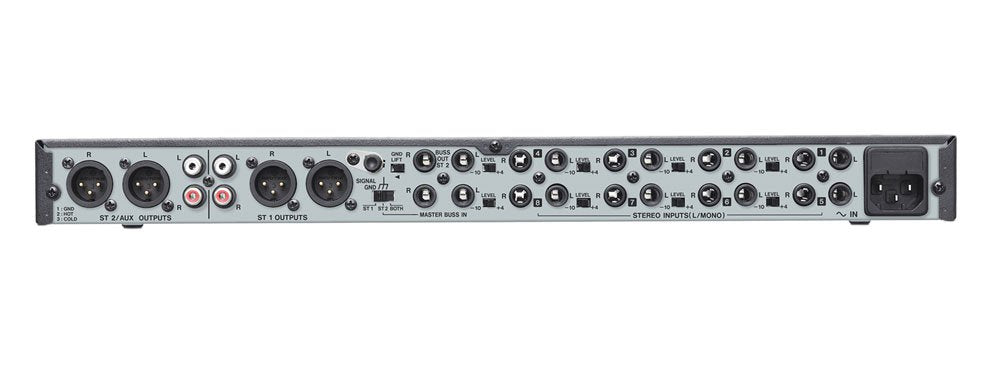

INPUTS:

• Mic In: XLR-3-31 x1, impedance 2.4 kOhms, -58 dBu to -12 dBu nominal, +10 dBu max

• Stereo In: 1/4 inch TRS jack x8 pairs, impedance 16 kOhms, +4 dBu nominal, +24 dBu max

• Master Buss In: 1/4 inch TRS jack x1 pair, impedance 16 kOhms, +4 dBu nominal, +24 dBu max

OUTPUTS:

• ST1 ST2 AUX Out (XLR): XLR-3-32 x2 pairs, impedance 94 Ohms, +4 dBu nominal, +24 dBu max

• ST1 ST2 AUX Out (RCA): RCA pin jack x2 pairs, impedance 200 Ohms, -10 dBu nominal, +10 dBu max

• Buss Out: 1/4 inch TRS jack x1 pair, impedance 94 Ohms, +4 dBu nominal, +24 dBu max

• Phones Out: 1/4 inch stereo phone jack x1, 250 mW + 250 mW (32 Ohms)

AUDIO PERFORMANCE:

• Frequency Response: Phones Out: 20 Hz to 50 kHz +/-3 dB, Buss Out: 10 Hz to 100 kHz +/-3 dB

• S/N Ratio: Phones Out: 80 dB or greater A-weighted, Buss Out: 80 dB or greater A-weighted

• THD: Phones Out: 0.07 percent or less, Buss Out: 0.03 percent or less

• Channel Separation: Phones Out: 50 dB or greater, Buss Out: 70 dB or greater

• Crosstalk (Buss Out): 65 dB or greater

POWER:

• Power Supply: AC 100 to 240 V, 50/60 Hz

• Power Consumption: 15 W

PHYSICAL:

• Dimensions: 482 mm x 44 mm x 280 mm

• Weight: 3.8 kg

INCLUDED ITEMS:

• LM-8ST

• Power cord

• Rackmount screw kit

• Warranty card

• Owner's manual
