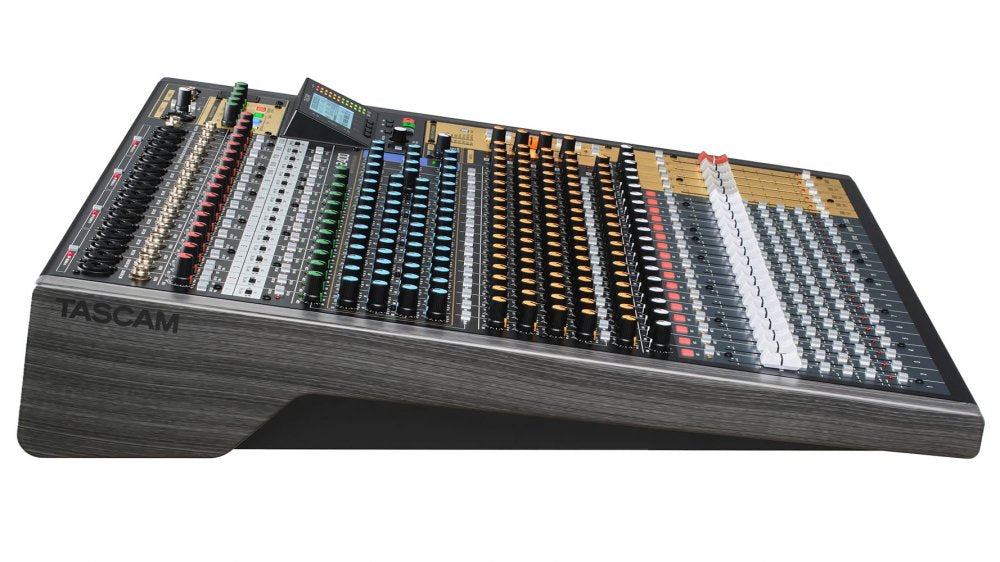

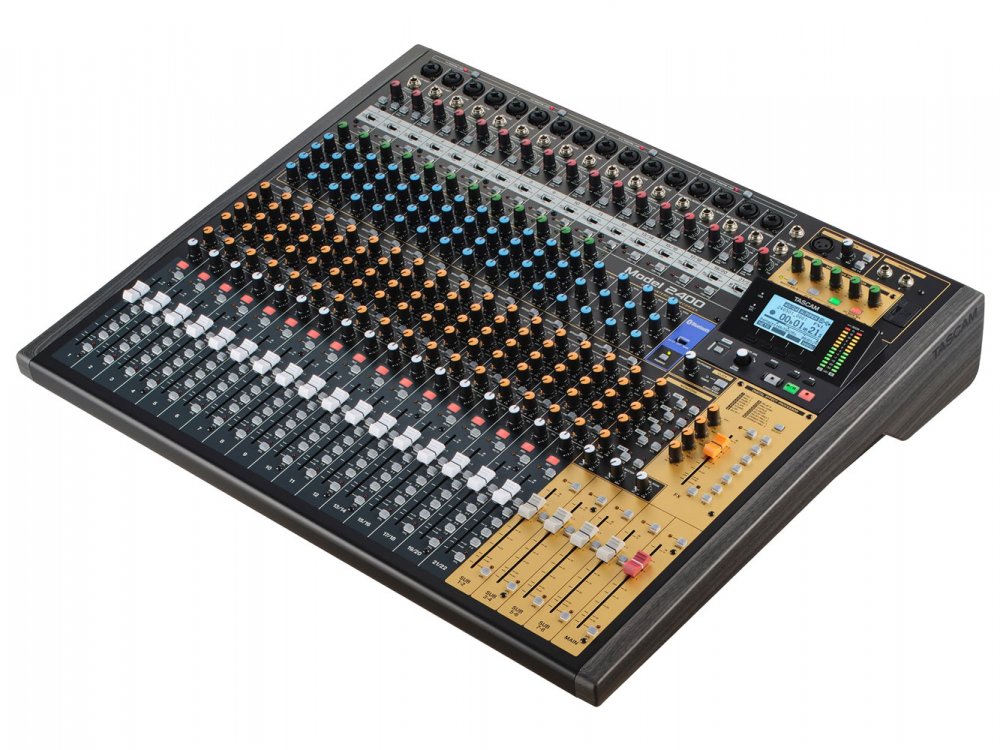

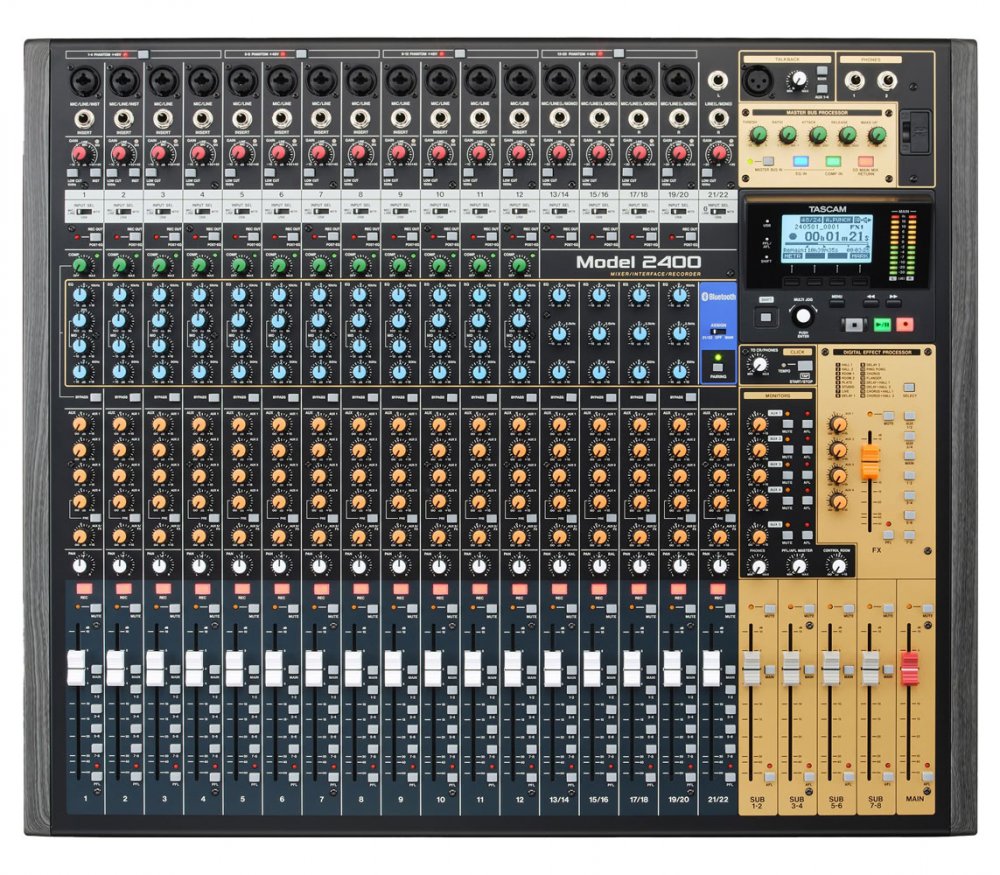

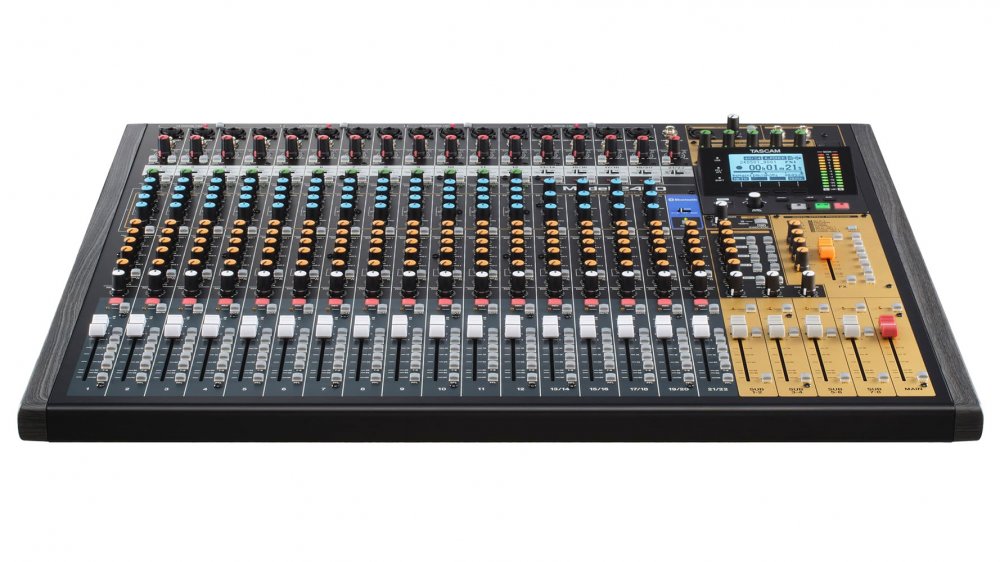

Tascam Model2400

The TASCAM Model 2400 redefines studio and live production with its all-in-one analog recording console, live mixer, and USB audio interface. With 22 analog input channels, 24-track SD card recording, and 24-in/22-out USB interface capabilities, this flagship unit effortlessly bridges performance and production, making it ideal for musicians, engineers, and creators working in dynamic environments.

Harnessing the renowned TASCAM Ultra HDDA mic preamps, the Model 2400 delivers pristine analog warmth and clarity, supported by onboard compression (channels 1-12), 3-band EQs, and selectable routing for precise control. Input inserts on channels 1-12 and main outputs allow seamless integration of external processors, while five aux sends and four stereo subgroups offer flexible routing for monitoring and effects. Whether you're tracking live performances or mixing in the studio, the Model 2400 provides a tactile, DAW-integrated workflow with transport control via HUI/MCU and a full-featured settings panel with digital metering.

• All-in-One Studio & Live Solution: Combines analog mixing, multitrack recording, and a USB audio interface in one unit.

• 24-Track SD Recorder: Records 22 channels plus stereo mix directly to SD card with punch-in/out support.

• Built-in 24x22 USB Audio Interface: Multichannel recording and playback with seamless DAW integration.

• 22 Input Channels with 16 HDDA Mic Preamps: Includes one-knob compressors on channels 1-12 and input inserts for external gear.

• Multiple Output Options: Offers 5 aux sends (4 aux + internal FX), 4 stereo subgroups, and balanced main outs.

• Powerful Mixing Tools: Includes onboard channel EQ, compression, master bus EQ/compression, and 100mm faders.

• Full DAW Control: Supports DAW transport and recording controls via HUI/MCU protocol.

• Flexible MIDI Features: Includes MIDI in/out for syncing and USB MIDI interface capability.

• Professional Effects & Monitoring: Built-in reverb, delay, chorus, flanger, and metering app with customizable display.

• Bluetooth Input: Stream audio directly with support for AAC and SBC codecs.

• Ready for Studio or Stage: Designed for orchestras, ensembles, or bands needing versatile analog and digital workflows.

GENERAL:

• Product Type: 24 track analog recording console and live mixer with audio interface

• Channels: 22 analog input channels

• Tracks: 24 tracks (22 input channels plus stereo master)

• Audio Interface: 24 in / 22 out USB

• Dimensions: 680.5 mm W x 132.5 mm H x 568.0 mm D

• Weight: 14.0 kg

• Power: AC 100 to 240V 50 or 60 Hz

• Power Consumption: 65W

• Operating Temperature: 0 to 40 degrees Celsius

INPUTS:

• Mic Preamps: 16 channels with TASCAM Ultra HDDA

• Input Type: XLR or TRS combo jack

• Phantom Power: +48V in groups of 4 channels

• Channels 1-12: One knob compressor

• Inserts: Channels 1-12 and Main L/R

• Instrument Inputs: Channels 1-2

• Line Inputs: Channels 1-22

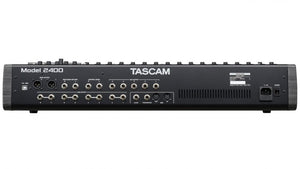

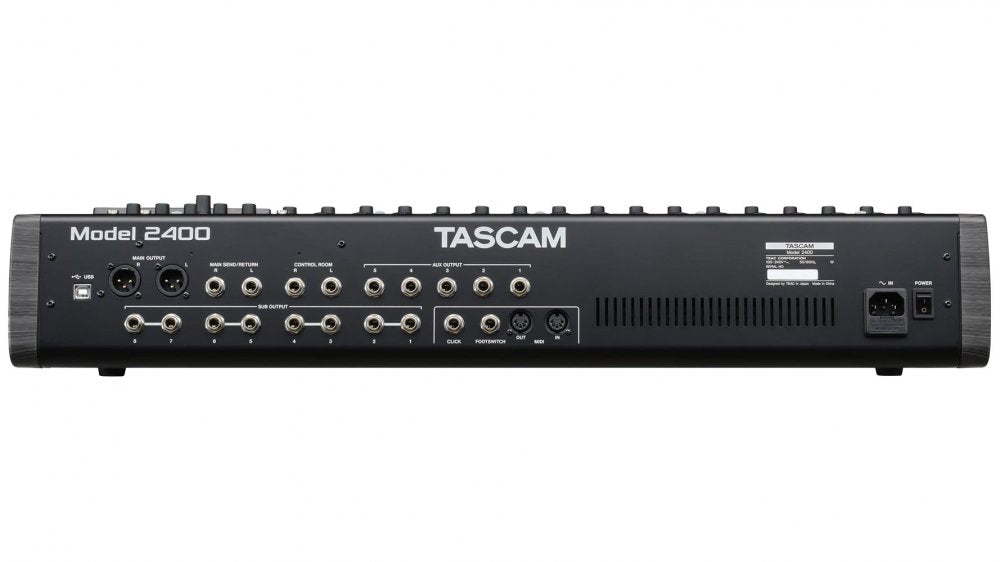

OUTPUTS:

• Main Outputs: XLR balanced

• Sub Outputs: 8 TRS pseudo balanced

• Aux Outputs: 5 TRS pseudo balanced

• Control Room Outputs: TRS pseudo balanced

• Phones: 2 outputs

• Click Output: TRS jack

EQ AND DYNAMICS:

• Channels 1-12: 3 band EQ with sweepable mid

• Channels 13-20: 3 band EQ with fixed mid

• Channels 1-12: Low cut at 100 Hz

• Master Section EQ: 4 band digital

• Master Compressor: Threshold, ratio, attack, release, makeup gain

RECORDING AND PLAYBACK:

• Recorder: SD card up to 512 GB

• File Format: WAV BWF

• Bit Depth: 16 or 24 bit

• Sample Rates: 44.1 or 48 kHz

• USB Audio: Class compliant USB 2.0

• DAW Control: HUI and MCU compatible

AUDIO PERFORMANCE:

• Frequency Response: 20 Hz to 30 kHz analog, 20 Hz to 20 kHz digital

• THD: 0.003 percent

• EIN: -128 dBu

• Crosstalk: -80 dB

• Max Gain: 74 dB mic to main out

MONITORING AND CONTROL:

• Faders: 100 mm for channels 1-22, subs and main

• Metering: Software meter bridge via Settings Panel

• Talkback: XLR input

• PFL and AFL: With LED indication

EFFECTS AND PROCESSING:

• Internal FX: 16 types including reverb, delay, chorus

• Bluetooth Input: Class 2, supports AAC and SBC codecs

MIDI AND FOOTSWITCH:

• MIDI In/Out: 5 pin DIN

• Footswitch: Dual function TRS

INCLUDED ITEMS:

• Model 2400 unit

• Power cord

• Startup guide with warranty

• TASCAM ID registration guide
