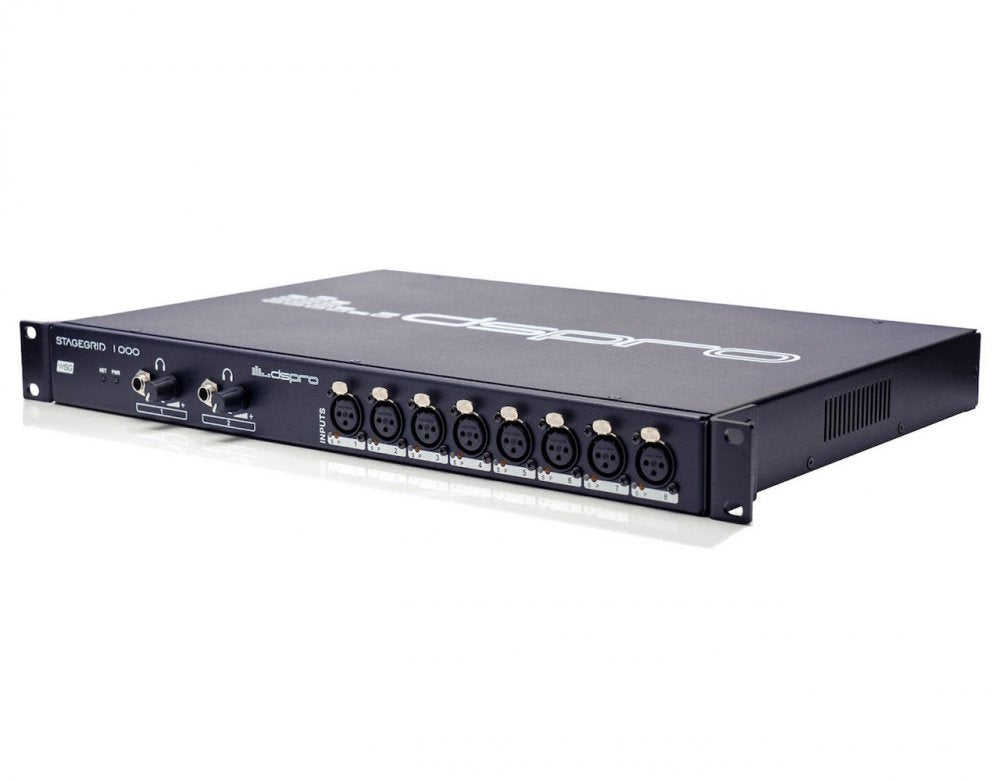

Waves DSPro StageGrid 1000

The DSPro StageGrid 1000 is a compact yet powerful I/O expansion unit designed specifically to integrate with the eMotion LV1 live mixing system, offering flexibility, portability, and professional-grade sound performance in a streamlined 1U rack-mountable form. With 8 digitally controlled mic/line inputs and 4 balanced analog outputs, it's engineered to support the demands of both front-of-house and stage setups. Whether you're expanding I/O capabilities at the console or enhancing stage connectivity for performers, the StageGrid 1000 ensures seamless integration and ultra-low latency audio networking through SoundGrid technology.

Its robust design includes AES/EBU stereo digital I/O, two independent headphone outputs for easy monitoring, and compatibility with sample rates ranging from 44.1 kHz to 96 kHz. Thanks to its Gigabit Ethernet SoundGrid port, this unit connects effortlessly to SoundGrid hosts or networks, enabling scalable configurations with up to 16 I/O devices. Designed for touring and live production environments, the StageGrid 1000 delivers reliable performance with features that enhance flexibility-making it a perfect addition to professional sound systems looking for a compact, road-ready solution.

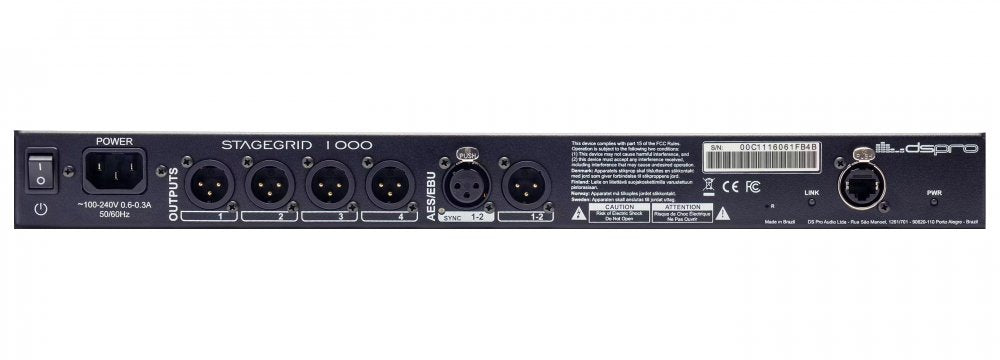

• Compact 1U rack-mountable SoundGrid I/O unit

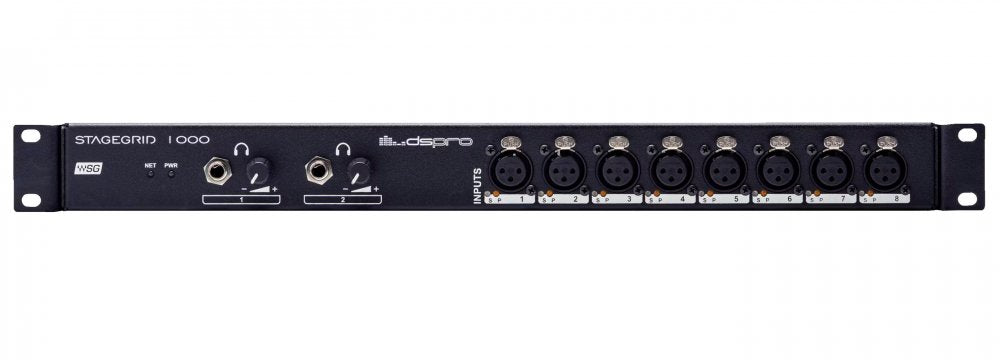

• 8 digitally controlled mic/line inputs (XLR connectors)

• 4 balanced analog outputs (XLR connectors)

• Stereo AES/EBU digital input and output (XLR)

• 2 stereo headphone outputs with individual volume controls

• Seamless integration with Waves eMotion LV1 mixer

• Full compatibility with SoundGrid network via Gigabit Ethernet

• Supports sample rates of 44.1, 48, 88.2, and 96 kilohertz

• Ultra-low latency audio processing when used with SoundGrid host

• Ideal for Front of House, monitor mixing, or stage I/O expansion

• Color-coded status LEDs for network and power monitoring

• Robust build for reliable performance in live environments

• Easy setup with automatic and manual device configuration options

• Can operate as SoundGrid clock master or slave

• SoundGrid ASIO/Core Audio driver support for DAW integration

• Preset management for quick recall and setup duplication

• Designed for stability, dependability, and pristine sound quality

KEY FEATURES:

• 1U rack-mountable SoundGrid I/O unit

• 8 digitally controlled mic or line inputs (XLR)

• 4 balanced analog line outputs (XLR)

• Stereo AES/EBU digital input and output via XLR

• 2 stereo headphone outputs with independent volume controls

• Gigabit EtherCON port for full SoundGrid compatibility

• Supports sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz

• Ideal for front-of-house, stage, or monitoring setups

• Rugged and road-ready for live environments

ANALOG INPUTS:

• Type: Balanced XLR mic or line

• Gain range: minus 4 dB to 60 dB (1 dB steps)

• Maximum input level: 28 dBu at minus 4 dB gain

• Input impedance: 2860 ohms

• Frequency response: 0.1 dB variation from 20 Hz to 40 kHz at 96 kHz

• THD plus noise: 0.0015 percent at minus 1 dBFS, 20 dB gain, 1 kHz, A-weighted

• Dynamic range: 115 dB A-weighted

• Equivalent input noise: minus 128 dBu at 60 dB gain, A-weighted, 150 ohm source

• Channel isolation: greater than 90 dB

• Analog to digital latency: 65 microseconds

ANALOG OUTPUTS:

• Type: Balanced XLR

• Maximum output level: 24 dBu at 0 dBFS

• Output impedance: 50 ohms

• Frequency response: 0.1 dB variation from 20 Hz to 40 kHz at 96 kHz

• THD plus noise: 0.0015 percent at minus 1 dBFS, A-weighted

• Dynamic range: 115 dB A-weighted

• Digital to analog latency: 70 microseconds

DIGITAL I/O (AES/EBU):

• Format: AES3 (2009)

• Connectors: XLR-3 for both input and output

• Impedance: 110 ohms

• Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

HEADPHONE OUTPUTS:

• Output power: 150 milliwatts per channel at 16 ohms

• Dynamic range: 100 dB

NETWORK INTERFACE:

• Network type: Gigabit Ethernet

• Connector: Neutrik EtherCON

• Enables ultra low latency audio processing and routing

• SoundGrid-compatible

POWER SUPPLY:

• Voltage: 110 to 240 volts AC (auto switching)

• Frequency: 50 to 60 hertz

• Power consumption: 25 watts

• Internal full range power supply

ENVIRONMENTAL AND PHYSICAL:

• Operating temperature: 0 to 40 Celsius

• Relative humidity: up to 90 percent, non-condensing

• Dimensions (width x height x depth): 435 mm x 43.5 mm x 300.6 mm

• Weight: 7.89 kilograms
