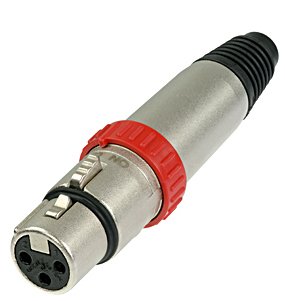

Neutrik NC3FX-S

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

• Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3

• For use on a microphone without switch

• Rugged zinc diecast shell, long lasting and durable

• Rugged metal boot

• Chuck type strain relief system for secure clamping of cables

• Boot with rubber gland gives high protection against bending stresses

Title: NC3FXS

Connection Type: XLR

Gender: female

ELECTRICAL:

Capacitance between contacts: 4 pF

Contact resistance: 3 m

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 G (initial)

Rated current per contact: 16 A

Rated voltage: < 50 V

MECHANICAL:

Cable O.D.: 3.5 - 7.0 mm

Insertion force: 20 N

Withdrawal force: 20 N

Lifetime: > 1000 mating cycles

Wiresize: max. 2.5 mm²

Wiresize: max. 14 AWG

Wiring: Solder contacts

Locking device: Latch lock

MATERIAL:

Boot: Polyurethan

Contact plating: 0.2 µm Au hard alloy over 2 µm Ni

Contacts: Bronze (CuSn6)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: St3K32 (latch) / Ck 67 (spring)

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief: Polyacetal (POM)

ENVIRONMENTAL:

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range :-30 C to +80 C
