SKU: 20921

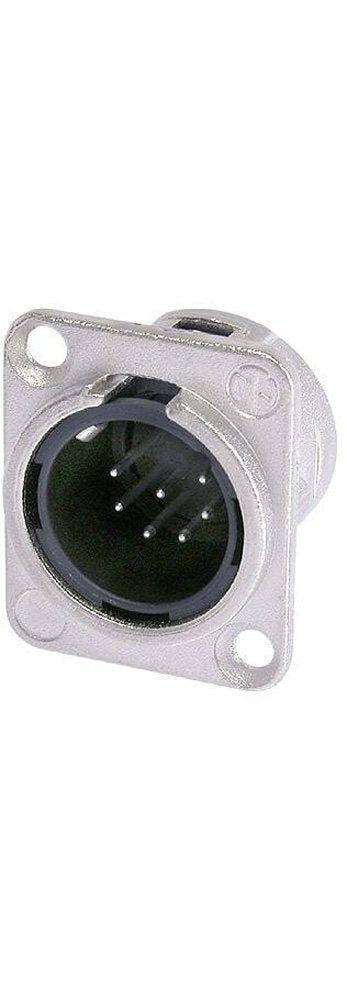

Neutrik NC7MD-L-1

Audio Adaptors
$26.65 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized financing solutions to fit your business needs.
Click here for more info.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Returns & Policy

You can review our terms and conditions here

Description

7 pole male receptacle, solder cups, Nickel housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component.

Features

โ€ข Robust "D" metal shell

โ€ข Standardized D sized 24 mm panel cutout

โ€ข Solder cups on 3 - 7 pole version

Specifications

Title: NC7MD-L-1

Connection Type: XLR

Gender: male

ELECTRICAL:

Capacitance between contacts: โ‰ค 9 pF

Contact resistance: โ‰ค 5 mฮฉ

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 Gฮฉ (initial)

Rated current per contact: 5 A

Rated voltage: < 50 V

MECHANICAL:

Insertion force: โ‰ค 20 N

Withdrawal force: โ‰ค 20 N

Lifetime: > 1000 mating cycles

Wire size: max. 1.0 mmยฒ

Wiresize: max. 18 AWG

Wiring: Solder contacts

Locking device: Latch lock

Chassis shape: D

MATERIAL:

Contact plating: 2 ยตm Ag over 2 ยตm Ni

Contacts: Brass (CuZn39Pb3)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Steel Ck67

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating Nickel
