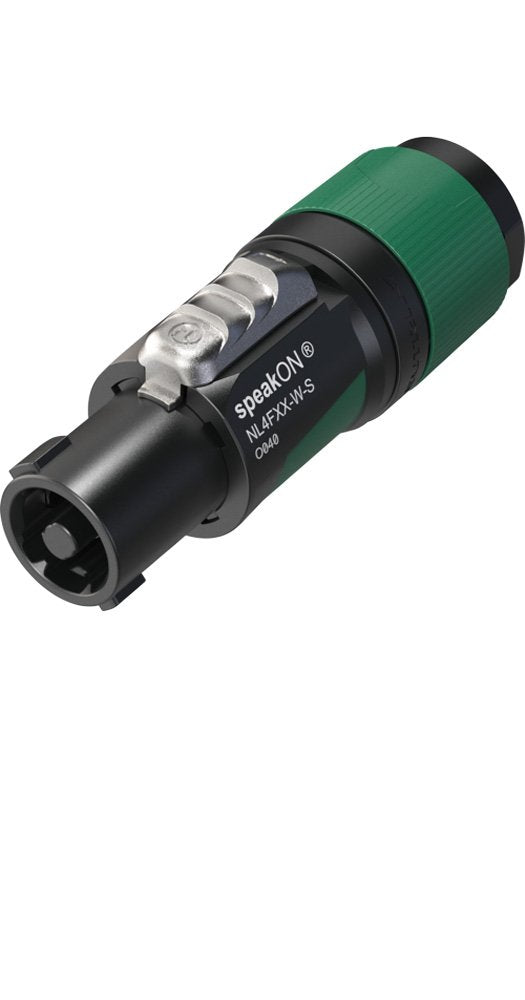

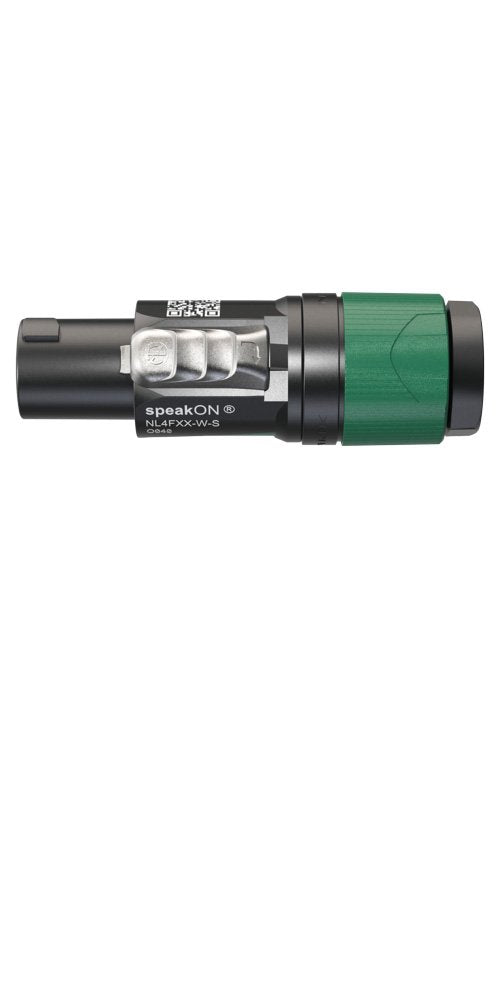

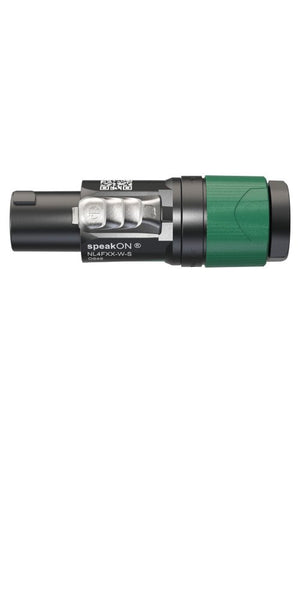

Neutrik NL4FXX-W-S

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

• Up to 37 A rms current rating

• Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mmIEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

• Superior NEUTRIK quality standard, extremely robust and reliable

• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing

• Easy and reliable twist lock system

• Ergonomic design with slip-proof two-component molded housing

• Improved kink protection by two-component bushing

Connector series: speakON 4 pole

Contact resistance: ≤ 2 mΩ

Dielectric strength: 2.8 kVac

Insulation resistance: > 10 GΩ (initially)

Number of electrical contacts: 4

Rating Europe: IEC 61984: 37 A 250 V AC

Rating USA: UL1977: 35 A 250 V AC

Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
