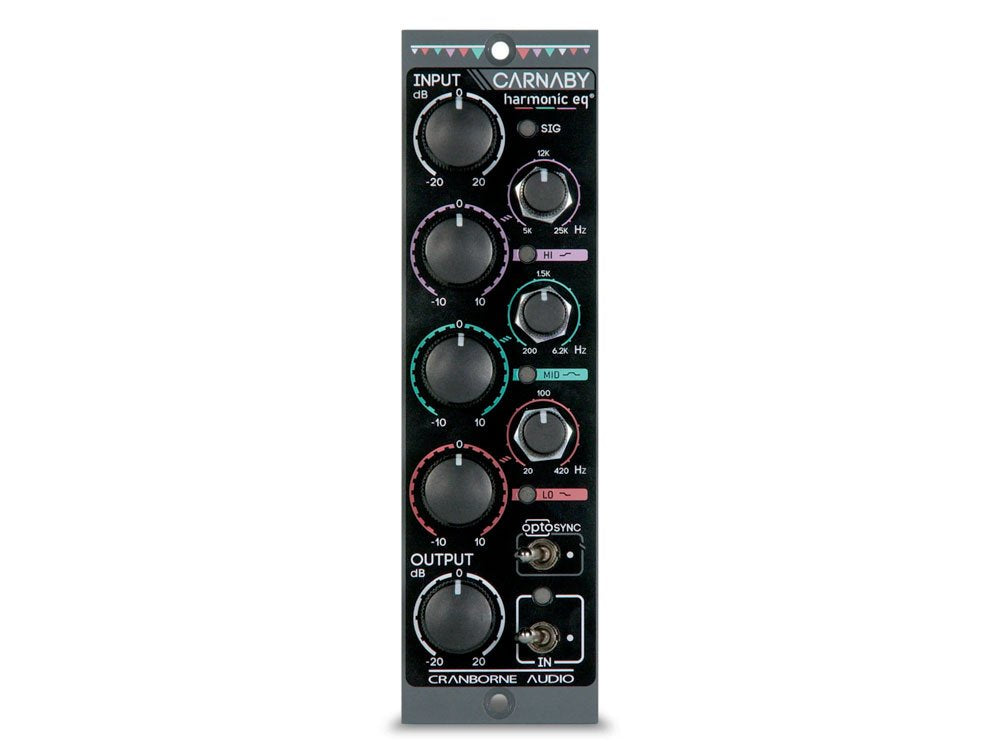

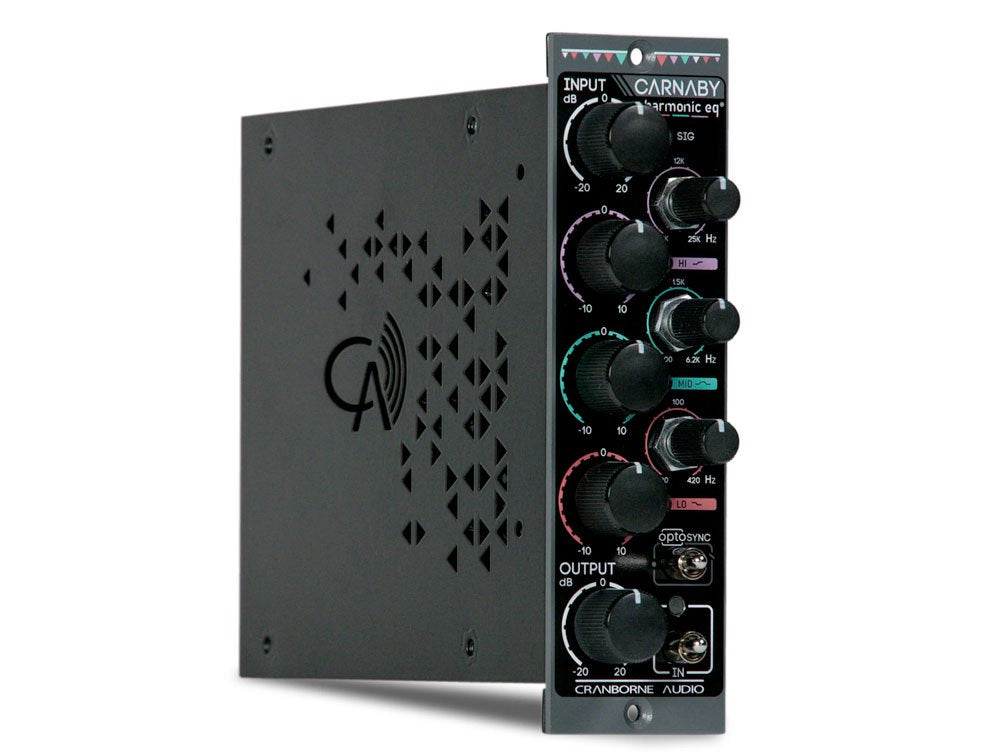

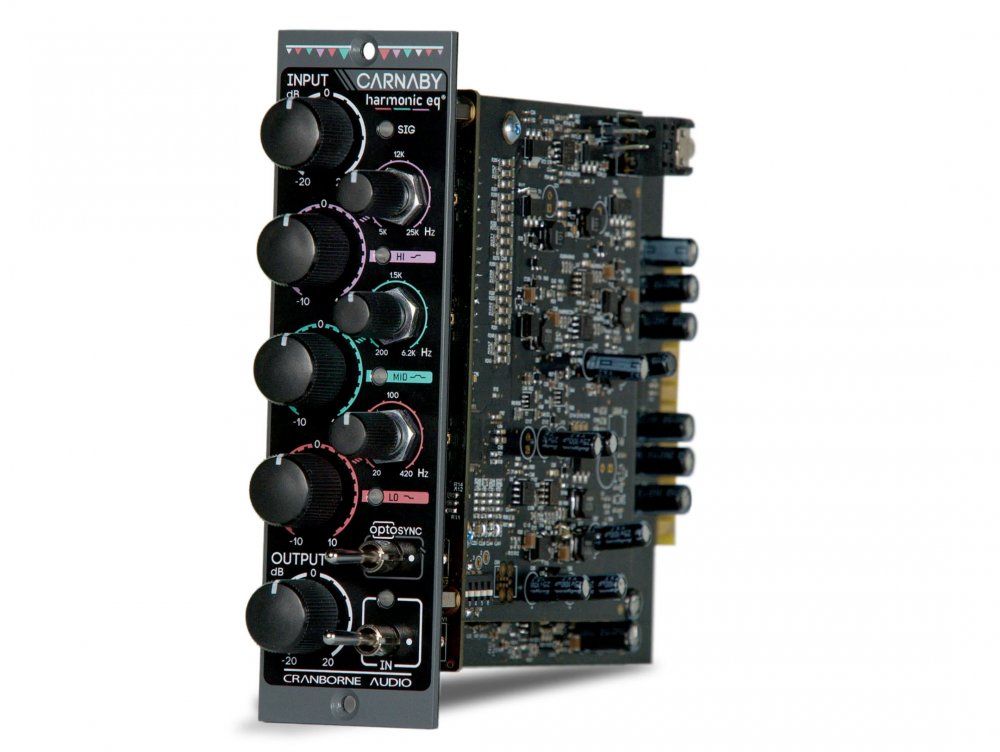

Cranborne Audio Carnaby 500

The Cranborne Audio Carnaby 500 is a groundbreaking 3-band parametric equalizer designed for the 500 Series format, introducing the world's first Harmonic EQ™ technology. Unlike traditional EQs that adjust amplitude and phase, the Carnaby 500 employs analog harmonic saturation to boost and cut frequency content, enriching your audio sources, stems, and mixes with genuine analog warmth and character.

Each of the three interactive bands offers ±10dB of boost or cut with sweepable and overlapping frequency controls, allowing for precise tonal shaping. The HI band ranges from 5kHz to 25kHz, utilizing smooth saturation to naturally extend high frequencies, adding air and breath to vocals and acoustic instruments. The MID band, a peaking filter with a fixed Q, covers 200Hz to 6.2kHz, applying saturation to emphasize harmonics across its range. The LO band spans 20Hz to 420Hz, using hard-clipping saturation to enhance sub-harmonic frequencies, perfect for adding depth to bass elements.

The Carnaby 500's dynamic response increases harmonic content as the circuits are driven harder. Input and Output level controls provide ±20dB of adjustment, enabling you to drive the unit for more saturation and distortion effects or back off for a cleaner EQ when needed. Additionally, the innovative OptoSync feature allows for wireless communication between modules, enabling linked controls during stereo operation without the need for cables.

With its unique approach to equalization and harmonic enhancement, the Cranborne Audio Carnaby 500 offers a versatile and intuitive tool for audio professionals seeking to add analog richness and precise tonal control to their recordings and mixes.

• Analog Harmonic EQ " Adds musical harmonic enhancement while sculpting your sound.

• 3-Band EQ Control " Independently adjust lows, mids, and highs with precision.

• Dynamic Harmonic Saturation " Introduces harmonics that respond dynamically to your input, enhancing tone naturally.

• 500-Series Module " Compact design fits into any 500-series rack for easy integration.

• Versatile Sound Shaping " Ideal for enhancing vocals, instruments, and mixes.

• Transparent or Colored Sound " Choose between clean EQ boosts or rich harmonic coloration.

• Durable Build Quality " Designed for reliable use in both studio and live environments.

GENERAL SPECIFICATIONS:

• 3-band parametric 500 Series analogue EQ with unique Harmonic EQ™ circuit

• Parametric LO and HI shelving bands with ±10dB of cut/boost and harmonic saturation

• Parametric peaking MID band with ±10dB of cut/boost, fixed Q, and harmonic saturation

• LO, MID, and HI LED indicators to display saturation level

• ±20dB Input and Output Level for dense harmonic saturation or clean EQ effects

• OptoSync wireless communication between modules for linked controls during stereo operation

• >" TRS socket for linking non-adjacent modules

• Circuit auto-calibration for perfect stereo matching between all modules

• True-bypass IN/OUT switching with complete or post input trim modes available on DIP switch

• Stepped, front-panel controls for quick recall and precise feel

TECHNICAL DATA:

• Max Input Level: +26dBu (<0.003% THD)

• Max Output Level: +26dBu (<0.003% THD)

• Noise Floor: <-93dBu (all bands bypassed)

• Input Impedance: 10 kOhms

• Output Impedance: 150 Ohms

• Current Draw: 140mA per rail (idle), 160mA (peak)

EQ SPECIFICATIONS:

Hi Band:

• Filter Type: High Shelf Filter

• Frequency Range: 5kHz - 25kHz

• Boost/Cut: ±12dB @ -6dBu; +13dB, -18dB @ +14dBu

• Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)

Mid Band:

• Filter Type: Peak Filter

• Frequency Range: 200Hz - 6.2kHz

• Boost/Cut: ±5dB @ -6dBu; +10dB, -18dB @ +14dBu

• Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)

Lo Band:

• Filter Type: Low Shelf Filter

• Frequency Range: 20Hz - 420Hz

• Boost/Cut: ±8.5dB @ -6dBu; ±12dB @ +14dBu

• Harmonics: ~8% THD+N (100Hz, +4dBu); ~12% THD+N (100Hz, +14dBu)

ENVIRONMENTAL:

• Operating Temperature: +1 to 35 degrees Celsius

• Storage Conditions: -20 to 50 degrees Celsius

DIMENSIONS AND WEIGHT:

• Width: 170mm (6.6")

• Height: 31mm (1.2")

• Depth: 133mm (5.2")

• Unit Weight: 0.4kg (0.9 lbs)
