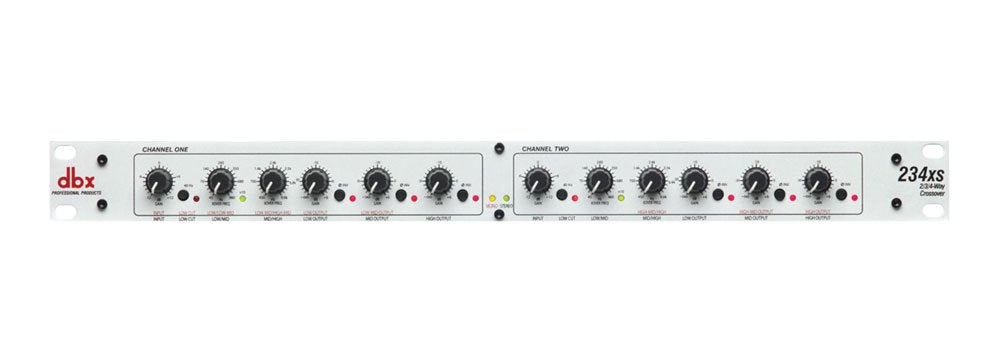

DBX 234XS

The dbx 234xs is a precision-engineered active crossover designed to maximize the performance of your loudspeakers and amplifiers. With 24 dB/octave Linkwitz-Riley filters, high-quality XLR balanced inputs and outputs, and advanced signal routing features, the 234xs provides professional-grade frequency management for portable PA systems, touring rigs, and installations.

Supporting stereo 2-way, stereo 3-way, and mono 4-way operation, the 234xs offers flexibility and control in a compact 1U rackmount form. It includes independent level controls and phase inversion switches for each output, a 40 Hz low-cut filter, and the option to sum low frequencies for subwoofer output, helping you tailor the system to your exact requirements while maintaining clean, undistorted sound.

• Flexible Configuration: Operates as a stereo 2-way, stereo 3-way, or mono 4-way crossover - ideal for versatile system setups.

• Professional Filter Design: Uses Linkwitz-Riley 24 dB/octave filters for smooth and precise frequency separation.

• Subwoofer Output Option: Mono-summed low-frequency output supports powerful and controlled sub bass integration.

• Built-In Low Cut Filter: Switchable 40 Hz high-pass filter helps reduce unwanted low-end rumble.

• XLR Balanced Inputs and Outputs: Ensures professional-grade signal integrity and noise rejection in any environment.

• Independent Output Level and Phase Controls: Customize each output with individual gain settings and phase reverse switches.

• x10 Frequency Range Switch: Multiplies crossover frequency ranges for mid-high or high-frequency driver applications.

• Status LEDs for Clear Operation: Visual indicators show stereo/mono mode, low cut, x10 setting, and phase inversion per output.

• Ultra Low Noise and High Performance: Offers >106 dB dynamic range, low THD (<0.004%), and wide frequency response up to 90 kHz.

• Road-Ready Build: Rugged 1U rackmountable chassis designed for touring and installed sound systems.

GENERAL FEATURES:

• XLR balanced ins and outs

• Mode switches for mono 4 way or stereo 2 way 3 way operation

• Low frequency summed subwoofer output

• x10 range switch on both channels

• 40 Hz high pass low cut filter both channels

• Phase reverse switch on all outputs

• Individual level controls on all outputs

• 24 dB per octave Linkwitz Riley filters

• Stereo Mono status LEDs indicate selected mode

• CSA NRTLC approved

• CE compliant

AUDIO PERFORMANCE:

• Frequency Response less than 3 Hz to greater than 90 kHz plus zero minus 3 dB

• Bandwidth 20 Hz to 20 kHz plus minus 0 point 5 dB

• Signal to Noise Ratio ref 4 dBu 22 kHz measurement bandwidth

• Stereo greater than 94 dB Low greater than 93 dB Mid greater than 90 dB High

• Mono greater than 94 dB Low Low Mid greater than 92 dB High Mid greater than 88 dB High

• Dynamic Range greater than 106 dB unweighted

• THD plus Noise less than 0 point 004 percent at 4 dBu 1 kHz less than 0 point 04 percent at 20 dBu 1 kHz

• Interchannel Crosstalk less than minus 80 dB from 20 Hz to 20 kHz

CROSSOVER CONFIGURATION:

• Stereo Mode

• Low Mid 45 to 960 Hz or 450 Hz to 9 point 6 kHz

• Low High 45 to 960 Hz or 450 Hz to 9 point 6 kHz

• Mid High 450 Hz to 9 point 6 kHz

• Mono Mode

• Low Low Mid 45 to 960 Hz or 450 Hz to 9 point 6 kHz

• Low Mid High Mid 450 Hz to 9 point 6 kHz

• High Mid High 450 Hz to 9 point 6 kHz

• Crossover Filter Type Linkwitz Riley 24 dB per octave state variable

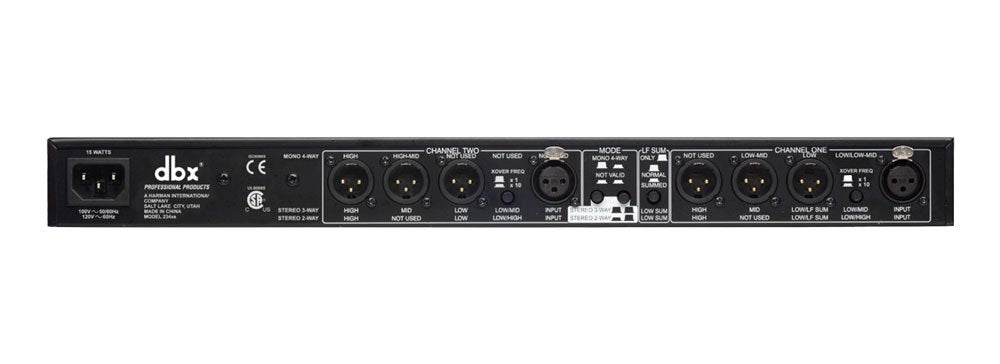

INPUTS:

• Connectors XLR

• Type Electronically balanced unbalanced RF filtered

• Impedance Balanced greater than 50k ohms Unbalanced greater than 25k ohms

• Max Input greater than plus 22 dBu

OUTPUTS:

• Connectors XLR

• Type Impedance balanced unbalanced RF filtered

• Impedance Balanced 60 ohms Unbalanced 30 ohms

• Max Output greater than plus 21 dBu into 2k ohms or greater

SWITCHES AND INDICATORS:

• Low Cut Activates 40 Hz Butterworth 12 dB octave HPF per channel

• Phase Invert Per output

• x1 x10 Frequency Multiplier Per channel

• Mode Switch Selects stereo mono and 2 3 4 way operation

• LF Sum Selects normal stereo or mono summed low frequency operation

• Indicators Stereo Operation Green Mono Operation Yellow Low Cut Red x10 Green Phase Invert Red

POWER AND DIMENSIONS:

• Operating Voltage 100 to 120 VAC 50 60 Hz and 230 VAC 50 60 Hz

• Power Consumption 15 W

• Power Connector IEC receptacle

• Operating Temperature 0 to 45 degrees Celsius

• Dimensions 1 point 75 inch H x 19 inch W x 6 point 9 inch D

• Unit Weight 4 point 0 lbs

• Shipping Weight 5 point 8 lbs
