YoloLiv S7

Step up your live production game with the YoloCam S7 - a compact, high-performance streaming camera designed for creators, streamers, and broadcasters seeking cinematic quality with unmatched flexibility. Engineered with a 4/3" CMOS sensor and a Micro Four Thirds (M4/3) lens mount, the S7 captures stunning visuals in up to 4K at 60fps, delivering professional-grade image clarity with dynamic exposure, focus, and color control. Whether you're broadcasting through YoloBox, InStream, or directly to your computer, the S7 offers seamless HDMI and USB outputs, making it easy to integrate into your existing workflow.

Designed with versatility and durability in mind, the YoloCam S7 includes essential connectivity ports (HDMI, USB-C 3.0, audio input), a cold shoe mount, and intuitive controls for live scene customization using YoloLiv Composer. Thanks to PoE support and a lightweight build (approx. 439g), it's perfect for mobile setups, studio installations, and remote productions alike. The included accessories - from international power adapters to a mounting bracket and cables - ensure you're ready to go right out of the box.

• Interchangeable M4/3 Lens Support: Allows you to use Micro Four Thirds lenses for flexible shooting options.

• 4K Live Streaming Quality: Captures high-resolution video up to 4K for professional broadcast use.

• Dual Video Output Options: Streams video through both HDMI and USB connections for seamless integration with streaming devices and computers.

• Plug-and-Play USB Compatibility: Connects directly to computers for live streaming without extra setup.

• Scene Customization via YoloLiv Composer: Use the YoloLiv Composer software to adjust resolution, exposure, white balance, and more.

• Optimized for Streaming Platforms: Ideal for vertical streamers, individual creators, sellers, and live hosts.

• Time-of-Flight Sensor (TOF): Enhances autofocus and exposure based on subject distance.

• Built-In Cold Shoe Mount: Attach accessories like microphones or lights directly to the camera.

• Compact and Lightweight Design: Small, portable build (~439g) for easy setup on-the-go.

GENERAL SPECIFICATIONS:

• Model: Y-CAM-CN005

• Image Sensor: 4/3 inch CMOS

• Effective Pixels: 1071W

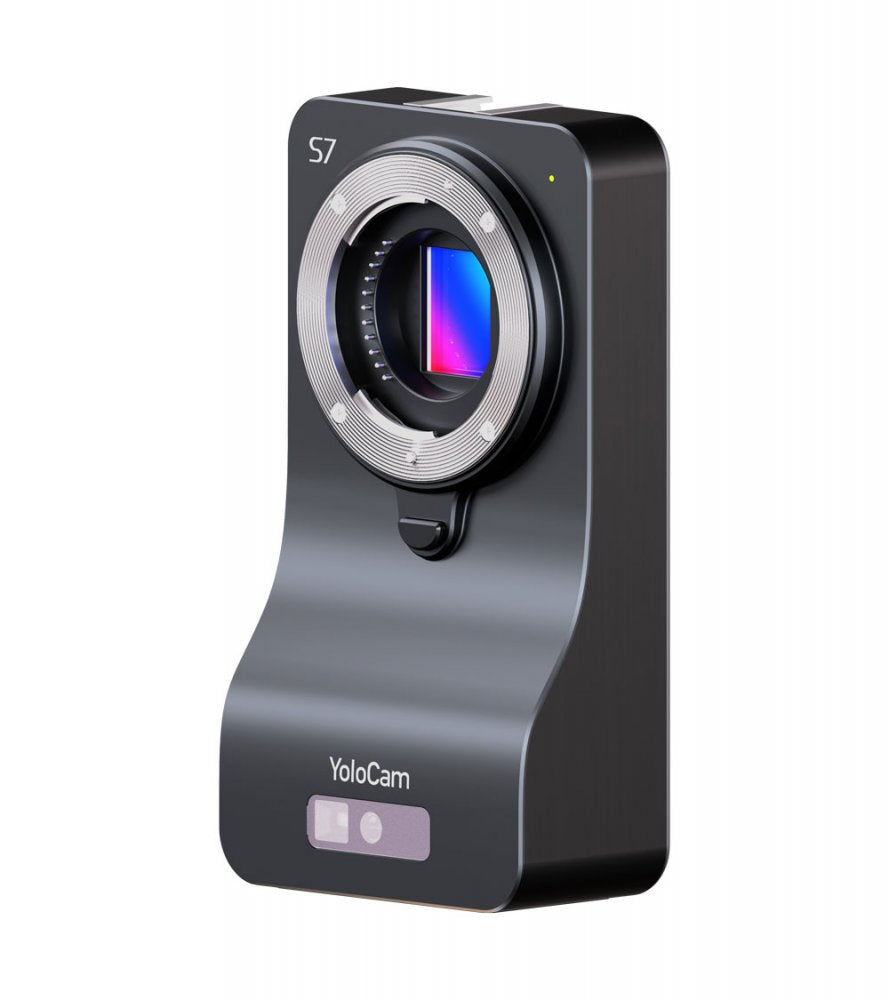

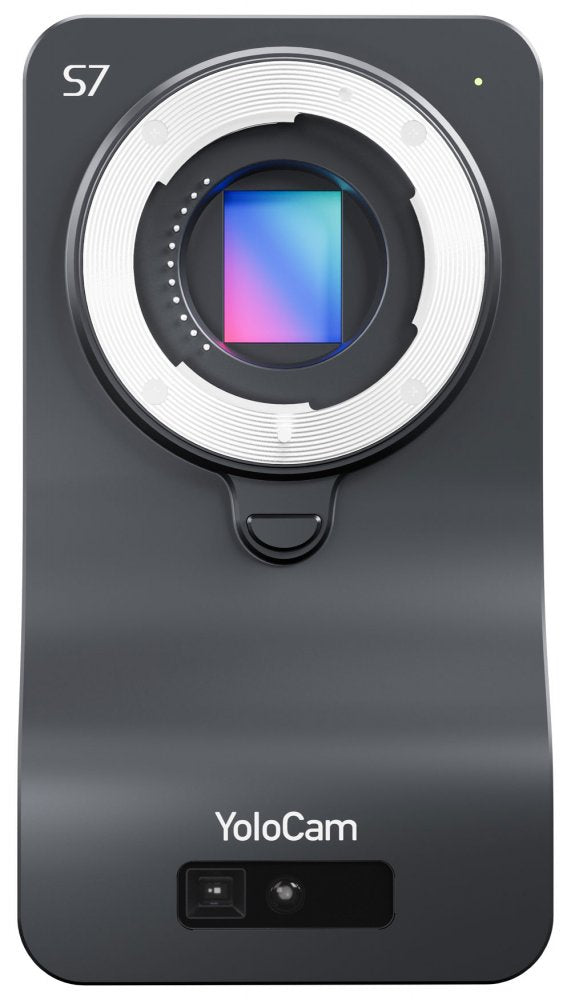

• Lens Mount: Micro Four Thirds (M43)

• Dimensions: 132.5 x 72 x 37.5 mm (L x W x H)

• Weight: approximately 439 g

• Power Supply: DC 12V 1A

• Power Consumption: less than 12W

OPERATING CONDITIONS:

• Operating Temperature: 0 degree C to 40 degree C

• Storage Temperature: -10 degree C to 45 degree C

• Operating Humidity: 15% to 80% (non-condensing)

• Storage Humidity: 15% to 85% (non-condensing)

VIDEO AND IMAGING:

• Video Output Formats:

• HDMI: up to 4K at 60fps (resolution adapted to screen)

• USB 3.0: MJPEG, H.264, NV12, YUY2 (NV12/YUY2 support up to 1080p)

• Focus Mode: Auto, Manual

• ISO Range: 100 to 9600

• White Balance: 2000K to 10000K (Auto, Manual)

• Shutter Speed: 1/25 sec to 1/8000 sec

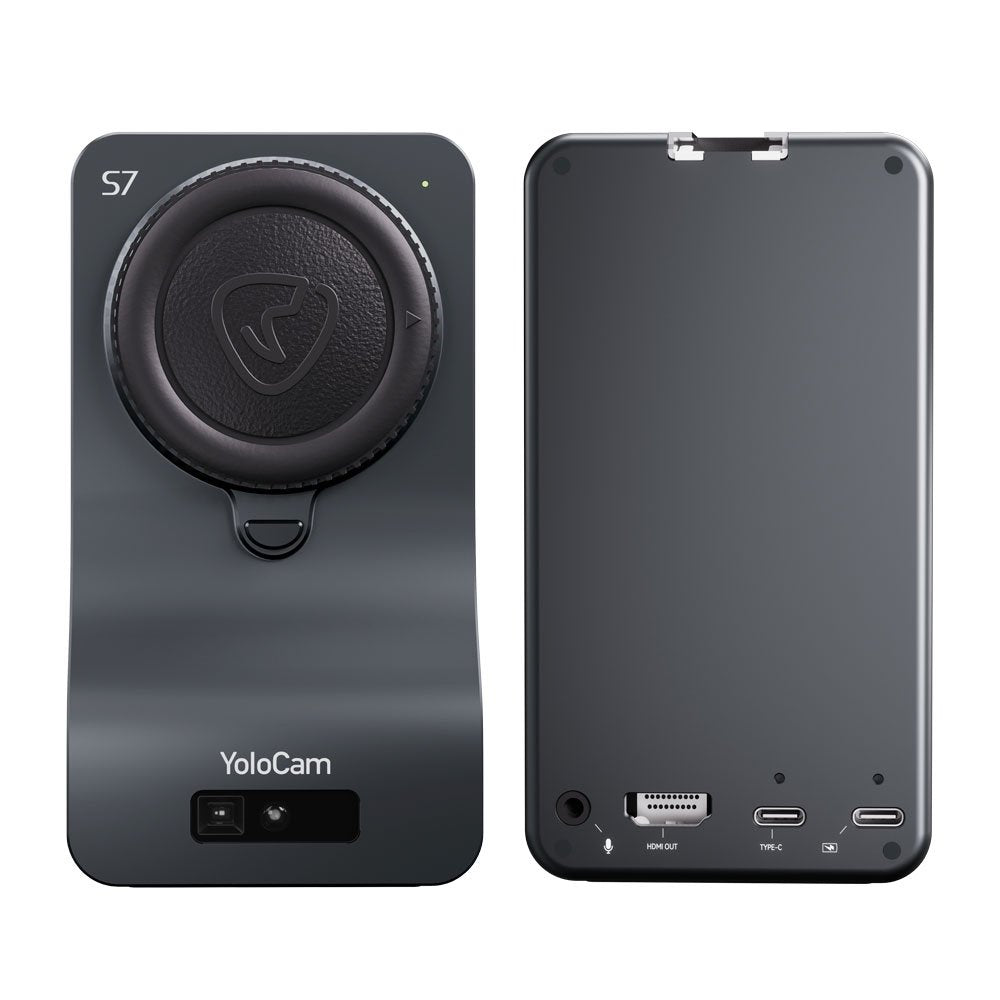

CONNECTIVITY AND INTERFACES:

• USB Type-C 3.0 Interface x 1

• HDMI Output Interface x 1

• Audio Input Interface

• Power Port

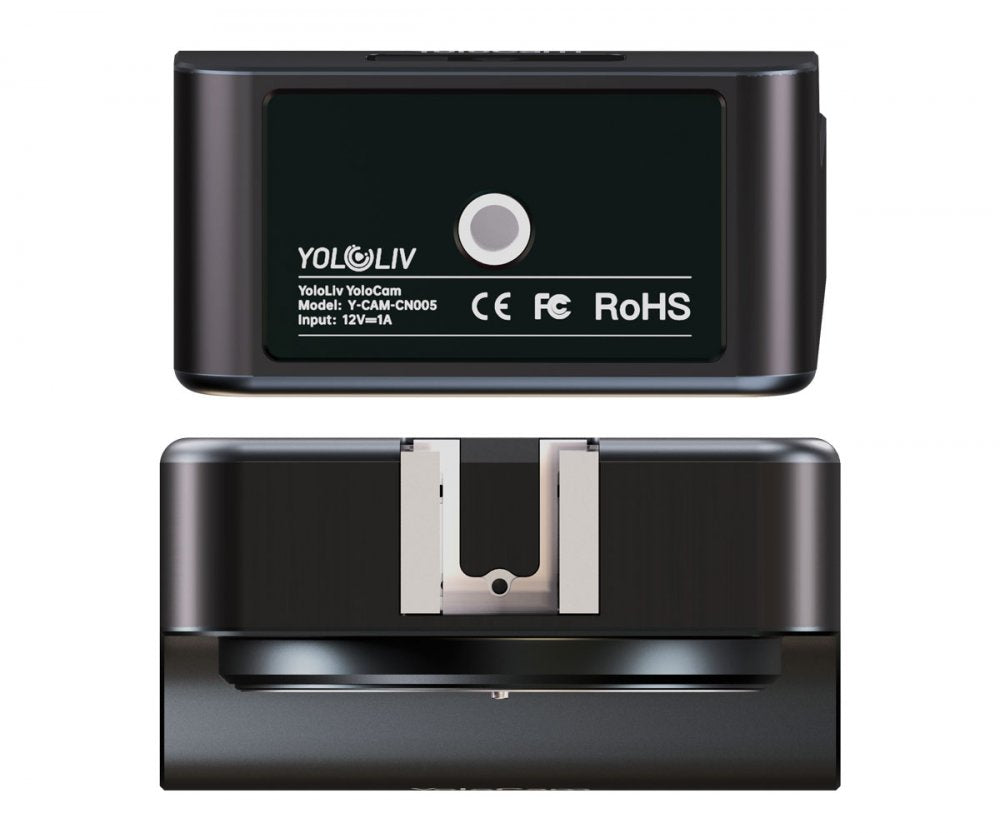

• Cold Shoe Mount

ACCESSORIES INCLUDED:

• YoloCam S7 x 1

• Lens Cap x 1

• USB-C to USB-C Power Cable x 1

• USB-A to USB-C Data Cable x 1

• Charger with US UK EU plug adapters x 1

• L Mounting Bracket x 1

• Product Manual x 1
