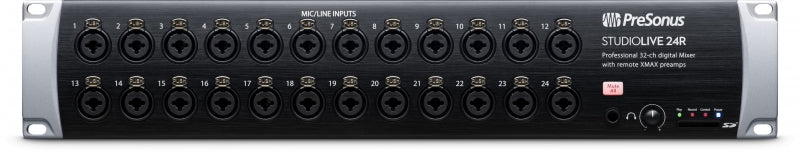

Presonus StudioLive 24R

The StudioLive 24R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 24R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake-and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 24R's preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 24R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class-all packed into just two rackspaces (2U).

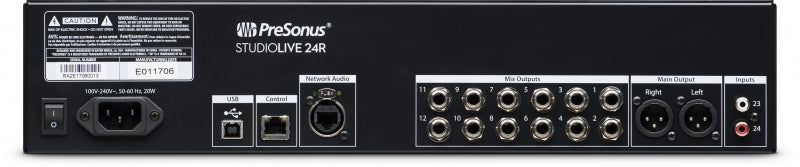

LOCAL INPUTS AND OUTPUTS:

• 26 total inputs

- 24 mic/line channel inputs + 2 RCA inputs

• 12 ¼-inch TRS FlexMix outputs

• 2 XLR (L/R) Main outputs

• Stereo headphone output

CHANNELS AND BUSES:

• 32 input channels

- 24 analog, AVB, or USB

- 8 AVB or USB

• 2 stereo aux inputs (AVB or USB)

• 1 stereo digital return (SD Card, AVB, or USB)

• 26 buses:

- 16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)

- 4 dedicated subgroups

- 4 internal effects sends

- Stereo main bus

• 24 Filter DCAs for easily and flexibly controlling groups of channels

NETWORKING CONNECTIONS:

• 1 Ethernet control network port

- Dynamic, Self Assigned, and Manual IP address modes

• 1 Locking XLR Ethernet AVB audio network port

RECORDING:

• Onboard stereo SD recorder

• 40x40 USB recording interface

• 55x55 AVB recording interface

SIGNAL PROCESSING:

• Intuitive Fat Channel signal processing on every channel with:

- A/B settings comparison

- Highpass filter and polarity reverse

- Gate/expander with sidechain

- Compressor with sidechain

- 4-band parametric EQ on inputs

- 6-band parametric EQ on outputs

- Limiter

- Delay on every input

- Delay on every output

- Professionally programmed library of presets

• Vintage EQ and compressor models available on every input

- Passive EQ

- Vintage EQ

- Tube compressor

- FET compressor

• 8 31-band graphic EQs

• 4 internal effects buses: combination of reverbs and delays with modern and vintage options

• Built-in real-time analyzer

SCENES AND PRESETS:

• Create, save, and edit up to 100 scenes

• Scene management with:

- Scene Safe-prevents a scene change from affecting designated "safe" channels

• Create, save, and edit channel settings and copy/paste between channels

• Advanced channel preset options can save and recall:

- Channel type and name

- Input settings (preamp, +48V phantom power, polarity, pan)

- Fat Channel A & B settings

- Bus assignments

- Aux and effects send levels and pan

- Select button color

• 8 Quick Scenes

• 8 Mute groups

DIGITAL:

• Studio-quality converters with 115 dB dynamic range

• 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

ACTIVELY INTEGRATED SOFTWARE:

• UC Surface touch control software for Mac, Windows, iPad, and Android ™

• Studio One Artist digital audio workstation software for Mac and Windows

• Capture™ multitrack recording software for Mac and Windows

• QMix-UC aux-control software for iOS and Android™ available free from Apple App Store and Google Play

COMPUTER SYSTEM REQUIREMENTS:

Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One.

MAC:

Mac OS X 10.8.5 64-bit or later

Intel Core™ 2 Duo processor (Intel Core i3 or faster recommended)

4 GB RAM (8 GB or more recommended)

WINDOWS:

Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86

Intel Core 2 Duo (Intel Core i3 or faster recommended)

4 GB RAM (8 GB or more recommended)

MAC AND WINDOWS SYSTEMS:

USB 2.0 port

Internet connection

Internal or external 7200 RPM storage drive highly recommended

34 GB hard disk space

Monitor with 1366x768 resolution

IOS:

iOS 9.3 or later

iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

ANDROID (QMIX-UC):

• Android™ 5.0 (Lollipop) or later

• Android smartphone (QMix-UC)

• Android tablet (8-inch) with 1024x768 resolution (UC Surface)

TECHNICAL SPECIFICATIONS:

MICROPHONE PREAMPLIFIER:

Input Type: Combo locking XLR mic-¼" TRS line

Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu

Input Impedance: 1 k

THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB

Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB

Gain Control Range (±1 dB): 0 dB to +60 dB

Maximum Input Level (unity gain): +12 dBu

Phantom Power (±2 VDC): 48 VDC, switchable per channel

UNBALANCED INPUTS (CH. 23-24):

Type: RCA Female, unbalanced (stereo pair)

Maximum Input Level: +12 dBu, ±0.5 dBu

MAIN OUTPUTS:

Type: XLR Male, balanced

Maximum Output Level: +24 dBu, ±0.5 dBu

Output Impedance: 100

MIX OUTPUTS:

Type: ¼" TRS Female, balanced

Maximum Output Level: +18 dBu, ±0.5 dBu

Output Impedance: 100

HEADPHONE OUTPUT:

Type: ¼" TRS Female, active stereo

Maximum Output: 100 mW/ch. @ 60 load

Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)

THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

SYSTEM CROSSTALK:

Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

DIGITAL AUDIO AND CONTROL:

ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)

DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)

USB Recording Port: USB 2.0, Type-B

Network Control Port: RJ-45

AVB Audio Network Port: Locking XLR Ethernet

Internal Processing: 32-bit, oating point

Sampling Rate: 48 kHz (44.1 kHz coming soon)

A/D/A Bit Depth: 24

Reference Level for 0 dBFS: +18 dBu

Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

CLOCK:

Jitter: <20 ps RMS (20 Hz - 20 kHz)

Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

POWER / ENVIRONMENTAL:

Connector: IEC

Input-Voltage Range: 90 to 230 VAC (±10%)

Power Requirements (continuous): 85W

Recommended Ambient Operating Temperature: 0 to 40 Celsius / 32 to 104 Fahrenheit

PHYSICAL:

Height: 3.5" (90mm)

Width: 19" (483mm)

Depth: 12" (305mm)

Weight: 10.8 lbs. (4.9 kg)
