Apogee Symphony I/O MKII Chassis with Thunderbolt/Pro Tools HD+ Car

The Symphony I/O MkII Chassis with Thunderbolt and Pro Tools HD Plus Cards provides a flexible and future-ready foundation for professional audio setups that demand both native and Pro Tools HD integration. This configuration includes the Symphony MkII chassis equipped with both Thunderbolt and Pro Tools HD Plus connectivity cards-delivering maximum compatibility across a wide range of studio environments.

This dual-connection setup allows seamless switching between native Thunderbolt workflows and industry-standard Pro Tools HD systems, making it an ideal centerpiece for hybrid studios. With its intuitive touchscreen interface, world-class AD/DA conversion, and capacity for up to 32 channels of modular I/O, the chassis ensures pristine sound quality and ultra-low latency performance, whether you're tracking, mixing, or working in immersive audio formats.

• Includes Symphony Mk II chassis with both Thunderbolt and Pro Tools HD Plus connectivity.

• Dual interface support provides flexibility for hybrid studio setups.

• Modular design allows customization with any Apogee I/O cards (sold separately).

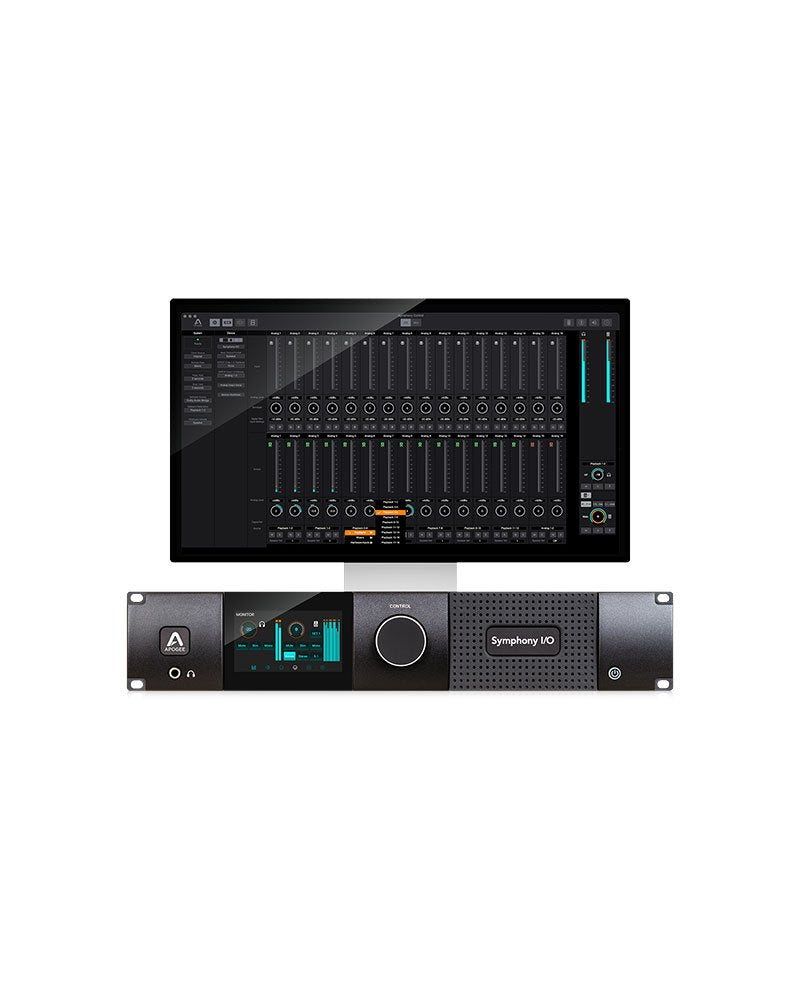

• Touchscreen interface offers easy access to routing, levels, and system control.

• Supports up to 32 channels of analog I/O when fully configured.

• Delivers premium AD/DA conversion for professional-quality audio.

• Optimized for use with Mac OS and Pro Tools HD systems.

• Ready for immersive audio monitoring with up to 32 speaker outputs.

• Built in the USA with high-end components for studio-grade reliability.

GENERAL SPECIFICATIONS:

• Product: Apogee Symphony Mk II

• Model: Symphony I O MKII chassis with Thunderbolt and Pro Tools HD Plus cards

• Configuration: Chassis only with Thunderbolt and Pro Tools HD Plus connectivity, no I O modules included

• Display: Intuitive touchscreen interface

• Modularity: Supports up to 32 channels of modular analog I O (via optional I O modules)

• Power: 90 to 240 VAC, 50 to 60 Hz, 150 W

• Build: Designed and built in the USA

CONNECTIVITY OPTIONS:

• Dual Connectivity: Thunderbolt and Pro Tools HD Plus cards

• Thunderbolt Compatibility: Mac OS 10.10 and above

• Pro Tools HD HDX Compatibility: Mac or PC running Pro Tools HD 9 or greater

• Future Expandability: Supports Dante and SoundGrid via additional cards

DIGITAL CONVERSION SPECIFICATIONS (WHEN MODULES INSTALLED):

• Analog to Digital THD plus N: minus 115 dB at 22 dBu unweighted

• AD Dynamic Range: 122 dB A weighted

• Digital to Analog THD plus N: minus 119 dB at 21 dBu unweighted

• DA Dynamic Range: 126 dB A weighted

• Frequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dB

HEADPHONE OUTPUT:

• Connector: 1 stereo quarter inch front panel

• THD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 Ohm

• Dynamic Range: 121 dB A weighted

• Output Design: Apogee Constant Current Drive

MONITOR CONTROL AND IMMERSIVE AUDIO:

• Monitor Workflows: Control up to 32 speaker outputs

• Immersive Audio Support: Dolby Atmos and Sony 360 Reality Audio

USE CASE:

• Ideal for studios requiring simultaneous Thunderbolt and Pro Tools HD connectivity

• Designed for users planning to install custom I O module configurations

SKU AND CONFIGURATION:

• SKU 1: Symphony I O MKII chassis

• SKU 2: Thunderbolt and Pro Tools HD Plus cards installed

• Total Configuration: Interface chassis with dual connectivity, no I O modules included
