Apogee Symphony I/O MKII Chassis with Thunderbolt/ProTools HD+/Dant

The Symphony I/O MkII Chassis with Thunderbolt, Pro Tools HD Plus, and Dante Plus Cards delivers a comprehensive solution for studios that need maximum connectivity and flexibility. This advanced configuration integrates Apogee's state-of-the-art AD/DA conversion with three high-performance connectivity options-Thunderbolt, Pro Tools HD, and Dante-offering seamless compatibility across native, broadcast, and networked audio workflows.

With support for up to 32 channels of modular I/O, this chassis is ideal for demanding recording, mixing, and mastering environments. Whether you're working in immersive formats like Dolby Atmos or integrating with large-scale studio and live sound systems, the Symphony MkII adapts effortlessly. Its intuitive touchscreen control, ultra-low latency, and pristine audio fidelity make it a future-proof hub for modern hybrid studios.

• Includes Symphony Mk II chassis with all three connectivity options: Thunderbolt, Pro Tools HD Plus, and Dante.

• Offers maximum flexibility for hybrid studios and networked audio setups.

• Compatible with Mac and PC for use with a wide range of DAWs and workflows.

• Ready to accept any Apogee I/O modules (sold separately), supporting up to 32 analog channels.

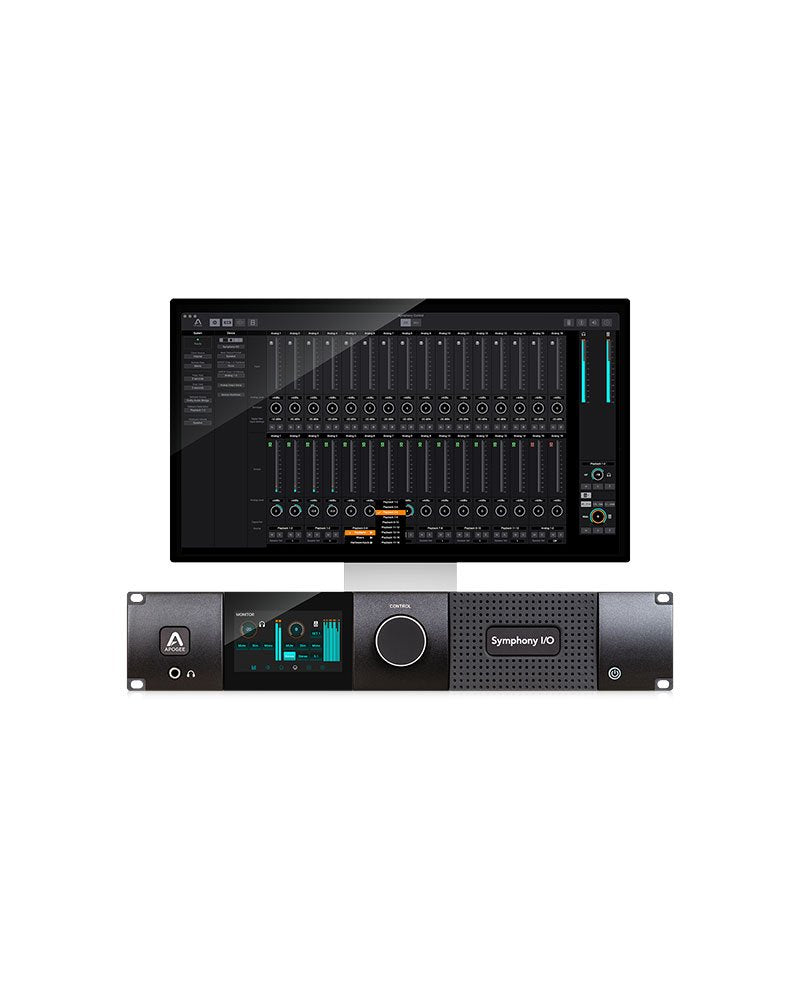

• Intuitive touchscreen interface for fast and easy control of routing and monitoring.

• Enables immersive audio workflows, supporting formats like Dolby Atmos and Sony 360.

• Delivers premium-quality AD/DA conversion and ultra-low latency.

• Built in the USA for reliable, professional-grade performance.

GENERAL SPECIFICATIONS:

• Product: Apogee Symphony Mk II

• Model: Symphony I O MKII chassis with Thunderbolt, Pro Tools HD Plus, and Dante Plus cards

• Configuration: Chassis only with integrated Thunderbolt, Pro Tools HD Plus, and Dante Plus connectivity cards; no I O modules included

• Display: Intuitive touchscreen interface

• Modularity: Supports up to 32 channels of analog I O via user-selected modular cards

• Power: 90 to 240 VAC, 50 to 60 Hz, 150 W

• Build: Designed and built in the USA

CONNECTIVITY OPTIONS:

• Platform: Thunderbolt, Pro Tools HD Plus, Dante Plus

• Thunderbolt Compatibility: Mac OS 10.10 and above

• Pro Tools HD HDX Compatibility: Mac or PC with Pro Tools HD 9 or greater

• Dante Compatibility: PC compatible

DIGITAL CONVERSION SPECIFICATIONS (AVAILABLE WITH I O MODULES):

• Analog to Digital THD plus N: minus 115 dB at 22 dBu unweighted

• AD Dynamic Range: 122 dB A weighted

• Digital to Analog THD plus N: minus 119 dB at 21 dBu unweighted

• DA Dynamic Range: 126 dB A weighted

• Frequency Response: 44.1 kHz to 20 kHz plus minus 0.05 dB

HEADPHONE OUTPUT:

• Connector: 1 stereo quarter inch front panel

• THD plus N: minus 110 dB at 19 dBu into 600 Ohm, minus 101 dB at 14 dBu into 32 Ohm

• Dynamic Range: 121 dB A weighted

• Output Design: Apogee Constant Current Drive

MONITOR CONTROL AND IMMERSIVE AUDIO:

• Thunderbolt Monitor Workflows: Supports up to 32 speaker outputs

• Immersive Audio Ready: Compatible with Dolby Atmos and Sony 360 Reality Audio

USE CASE:

• Ideal for professional studios needing maximum flexibility and redundancy with Thunderbolt, Pro Tools HD, and Dante platforms

• Requires additional modular I O cards for input and output functionality

SKU AND CONFIGURATION:

• SKU 1: Symphony I O MKII chassis

• SKU 2: Thunderbolt, Pro Tools HD Plus, and Dante Plus interface cards installed

• Configuration Type: Chassis with full connectivity, no analog or digital I O modules installed
