Ferrofish Pulse 8 AE

The Ferrofish PULSE8 AE is a high-performance 8 x 8 AD/DA and 16 x 16 ADAT converter crafted for seamless integration in studio and live environments. Designed with precision, it delivers pristine analog-to-digital and digital-to-analog conversion using premium ESS converters, supporting sample rates up to 192kHz. Its compact, rack-friendly form houses eight balanced TRS inputs and outputs, dual ADAT I/O ports, and comprehensive word clock sync options, making it a powerful central hub for any hybrid setup.

Equipped with a vivid front-panel display and intuitive controls, the PULSE8 AE offers real-time signal monitoring and effortless configuration. It also features a dedicated high-resolution headphone output with its own ESS DAC and adjustable amplification for accurate critical listening. RemoteFish software support via USB-C and MIDI I/O further enhances flexibility, while an expansion slot for future DSP upgrades ensures your system stays future-ready. Whether for tracking, mixing, or routing, the PULSE8 AE combines essential connectivity with exceptional audio quality in a streamlined, professional package.

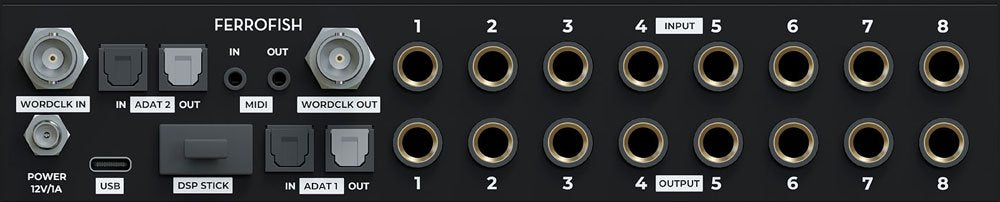

• 8 In / 8 Out Balanced Analog I/O: Clean, professional-grade analog connections via TRS jacks.

• 16-16 ADAT Digital I/O: Supports up to 192kHz with SMUX for full integration with digital setups.

• High-Quality ESS Converters: Delivers transparent, low-noise conversion with up to 120dB SNR.

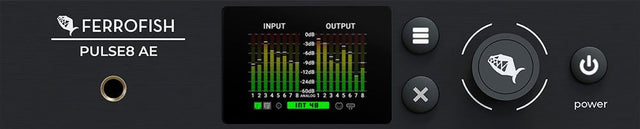

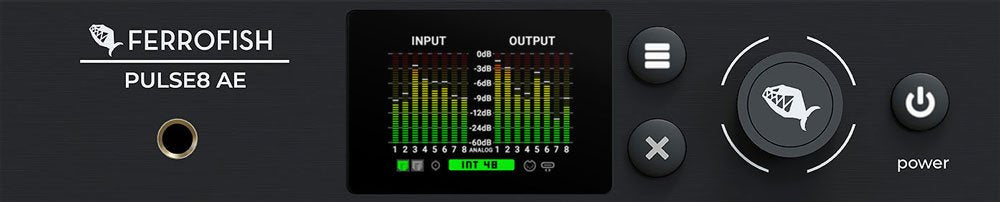

• Front Panel Visual Monitoring: Bright, high-resolution display with multicolor meters for real-time signal feedback.

• USB-C and MIDI Remote Control: Configure routing and settings via RemoteFish software; MIDI I/O for updates and sync.

• Precise Clocking Options: Word Clock I/O and internal precision clock with jitter reduction ensure solid timing.

• Powerful Headphone Output: Dedicated ESS DAC with 1dB-step control and multi-stage amplification for accurate monitoring.

• Compact and Rack-Ready: Space-saving 1U form factor suitable for studio racks or desktop use.

• Expandable via DSP Module: Future-ready with optional DSP slot for added processing capabilities.

• Built for Reliability: Robust design with self-resetting fuse, low power consumption, and high thermal tolerance.

ANALOG I/O:

• 8 balanced TRS inputs (quarter inch)

• 8 balanced TRS outputs (quarter inch)

• Analog input SNR: 112dB (typical)

• Analog input THD+N: -108dB (1kHz, 48kHz SR, A-weighted, typical)

• Analog output SNR: 120dB (typical)

• Analog output THD+N: -115dB (1kHz, 48kHz SR, A-weighted, typical)

ADAT CONNECTIVITY:

• 2 ADAT inputs

• 2 ADAT outputs

• Up to 16 channels at 48kHz

• Up to 8 channels at 96kHz via SMUX/2

• Up to 4 channels at 192kHz via SMUX/4

CLOCKING:

• Word Clock input and output (BNC)

• Internal 125MHz high-precision oscillator

• Initial accuracy +/-1.5ppm

• Drift over temperature +/-2.5ppm

• Aging +/-1ppm

• Digitally controlled PLL with active jitter reduction

HEADPHONE OUTPUT:

• 6.3mm jack

• Dedicated ESS DAC

• 4-stage amplification

• Digital volume control in 1dB steps

MONITORING AND CONTROL:

• High-resolution front display with multicolor signal meters

• Control knob and buttons for configuration

• USB-C port for use with RemoteFish software (Mac and PC)

• MIDI input and output

POWER:

• External 12V DC power supply

• Connector: 2.54mm barrel jack with locking screw

• Nominal consumption: 12VA

• Standby: Below 1VA

• Polyfuse (self-resetting)

• Included power supply: 12V 3A or 12V 1A

DSP AND EXPANDABILITY:

• Expandable via optional DSP stick

PHYSICAL:

• Form Factor: Compact 1U

• Dimensions: 13.5cm (D) x 22cm (W) x 4.4cm (H) (excluding knobs and connectors)

• Weight: 1kg

• Operating Temperature: +5 degree C to +45 degree C

• Humidity: <75%, non-condensing
