Midas AS88

The Midas AS88 is a powerful, rackmountable interface designed to convert dual high-speed HyperMAC connections into eight fully redundant AES50 ports, and vice versa, while supporting up to 192 bidirectional channels at 96 kHz. Engineered for ultra-fast switching and system stability, it is the ideal backbone for large-scale live sound and broadcast setups.

Designed to complement the Midas HD96 console, the AS88 enables full redundancy across both Snake ports, enhancing both system capacity and reliability. It leverages advanced FPGA-based technology for real-time failover, ensuring uninterrupted audio in the event of cable or connection loss.

Connectivity includes dual copper and optical HyperMAC inputs, 16 RJ45 AES50 outputs, and an Ethernet port for network integration. The Microprocessor-controlled redundancy management communicates with the console to indicate cable states, giving engineers full transparency and control.

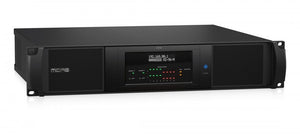

Built into a rugged 2U chassis, the AS88 features dual universal power supplies with independent inlets, a factory reset button, LED status indicators for every critical function, and robust RJ45 and optical connectors. It is purpose-built to withstand the rigors of touring while maintaining exceptional performance in mission-critical environments.

Whether you're working in touring, festivals, or high-end install environments, the AS88 offers uncompromising audio transmission, seamless integration, and fail-safe operation-all in a space-efficient, road-ready design.

• Dual HyperMAC to AES50 Conversion: Seamlessly converts two high-bitrate HyperMAC connections into eight fully redundant AES50 ports, and vice versa.

• High Channel Capacity: Supports up to 192 bidirectional audio channels at 96 kHz for large-scale digital audio networks.

• Full Redundancy Support: Enables full failover for connected systems using advanced FPGA-based switching and dual redundancy across Snake ports.

• Compact and Rugged Build: Durable 2U rackmountable chassis designed for the demands of touring and live sound.

• Universal Power Supply: Dual redundant auto-ranging switch-mode power supply ensures reliable operation worldwide.

• Industry-Standard Connectivity: Uses RJ45 connectors for AES50 and copper HyperMAC, and dual-fiber optical connectors for optical HyperMAC.

• Easy System Monitoring: Includes status LEDs for each AES50 port, Snake connection, power supply, and Ethernet.

• Clock Flexibility: Can be clocked from incoming AES50 or HyperMAC ports to fit into various digital audio environments.

• Fast and Reliable Switching: Engineered for ultra-fast audio routing and dependable failover in professional audio systems.

• Ideal for Live Sound Systems: Designed to integrate seamlessly with the Midas HD96 console and other networked audio setups.

GENERAL SPECIFICATIONS:

• Product Type: Dual HyperMAC to Dual Redundant AES50 Converter

• Form Factor: 2U rackmountable

• Architecture: 2 In / 16 Out (Dual redundancy)

• Channel Capacity: Up to 192 bidirectional channels at 96 kHz

• Clocking: From incoming AES50 or HyperMAC ports

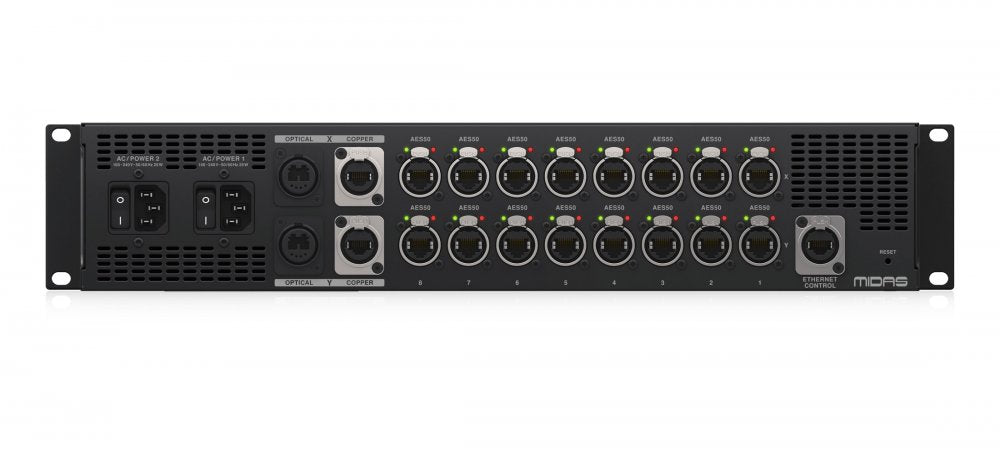

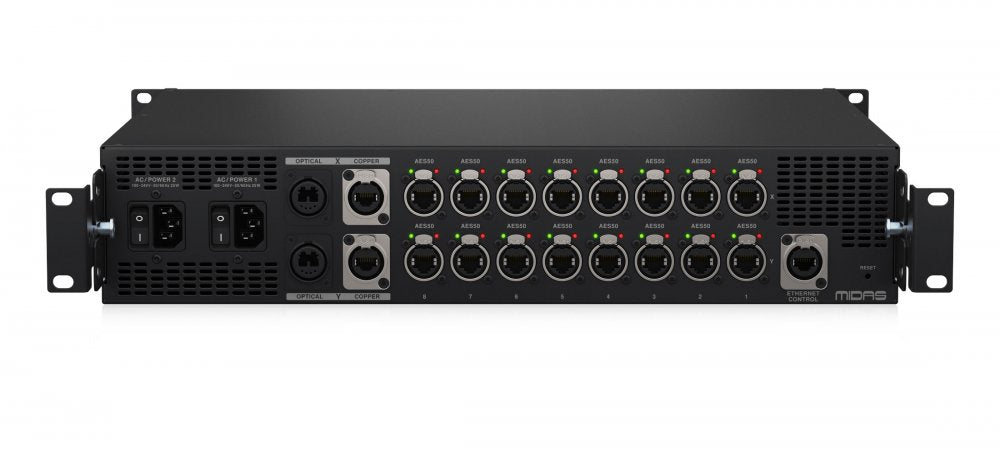

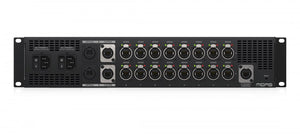

CONNECTIVITY - INPUTS:

• HyperMAC Optical: 2 x standard connectors (rear panel)

• HyperMAC Copper: 2 x standard connectors (rear panel)

• Ethernet: 1 x RJ45 connector (rear panel)

CONNECTIVITY - OUTPUTS:

• AES50: 16 x RJ45 sockets (rear panel)

POWER & CONTROL:

• Power Switches: 2 x rocker switches (rear panel)

• Power Inlets: 2 x IEC C13 connectors (rear panel)

• Power Indicator: Blue LED (front panel)

• Power Supply: Dual redundant auto-ranging universal switch-mode

• Factory Reset: Pushbutton (rear panel)

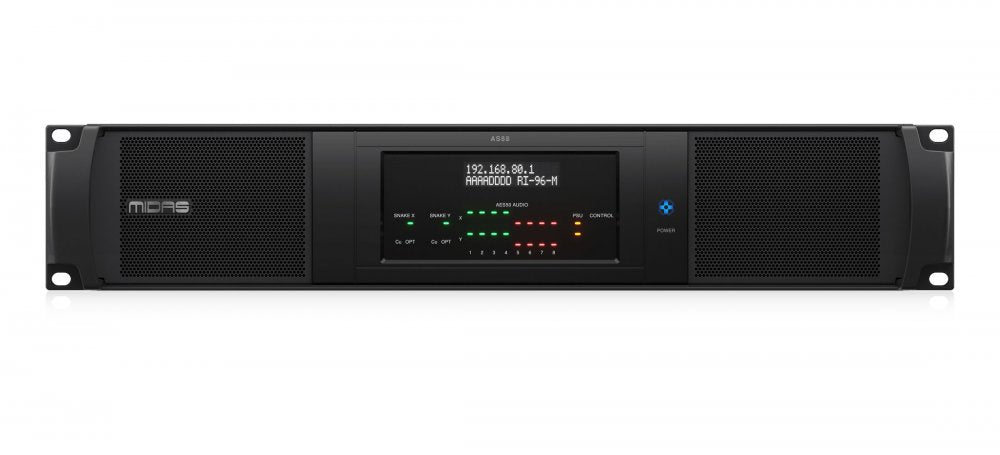

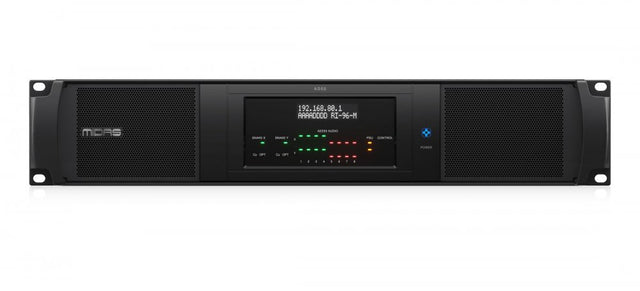

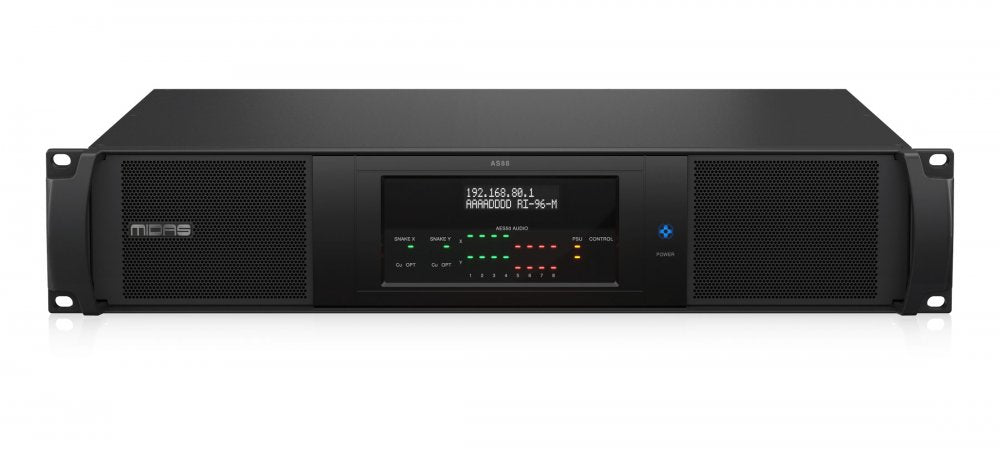

STATUS INDICATORS:

• Snake X Status: 2 x green / 2 x red LEDs

• Snake Y Status: 2 x green / 2 x red LEDs

• PSU Status: 2 x green / 2 x red LEDs

• AES50 Status: 16 x green / 16 x red LEDs

• Ethernet Status: 1 x green LED

DISPLAY:

• Display Type: 2 x 20 character display

POWER REQUIREMENTS:

• Voltage Range: 100 - 240 V AC, 50 / 60 Hz

• Power Consumption: 2 x 25 W maximum (dual redundancy)

PHYSICAL CHARACTERISTICS:

• Operating Temperature Range: 5 degrees C to 45 degrees C (41 degrees F to 113 degrees F)

• Dimensions (H x W x D): 88 x 440 x 483 mm (3.46 x 17.32 x 19.01 inches)

• Weight: 6.59 kg (14.53 lbs)
