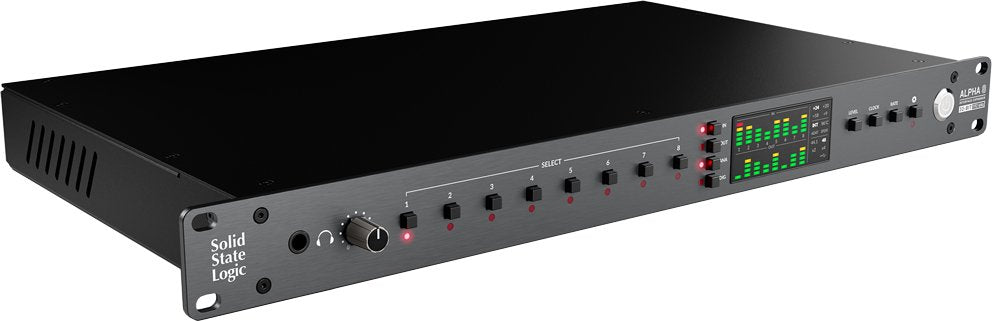

Solid State Logic Alpha 8

The ultimate audio interface expander Building on the acclaimed Alpha Link range, ALPHA 8 is an 8-in/8-out professional-grade analogue to digital, digital to analogue converter, perfect for expanding your audio interface via ADAT and S/PDIF. Alternatively, you can configure ALPHA 8 to address all analogue and digital I/O simultaneously via USB, giving you an 18-in/18-out audio interface. Featuring class-leading conversion, flexible routing, and impeccable audio performance, ALPHA 8 unlocks the full potential of your setup. The compromise is over
Using next-generation 32-bit/192 kHz converters, ALPHA 8 brings SSL-grade audio performance to your studio. With huge dynamic range, stunningly low THD+N and crosstalk, and exceptionally low noise floor, ALPHA 8 delivers line-level heaven for your analogue outboard processing, samplers, synths and drum machines. The compromise is over " capture your sound with the quality it deserves. Input Dynamic Range: 120 dB, Output Dynamic Range: 123 dB Input THD+N: -110 dB, Output THD+N "108 dB

Analogue agility and digital dominance
ALPHA 8 is capable of many different routing configurations to suit your specific needs, making sure you can get the most out of all the digital and analogue I/O it offers. Whether you need a simple bidirectional Analogue <> ADAT/SPDIF converter, an aggregate 18-in/18-out USB audio interface, or a mixture of the two, ALPHA 8 provides flexible routing options for its analogue and digital I/O.

The great connector
The operating level of each analogue input and output can be individually adjusted to +9, +18, +20 or +24 dBu operating levels, ensuring optimal signal integrity and maximising headroom for devices connected to ALPHA 8. Whether it's 19" rack gear, analogue mixers, 500-series modules, or monitor controllers, ALPHA 8 ensures every connection to your equipment is fully optimised. On the digital side, Word Clock in and out, ADAT, and S/PDIF clocking options ensure ALPHA 8 provides outstanding digital audio handling, guaranteeing jitter-free, rock-solid integration in your studio environment whilst elevating the performance of your creative space.

SSL 18 + ALPHA 8
While ALPHA 8 is the ultimate audio interface expander for producers and engineers looking to bring SSL sound and quality to their existing set-up, ALPHA 8 is also the perfect companion to SSL 18. Instantly expand SSL 18's I/O via ADAT adding 8 channels (1 x ALPHA 8) or 16 channels (2 x ALPHA 8s). Perfect for effortlessly integrating additional analogue outboard processing, analogue mixers and more.

Expand your workflow
 ALPHA 8's flexible analogue and digital routing unlocks a multitude of workflow possibilities. Create hardware insert paths for 500 Series modules, outboard EQs, compressors, or hardware FX. Use the S/PDIF I/O for integrating external metering or amp simulators. Alternatively, make Alpha 8 your primary interface, seamlessly connecting analogue and digital devices to your DAW via USB-C. For electronic music producers, ALPHA 8's outputs are capable of outputting Control Voltage to control synthesisers, modular rigs and CV-enabled FX pedals.

CA Complete Access 6 Month Trial Included with ALPHA 8 As an eligible SSL interface owner, claim 6 months FREE Complete Access subscription. Featuring every plug-in from Solid State Logic, Slate Digital and Harrison Audio, Complete Access gives you all of the software tools you need to make your next hit.

• High-Performance Audio Conversion: 8-in/8-out professional-grade AD/DA converter with next-generation 32-bit/192 kHz conversion for superior sound quality.

• Flexible Connectivity: Works with analogue, ADAT, S/PDIF, and USB I/O, allowing seamless integration with various studio setups.

• Expandable Audio Interface: Can function as an 18-in/18-out USB audio interface or as an expander for existing setups, including SSL 18.

• Superior Sound Quality: Delivers high dynamic range, low distortion, and low noise floor for pristine audio recording and playback.

• Customizable Operating Levels: Adjust analogue input and output levels (+9, +18, +20, or +24 dBu) to match connected gear.

• Advanced Digital Synchronization: Features Word Clock in/out and ADAT/S/PDIF clocking for jitter-free, rock-solid audio performance.

• Control Voltage Capability: DC-coupled outputs allow for sending control voltages to synths, modular rigs, and CV-enabled effects.

• Comprehensive Metering & Monitoring: Front-panel input/output meters and a high-current headphone output for real-time monitoring.

• Bundled Software & Plugins: Includes SSL Production Pack (worth over $1400) and a 6-month trial of Complete Access for premium audio tools.

• Ideal for Studio Expansion: Perfect for integrating outboard gear, analogue mixers, and hardware effects into your DAW workflow.

GENERAL:

• High-performance 8 x 8 AD/DA converter

• Designed as an audio interface expander

• 18-in / 18-out USB audio interface when configured via USB

• Class-leading 32-bit / 192 kHz conversion

• Low THD+N, high dynamic range, and minimal crosstalk

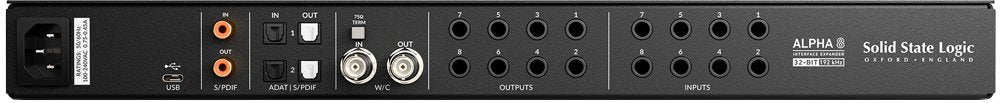

ANALOGUE I/O:

• 8 balanced line inputs and outputs

• Input dynamic range: 120 dB

• Output dynamic range: 123 dB

• Input THD+N: -110 dB

• Output THD+N: -108 dB

• Configurable operating levels: +9, +18, +20, +24 dBu

• DC-coupled outputs for control voltage (CV) integration with synths and modular rigs

DIGITAL I/O:

• 10 digital inputs and outputs

• 8 channels of ADAT I/O

• 2 channels of S/PDIF I/O

• S/PDIF available via coaxial or optical connectors

• Supports up to 2 channels of S/PDIF to ADAT and vice versa

USB FUNCTIONALITY:

• Functions as an aggregate USB audio interface

• Allows recording and playback of all 8 analogue and 10 digital I/O via USB

CLOCKING & SYNCHRONIZATION:

• Word Clock input and output with termination switch

• Supports clocking from internal, ADAT, S/PDIF, or Word Clock sources

• Ensures jitter-free, rock-solid synchronization

MONITORING & CONTROLS:

• High-current front panel headphone output for confidence checking

• Three headphone settings: Standard, High Impedance, High Sensitivity

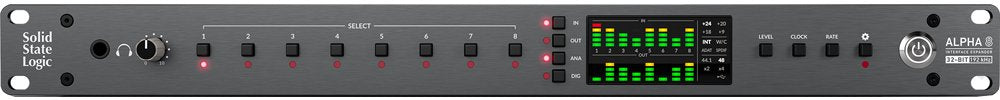

• Dedicated front panel input and output meters

INTEGRATION & EXPANSION:

• Compatible with SSL 18 for easy I/O expansion via ADAT

• Enables additional analogue outboard processing integration

• Can be used for hardware inserts, metering, amp simulation, or as a primary interface

SOFTWARE & BUNDLES:

• SSL Production Pack included (worth over $1100), featuring virtual instruments, plug-ins, samples, and DAW tools

• 6-month Complete Access trial with plug-ins from SSL, Slate Digital, and Harrison Audio
