Sonifex AVN-DIO02

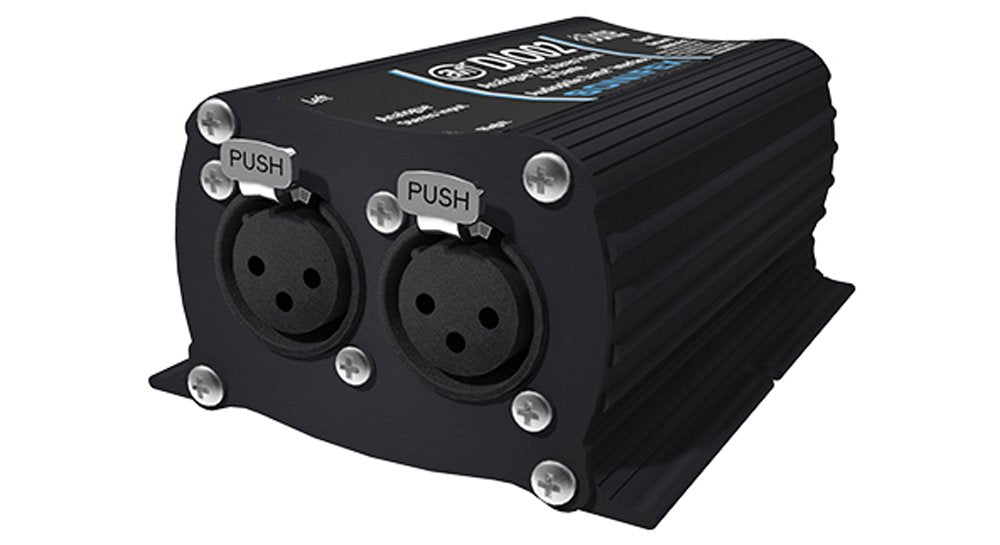

The Sonifex AVN-DIO02 is a compact audio interface designed to integrate legacy analog equipment into Dante Audio-over-IP (AoIP) networks. It features two balanced analog XLR inputs, allowing for seamless connection of stereo analog audio sources. A Neutrik EtherCon connector provides a robust link to the Dante network, ensuring reliable data transmission. The device offers an impressive dynamic range of 120dB, delivering high-quality audio conversion suitable for professional applications. Configuration is managed via Dante Controller software, facilitating straightforward integration into existing network setups. Power is supplied through Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power sources.

• Dante to AES3 Conversion: Converts up to 2 channels of Dante AoIP audio to AES3 digital format.

• High-Quality Audio Output: Ensures low-latency, professional-grade digital audio transmission.

• Balanced XLR Output: Features a single AES3 output via XLR for seamless integration with digital audio systems.

• Compact and Durable Design: Lightweight and robust for use in studios, live sound, and broadcast environments.

• Power over Ethernet (PoE): Simplifies power and data management with PoE through an etherCON connection.

• Dante and AES67 Compatibility: Fully integrates with Dante and AES67 standards for flexible networking.

Perfect for professionals seeking reliable Dante to AES3 audio conversion in a compact, portable format.

• Analog Inputs: Two balanced XLR inputs with an input impedance greater than 10kiloohms.

• 0dBFS Line-Up Level: +18dBu.

• Frequency Response: 20Hz to 20kHz, +0/-0.2dB (600ohms load, referenced at 1kHz).

• Total Harmonic Distortion + Noise (THD+N): Less than -118dBFS at -12dBu input level, measured over 20Hz to 20kHz with a 20kHz bandwidth.

• Dynamic Range: 120dB with a 20kHz bandwidth.

• Crosstalk: Less than -110dB.

• Common Mode Rejection: Greater than 60dB at 1kHz.

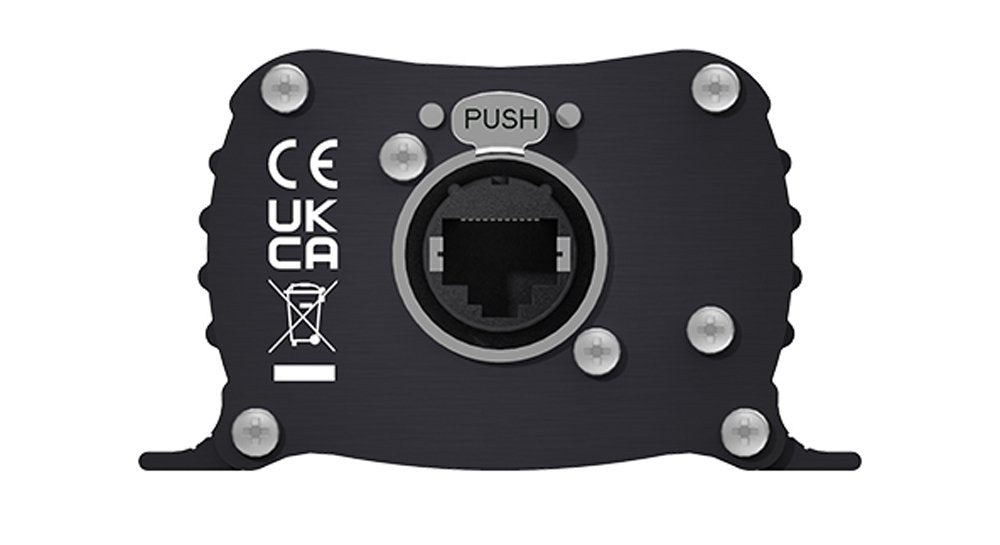

• Network Interface: Neutrik EtherCon Ethernet connection for direct integration into Dante AoIP networks.

• AoIP Compliance: Fully Dante compliant, AES67 compatible, and Dante Domain Manager compliant.

• Sample Rates: Supports 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.

• Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 3W.

• Physical Dimensions: 10.9cm (W) x 7.3cm (D) x 4.3cm (H).

• Weight: Net weight of 0.2kg; gross weight of 0.3kg.
