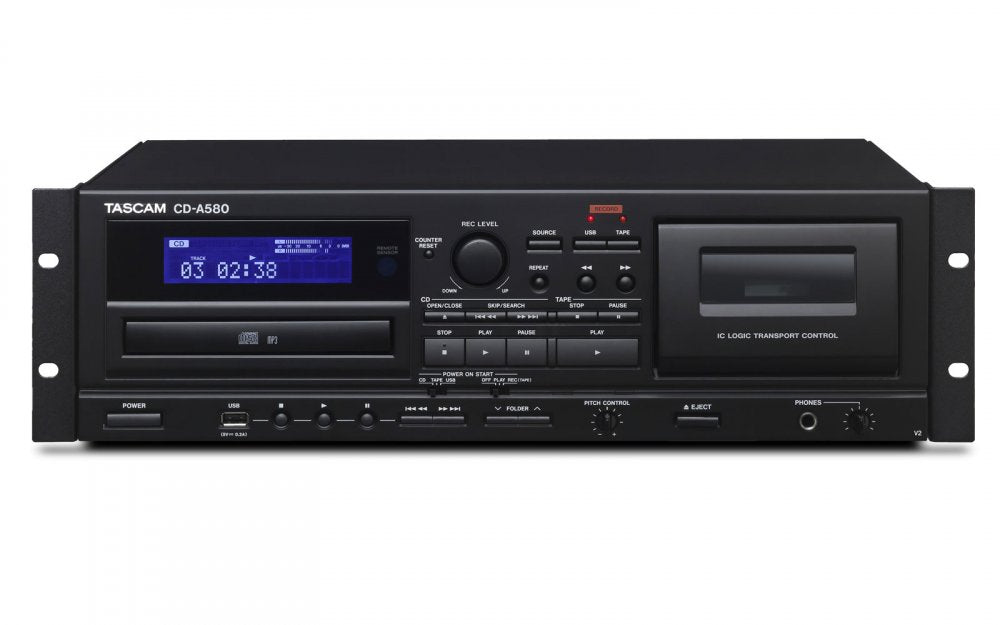

Tascam CD-A580-V2

The TASCAM CD-A580 v2 is a powerful all-in-one audio solution designed to accommodate playback, recording, and archiving across multiple formats-CD, cassette, and USB. Housed in a sleek 3U rack-mountable chassis, it's tailored for professional environments such as schools, churches, restaurants, DJ booths, and rehearsal studios. Its ability to cross-record between formats (CD to cassette, cassette to USB, etc.) makes it a valuable tool for both analog enthusiasts and those transitioning to digital archiving.

The cassette deck supports multiple tape types and offers +/-10% pitch control for playback, while the CD player handles both audio CDs and MP3 files on CD-R/RW with a variety of playback modes including shuffle and repeat. Meanwhile, the USB recorder/player lets you record directly from CD, cassette, or line input to MP3 format, or play back MP3 files with folder support. With user-friendly controls, a wireless remote, and front-panel headphone output with volume control, the CD-A580 v2 blends convenience, versatility, and sound performance into one complete system.

• Plays CDs, cassettes, and MP3 files from USB for maximum format flexibility

• Records audio from CD, cassette, or line-in directly to USB in MP3 format

• Allows dubbing from CD to cassette or USB, and cassette to USB

• Features +/-10% pitch control for cassette playback

• Supports CD-R, CD-RW, and MP3 CD playback with shuffle, repeat, and program modes

• Offers manual or automatic track splitting during recording

• Built-in anti-shock memory and headphone output with volume control

• RCA inputs/outputs and 3U rack-mountable design for easy integration

• Includes remote control for convenient operation

GENERAL SPECIFICATIONS:

• Product Name CD A580 V2

• Functions CD Player Cassette Deck USB Recorder Player

• Display LC with level meters

• Remote Control RC 1329 included

• Rack Mountable 3U chassis

• Power Supply AC 230 V 50 to 60 Hz

• Power Consumption 13 W

• Dimensions 483 x 139 x 290 mm

• Weight 6.0 kg

• Operating Temperature 5 to 35 C

CASSETTE DECK:

• Transport Control IC Logic

• Pitch Control plus minus 10 percent

• Supported Cassettes C10 to C90

• Playback Types Type I Type II Type IV

• Recording Types Type I Type II

• Tape Speed 4.76 cm per second

• Fast Wind Time Approx 120 sec C60

• Wow and Flutter 0.25 percent WRMS

• Frequency Response 50 Hz to 12.5 kHz plus minus 4 dB Chrome Normal

• SNR 59 dB A weighted

• Line Input RCA minus 4.5 dBu 0.46 V impedance greater than 50 k ohm

• Line Output RCA minus 4.5 dBu 0.46 V impedance greater than 50 k ohm

CD PLAYER:

• Supported Media CD CD R CD RW 12 cm 8 cm

• Audio Format CD DA

• Data Format MP3 ISO 9660 Level 1 and 2

• Sampling Frequency 44.1 kHz CD DA 16 to 48 kHz MP3

• Bit Rate 8 to 320 kbit per second MP3

• Playback Modes Shuffle Program Repeat Single All Program

• Anti Shock Memory 2 seconds

• Frequency Response 20 Hz to 20 kHz plus minus 2 dB

• THD plus N less than 0.02 percent 1 kHz

• SNR greater than 87 dB IHF A

• Max Output Level plus 6 dBV 2 V

USB RECORDER PLAYER:

• Format MP3

• Playback Sampling Rate 16 to 48 kHz

• Playback Bit Rate 8 to 320 kbit per second

• Recording Sampling Rate 44.1 kHz

• Recording Bit Rate 128 kbit per second

• Folder Depth Support up to 8 levels

• Playback Frequency Response 20 Hz to 20 kHz plus minus 2 dB

• Recording Frequency Response CD to USB 20 Hz to 15 kHz plus minus 3 dB

• Recording Frequency Response Line In to USB 100 Hz to 15 kHz plus minus 3 dB

• SNR greater than 85 dB

• USB Port USB 2.0 Full Speed

• Connector USB A type

HEADPHONES OUTPUT:

• Connector 6.3 mm stereo jack

• Output Level 10 mW plus 10 mW

• THD plus N 0.1 percent 32 ohm CD Monitor

INCLUDED ACCESSORIES:

• Remote Control RC 1329

• 2 AAA Batteries

• Rack Mounting Screw Kit

• Owner Manual
