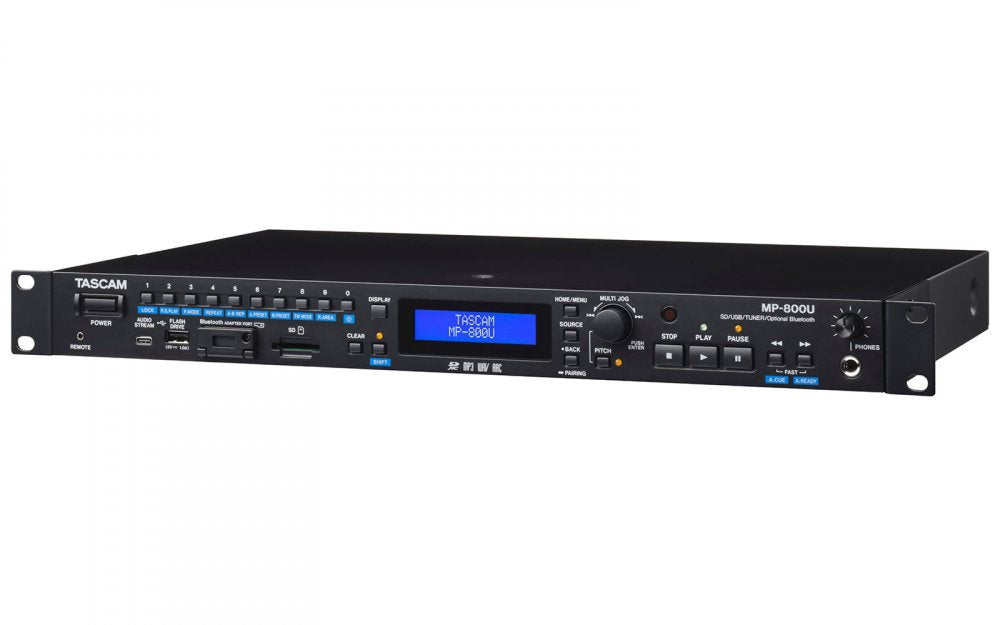

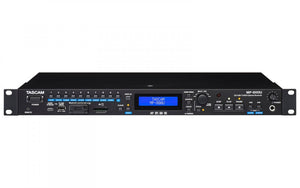

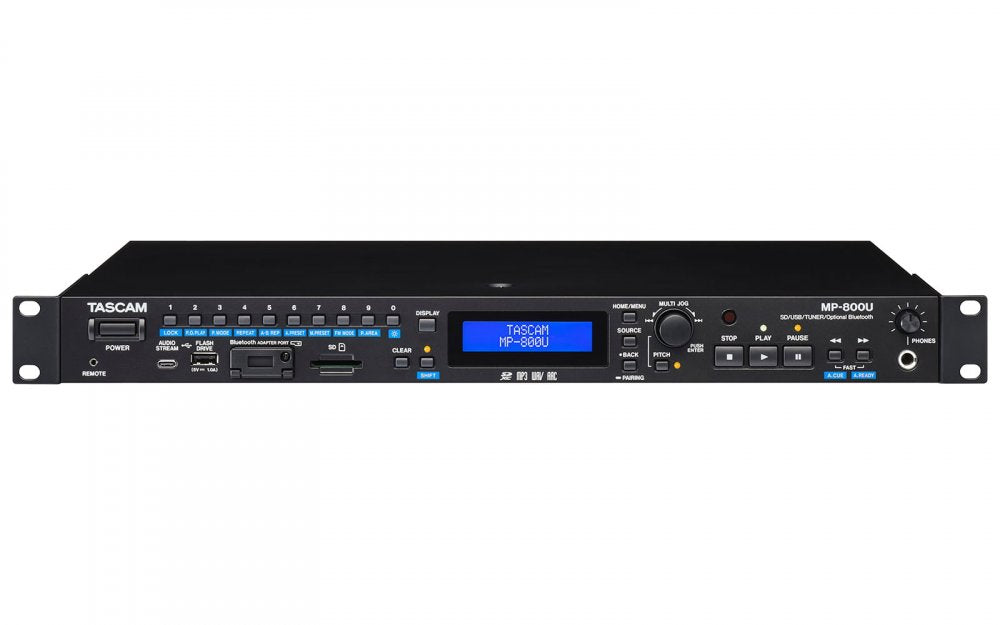

Tascam MP-800U

The MP-800U is a sleek, 1U rackmount media player that blends professional-grade playback versatility with modern convenience. Whether you're outfitting a hospitality venue, corporate AV setup, or retail space, this all-in-one player provides reliable performance through multiple playback sources including SD cards, USB flash drives, Bluetooth audio, FM radio, and USB DAC functionality.

Designed with both integrators and end-users in mind, the MP-800U features balanced XLR and unbalanced RCA outputs, a dedicated tuner output, and flexible level adjustments. Advanced playback functions like Auto Cue, Pitch Control, Power-on-Play, and Key Original ensure smooth transitions and professional control. With optional integration into Q-SYS environments and remote operation via Bluetooth or Ethernet, it fits seamlessly into modern AV systems.

• Multi-Source Playback: Plays audio from SD cards, USB drives, FM radio, and Bluetooth (with optional adapter).

• USB DAC Functionality: Streams high-quality audio from computers and mobile devices via USB-C.

• Built-In FM Tuner: Offers direct radio playback with dedicated tuner output and 20 preset stations.

• Balanced & Unbalanced Outputs: Includes XLR and RCA outputs with adjustable levels for flexible system integration.

• Pro Playback Tools: Features Auto Cue, Auto Ready, Pitch Control, Key Original, Fade In/Out, and Power-on-Play.

• Remote & App Control: Control playback with included remote or optional Bluetooth app (TASCAM MCC).

• External Integration Options: Optional Ethernet card enables Q-SYS platform compatibility and Telnet control.

• Track Access & Safety: Direct track selection via number keys and panel lock to prevent mishandling.

• Compact Rackmount Design: 1U size fits seamlessly into professional AV racks and installations.

GENERAL SPECIFICATIONS:

• SD USB player with FM tuner Bluetooth receiver and USB DAC

• 1U rackmount size

• Power supply AC 100 to 240V 50 or 60Hz

• Power consumption 14W

• Dimensions 482.8 x 46.5 x 297.1 mm

• Weight 2.7 kg

• Operating temperature 0 to 40 degrees Celsius

SUPPORTED MEDIA AND FORMATS:

• SD card SDHC SDXC 512MB to 512GB

• USB flash drives 512MB to 512GB

• File systems FAT16 FAT32 exFAT

• Supported formats WAV 44.1kHz and 48kHz 16 or 24bit LPCM

• MP3 44.1kHz and 48kHz 32 to 320kbps VBR

• AAC 44.1kHz and 48kHz 32 to 320kbps VBR MPEG4 AAC LC

• Max file size 4GB

• Max files 999

• Max folder depth 16

• Max file path length 260 characters

AUDIO PERFORMANCE:

• Frequency response 20Hz to 20kHz plus 0.5 dB minus 1.0 dB

• Distortion 0.005 percent or less

• Signal to noise ratio 95 dB or higher

• Dynamic range 95 dB or higher

• Channel separation 95 dB or higher

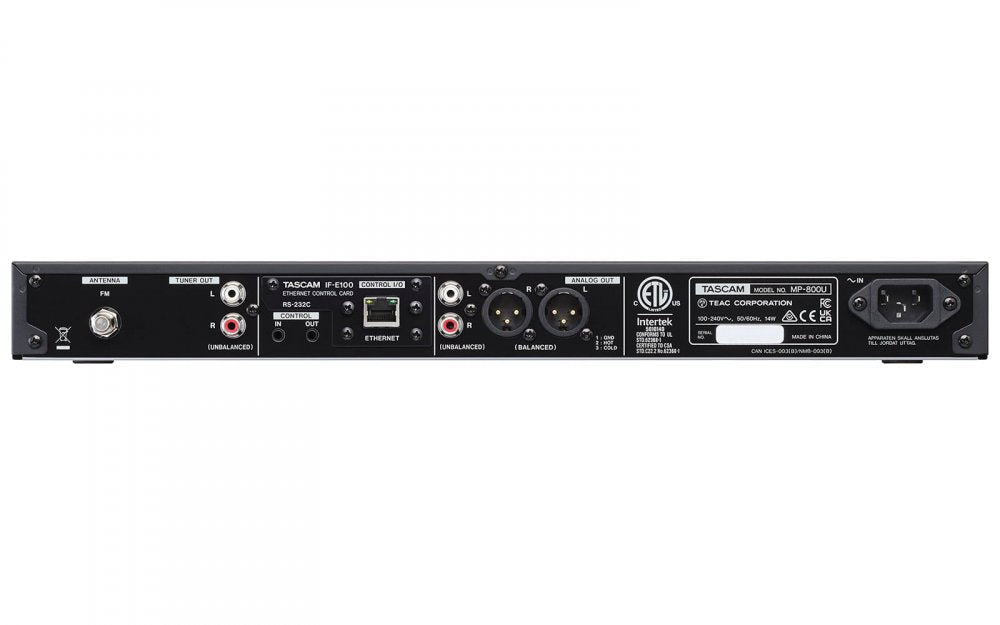

ANALOG OUTPUTS:

• Balanced XLR output +4 dBu 1.23 Vrms

• Max XLR output +20 dBu 7.75 Vrms

• XLR output impedance 100 ohms

• Unbalanced RCA output -10 dBV 0.316 Vrms

• Max RCA output +6 dBV 2.0 Vrms

• RCA output impedance 210 ohms

TUNER OUTPUT:

• RCA output -10 dBV 0.316 Vrms

• Max tuner output +6 dBV 2.0 Vrms

• Output impedance 210 ohms

HEADPHONE OUTPUT:

• Connector 6.3mm stereo jack

• Max output 20 mW plus 20 mW at 32 ohms

CONTROL AND CONNECTIVITY:

• USB DAC via front USB Type-C port

• Bluetooth audio with optional AK-BT2 adapter

• Control via free TASCAM MEDIA CONTROL CENTER app

• Ethernet control with optional IF-E100 expansion card

• Remote start with optional RC-20

• CONTROL I/O 3.5mm and 2.5mm TRS for fader start stop and tally

• USB audio streaming USB 2.0 high speed 480 Mbps USB audio 2.0 class compliant

• Remote port 2.5mm TRS

• CONTROL IN 3.5mm TRS active low trigger

• CONTROL OUT 3.5mm TRS open collector

TUNER SPECIFICATIONS:

• Frequency range FM 87.5 to 108.0 MHz

• Antenna connector F-type jack

PLAYBACK FEATURES:

• Auto cue and auto ready

• Power on play

• Incremental play

• Key original playback speed without pitch change

• Fade-in fade-out

• Repeat including A-B repeat all and single

• Direct track access via number keys

• Panel lock disables front buttons

• Output level adjustment per output

INCLUDED ITEMS:

• MP-800U main unit

• Power cord

• Wireless remote control RC-MP800

• AAA batteries x2

• FM antenna

• Rack mounting kit with screws and washers

• Security screw

• TASCAM ID registration guide

• Safety guide including warranty
