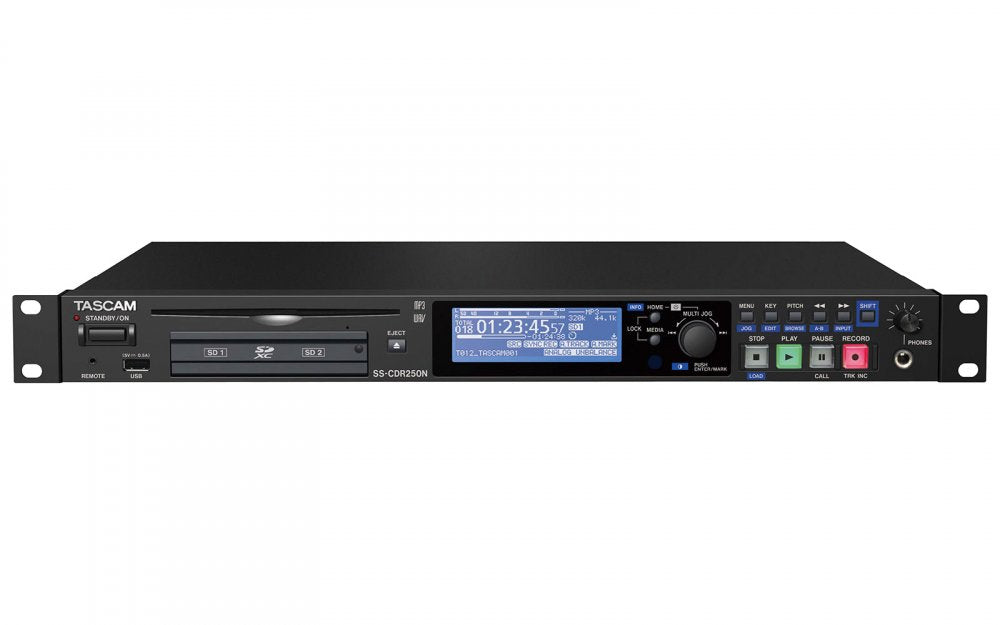

Tascam SS-CDR250N

The TASCAM SS-CDR250N is a professional-grade 2-channel CD, SD, and USB recorder/player designed to streamline high-quality audio capture, playback, and file management across a networked environment. Ideal for broadcast studios, conference halls, and corporate AV setups, this next-generation unit integrates advanced automation, network control, and redundancy features to ensure efficient operation with minimal oversight. With support for recording up to 96kHz/24-bit and compatibility across multiple media types-including CD, SDXC, and USB flash drives-the SS-CDR250N combines versatility with reliability.

One of its standout features is the built-in FTP client, which allows automatic file uploads and downloads, removing the need for manual data transfers. Its event list function can be programmed for timed recording, playback, or file retrieval, making it perfect for unattended operation in environments like retail or corporate settings. Dual SD card slots offer mirror and relay recording for added security, while the inclusion of remote control apps across major platforms (iOS, Android, Windows, Mac) ensures full operability from virtually any device. Whether it's for live event capture, scheduled announcements, or centralized audio distribution, the SS-CDR250N is engineered to deliver seamless, high-quality performance.

• Multi-Format Recording and Playback: Records and plays audio from SD cards, USB drives, and CDs.

• Network File Management: Automatically uploads or downloads audio files via FTP without needing to remove media.

• Timed Automation: Scheduled recording, playback, and downloads based on preset event lists.

• Remote Control Access: Control the unit remotely using dedicated apps for iOS, Android, Windows, and Mac.

• Dual SD Card Slots: Supports backup and relay recording for uninterrupted sessions.

• High-Resolution Audio: Supports playback and recording of high-quality audio files.

• Automatic File Protection: Safeguards recordings by automatically closing files during power outages.

• Mic Input with Phantom Power: Accepts condenser microphones directly without extra gear.

• Playback Versatility: Offers functions like auto cue, pitch control, ducking, repeat modes, and incremental play.

• Link Playback: Syncs playback between two units for redundancy or backup.

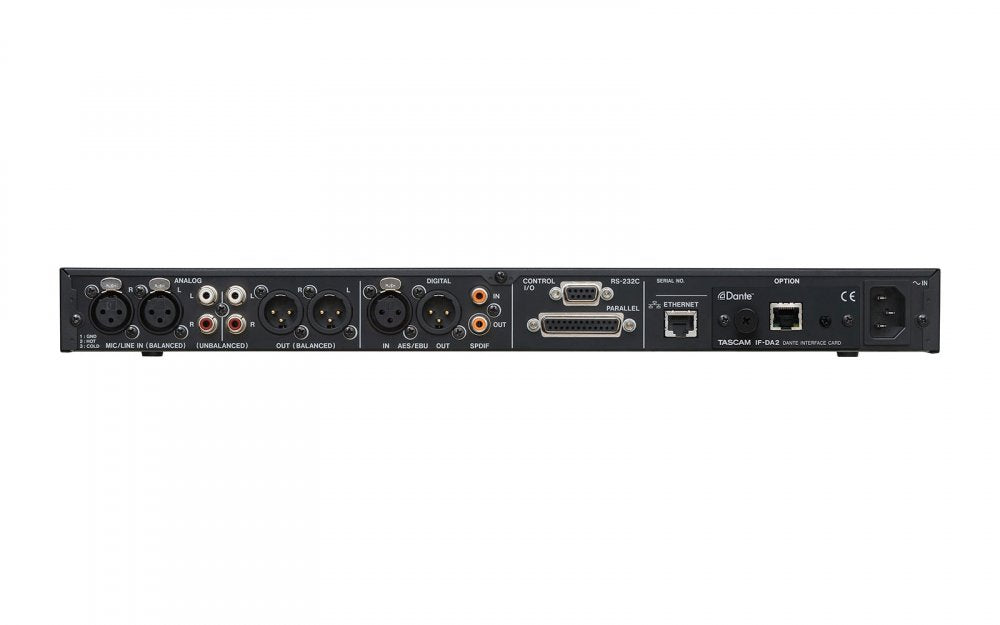

• Flexible Input/Output Options: Includes XLR, RCA, AES/EBU, and S/PDIF connections for both analog and digital use.

• Event Accuracy: Maintains accurate timing for scheduled tasks using SNTP synchronization.

• Compact and Rack-Mountable: Fits in a standard 1U rack space, suitable for professional installations.

GENERAL SPECIFICATIONS:

• 2 channel CD SD USB recorder player with network capability

• 1U rackmount size 482.6 x 45 x 300.5 mm

• Weight 3.2 kg 7.1 lbs

• Power consumption 22W

• Operating temperature 5 to 35 degrees Celsius

RECORDING MEDIA:

• SD card 512MB to 2GB

• SDHC card 4GB to 32GB

• SDXC card 64GB to 128GB

• USB flash memory 512MB to 128GB

• CD R CD RW

AUDIO FORMATS SUPPORTED:

• WAV 44.1k 48k 96kHz 16 24 bit SD USB CD Data

• MP3 44.1k 48kHz 64k to 320kbps

• CD DA 44.1kHz 16 bit

AUDIO CHANNELS:

• 2 stereo 1 mono

ANALOG AUDIO INPUTS:

• RCA unbalanced minus 10dBV nominal plus 6dBV max 10k ohm impedance

• XLR balanced plus 4dBu to plus 24dBu nominal max 10k ohm impedance

• Mic input XLR plus 4dBu max minus 70dBu min 2.2k ohm impedance plus 48V phantom power

ANALOG AUDIO OUTPUTS:

• RCA unbalanced minus 10dBV nominal plus 6dBV max 200 ohm impedance

• XLR balanced plus 4dBu to plus 24dBu nominal max 200 ohm impedance

DIGITAL AUDIO INPUTS:

• AES EBU XLR 44.1k 48k 96kHz 110 ohm impedance

• S PDIF RCA 32k to 96kHz

DIGITAL AUDIO OUTPUTS:

• AES EBU XLR 44.1k 48k 96kHz 110 ohm impedance

• S PDIF RCA 32k to 96kHz

CONTROL IO:

• Remote front 2.5mm TRS jack RC 3F RC 20 compatible

• RS 232C D sub 9 pin

• Parallel D sub 25 pin

• Phones 6.3mm stereo jack 45mW plus 45mW max output

NETWORK AND REMOTE CONTROL:

• FTP client server for file upload download

• SNTP client for time sync

• iOS Android Windows Mac control via SS250 CONTROL app

• Event List function for timed recording playback download

• Optional Dante IO via IF DA2 card

RECORDING FEATURES:

• Up to 96kHz 24 bit resolution

• Dual SD card slots mirror relay recording

• Power on record auto mark auto track PRE REC auto level control

• Direct recording compressor limiter included

PLAYBACK FEATURES:

• Program Random Single playback modes

• All repeat A B repeat Call function Incremental play

• Auto Cue Auto Ready Ducking function Pitch Key control

• Monaural mix playback EOM notification mark setting

AUDIO PERFORMANCE:

• Frequency response 20Hz to 20kHz plus minus 0.5dB 20Hz to 40kHz plus 0.5 minus 3dB

• Total harmonic distortion 0.002 percent or less

• Signal to noise ratio 106dB or more

• Dynamic range 106dB or more

• Crosstalk 100dB or more

• Equivalent input noise minus 125dBu or less 40 ohm 20kHz LPF

INCLUDED ACCESSORIES:

• Power cord

• TASCAM RC 10 remote control with CR2025 battery

• Rackmount screw kit

• Security screw kit

• TASCAM ID registration guide

• Owners Manual with warranty
