Remote Audio Speakeasy R1

Its low current draw (55mA at idle) and compact light-weight enclosure make the SpeakEasy™ R1 ideal for remote audio production, yet the R1 has the volume needed for use in facility equipment rooms.

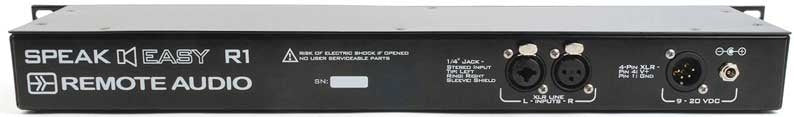

The R1's line level inputs are for standard line-level signal ratings of -10dbV to +4dBu, or the signal from a stereo headphone jack. Two XLR inputs allow for a stereo input signal. In addition, an XLR / ¼" combo jack allows for a stereo input signal on the 1/4 connector, allowing a single cable to feed the SpeakEasy™ R1. This provides a convenient way to insert the SpeakEasy™ R1 into an existing cart setup with a headphone feed from a mixer using a ¼" TRS to TRS cable. Two DC input connectors are provided for convenience: a 4-pin XLR (Pin 4: V+, Pin 1: Gnd) and a 2.1mm coaxial-type DC jack (center pin positive). The SpeakEasy™ R1 will operate on 9 - 20VDC. An external 12VDC "wall-wart" power supply (Remote Audio PS12V1.5) is available.

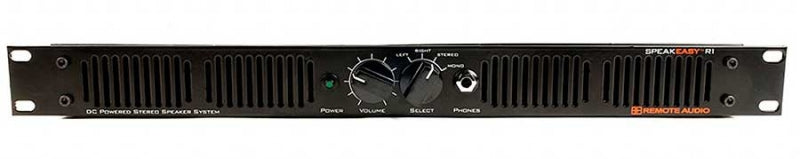

The main power push-button is located on the front of the SpeakEasy™ R1, and will illuminate when pressed and sufficient power is present at either of the DC input jacks. The main volume control and source selector knob apply to the main speakers, as well as the headphone connector. When headphones are inserted into the front ¼" jack, the main speakers are muted. The source selector allows monitoring of: Left input only; Right input only; Stereo; or a summed Mono version of the Left and Right inputs.

• Self-contained, stereo, 12VDC-powered speaker system

• Single rack space

• Dual XLR and stereo 1/4" input

• Front headphone jack

• Master volume control

• Input monitoring selector

DIMENSIONS:

19 x 1.75 x 4.25 inches (1 Rack Unit)

WEIGHT:

2.6 lbs

IDLE POWER DRAIN:

55mA @ 12VDC

POWER OUTPUT:

7.5w per channel @ 8 Ohm nominal speaker impedance

MAXIMUM SPL:

92dB (1kHz @ 1m)
