Remote Audio Speakeasy v3b

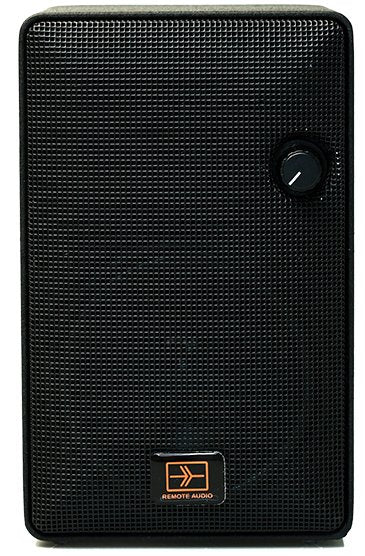

COMPACT ENCLOSURE The SpeakEasy v3b is housed in a cast aluminum enclosure with a durable black finish. At under 5 pounds, the unit is small enough to hide on set and rugged enough to pack in a case with the rest of your gear.

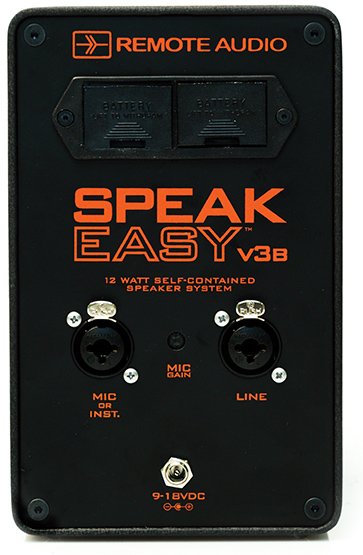

FLEXIBLE INPUTS The back of the unit has two combo jacks for connecting mic, line or instrument level inputs. The mic trim provides up to 40dB of amplification. The inputs are isolated from one another so they can be used at the same time.

EFFICIENT POWER With a single pair of 9-volt batteries, the SpeakEasy v3b will operate for a full production day or more. The unit also has a coaxial DC jack for external powering. Its 12-watt amplifier delivers more than enough volume for monitoring or cueing.

• Self-contained, stereo, 12VDC-powered speaker system

• Single rack space

• Dual XLR and stereo 1/4" input

• Front headphone jack

• Master volume control

• Input monitoring selector

DIMENSIONS 4.6 X 4.5 X 7.3:

WEIGHT 4.4 POUNDS:

INTERNAL POWER TWO 9V BATTERIES:

EXTERNAL POWER:

9-18VDC

DC INPUT CONNECTOR:

5.5mm x 2.1mm coaxial. Center pin positive.

AMPLIFIER POWER:

12W @ 8 Ohm nominal speaker impedance

MAXIMUM SPL:

98dB (1kHz @ 1m)

IDLE POWER DRAIN:

Approx. 70mA

BATTERY LIFE:

More than a full production day of typical intermittent use

INPUTS:

Line level (XLR or 1/4), Instrument level (1/4)

and Mic Level (XLR)*.

* 48V phantom power for condenser microphones is not provided

APPLICATIONS:

Use on your cart to listen without headphones.

Place it anywhere on set with a wireless receiver for cueing and stage announce.

Plant it in a car during tow scenes so the director can talk to actors (when used with the Boom Box).

Connect one (or two) to your computer or iPod for remote listening and editing.

Monitor programming during remote radio and television broadcasts.

Plant it inside a piano for realistic track playback.
