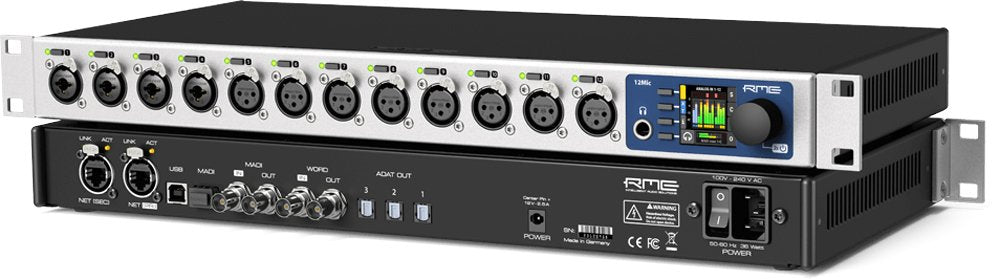

RME 12Mic-D

The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remote controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality, designed for use in high-end studio recording, live audio, and location sound and music recording.

• 12 Mic/Line Inputs with 75 dB Gain

• 4 TRS/XLR Inputs + 8 XLR Inputs

• Integrated MADI and Dante Connections

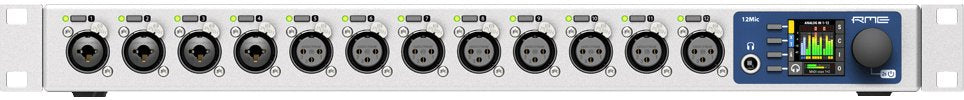

• Remote and Front-Panel Control

INPUTS:

XLR IN 1-12:

• Input: XLR, electronically balanced

• Input impedance: 3.4 kOhm

• Gain range: 75 dB, 1 dB steps

• Resolution AD: 24 bit

• Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz " 20.8 kHz

• Frequency response @ 96 kHz, -0.5 dB: 4 Hz " 29.2

• Frequency response @ 192 kHz, -1 dB: 3 Hz " 43.7

• THD @ 30 dB gain: < -110 dB, < 0.00032 %

• THD+N @ 30 dB gain: < -104 dB, < 0.00063 %

• Channel separation: > 110 dB

• Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)

• Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm

• Maximum input level, Gain 0 dB: +18 dBu

• Maximum input level, Gain 75 dB: -57 dBu

TRS IN 1-4:

AS ABOVE, BUT:

• Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA

• TRS jack, balanced

• Gain range: 42 dB, 1 dB steps

• Maximum input level, Gain 8 dB: +20 dBu

• Maximum input level, Gain 50 dB: -22 dBu

• Switchable high impedance (unbalanced TS): 1 MOhm

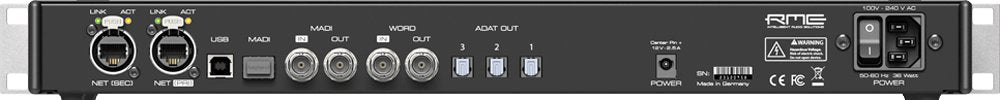

DANTE:

• 2 x RJ45 for Dante network connectivity (up to 64 channels)

MADI:

• Coaxial via BNC, 75 Ohm, according to AES10-1991

• Optical via optional SFP module

• 62.5/125 and 50/125 compatible

• Accepts 56 channel and 64 channel mode, plus 96k Frame

• Single Speed: up to 64 channels 24 bit 48 kHz

• Double Speed: up to 32 channels 24 bit 96 kHz

• Quad Speed: up to 16 channels 24 bit 192 kHz

WORD CLOCK:

• 75 ohm Word Clock BNC connectivity

• Support 44.1kHz - 192kHz

• Support full or single speed operation

• Intelligent Clock Control switches clock source seamlessly

ADAT:

• 3 x TOSLINK

• Quad Speed (S/MUX4): 1 x 2 channels 24 bit 192 kHz

OUTPUTS:

PHONES 1/2:

• Resolution: 24 Bit

• Noise (DR): 115 dB RMS unweighted, 118 dBA

• Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz " 22 kHz

• Frequency response @ 96 kHz, -0.5 dB: 9 Hz " 45 kHz

• Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz

• THD+N: < -100 dB, < 0.001 %

• Channel separation: > 110 dB

• Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack

• Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)

DANTE:

2 x RJ45 for Dante network connectivity (up to 64 channels)

MADI:

• Coaxial via BNC, 75 Ohm, according to AES10-1991

• Optical via optional SFP module

• 62.5/125 and 50/125 compatible

• Accepts 56 channel and 64 channel mode, plus 96k Frame

• Single Speed: up to 64 channels 24 bit 48 kHz

• Double Speed: up to 32 channels 24 bit 96 kHz

• Quad Speed: up to 16 channels 24 bit 192 kHz

WORD CLOCK:

• 75 ohm Word Clock BNC connectivity

• Support 44.1kHz - 192kHz

• Support full or single speed operation

• Intelligent Clock Control switches clock source seamlessly

GENERAL:

• 2x RJ45 for Dante network connectivity

• Single Speed: up to 64 channels 24 bit 48 kHz

• Double Speed: up to 32 channels 24 bit 96 kHz

• Quad Speed: up to 16 channels 24 bit 192 kHz

• MADI input redundancy (requires optional SFP module)

• Internal routing of up to 268x282 channels

• 19" enclosure 1 unit height

• 1,54" full color display with control knob and four buttons for convenient, direct access to all features

• Remote control via HTTP & JSON

• internal PSU, optional 12V DC redundant power supply

• USB 2.0 (for remote control and firmware updates)

• DC-coupled outputs

HARDWARE SPECIFICATIONS:

• Dimensions: 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)

• Weight: 2.8 kg (6.2 lbs)

• Package: 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)

• Conformity: CE, FCC, WEEE, RoHS

• Power supply: internal 30 W 100-240 V AC, external 12 V 2.5 A DC (optional)

• Power consumption: typ. 20 W, standby 0.5W
