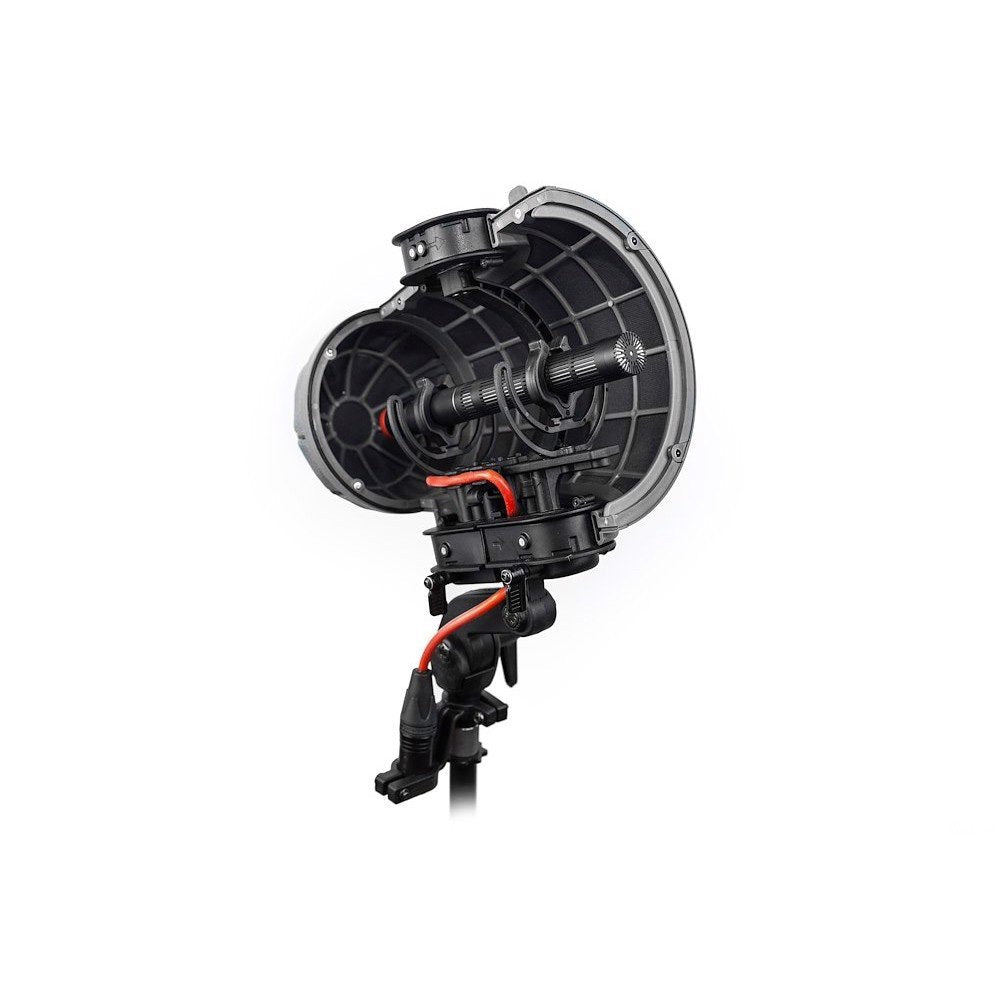

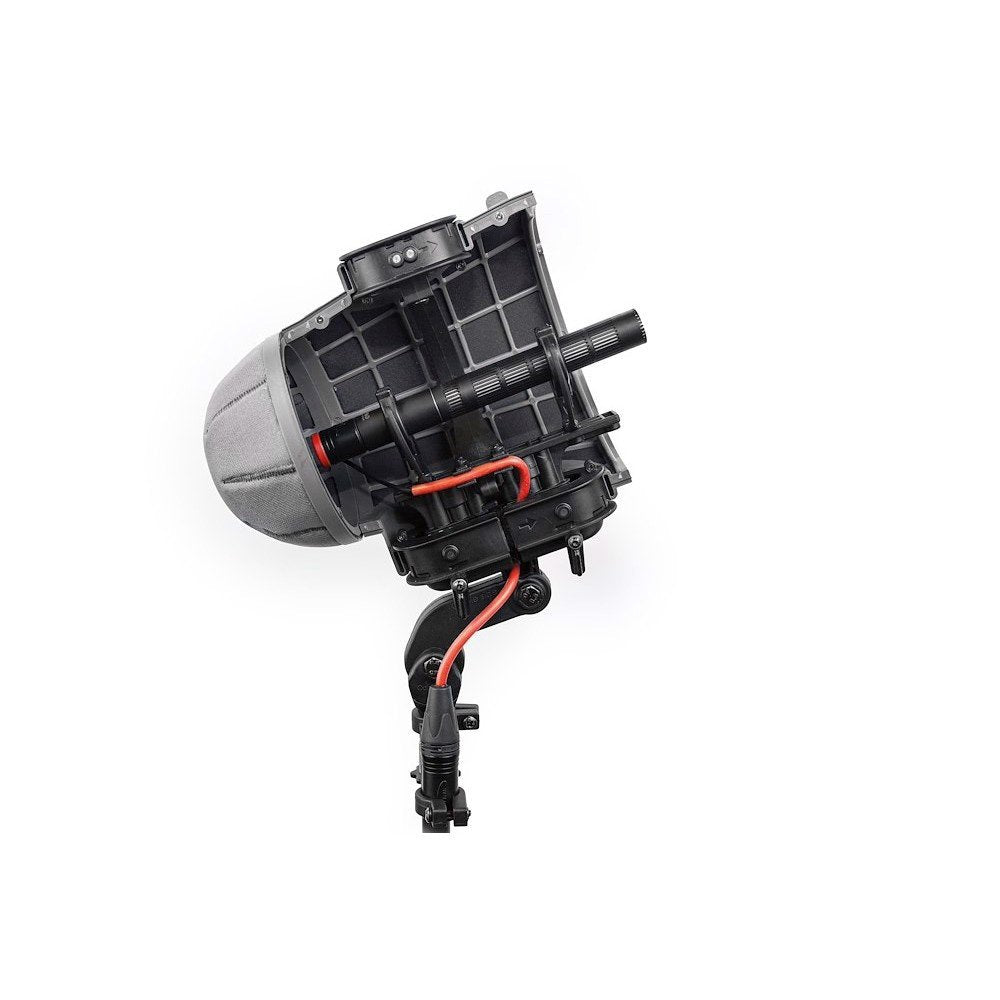

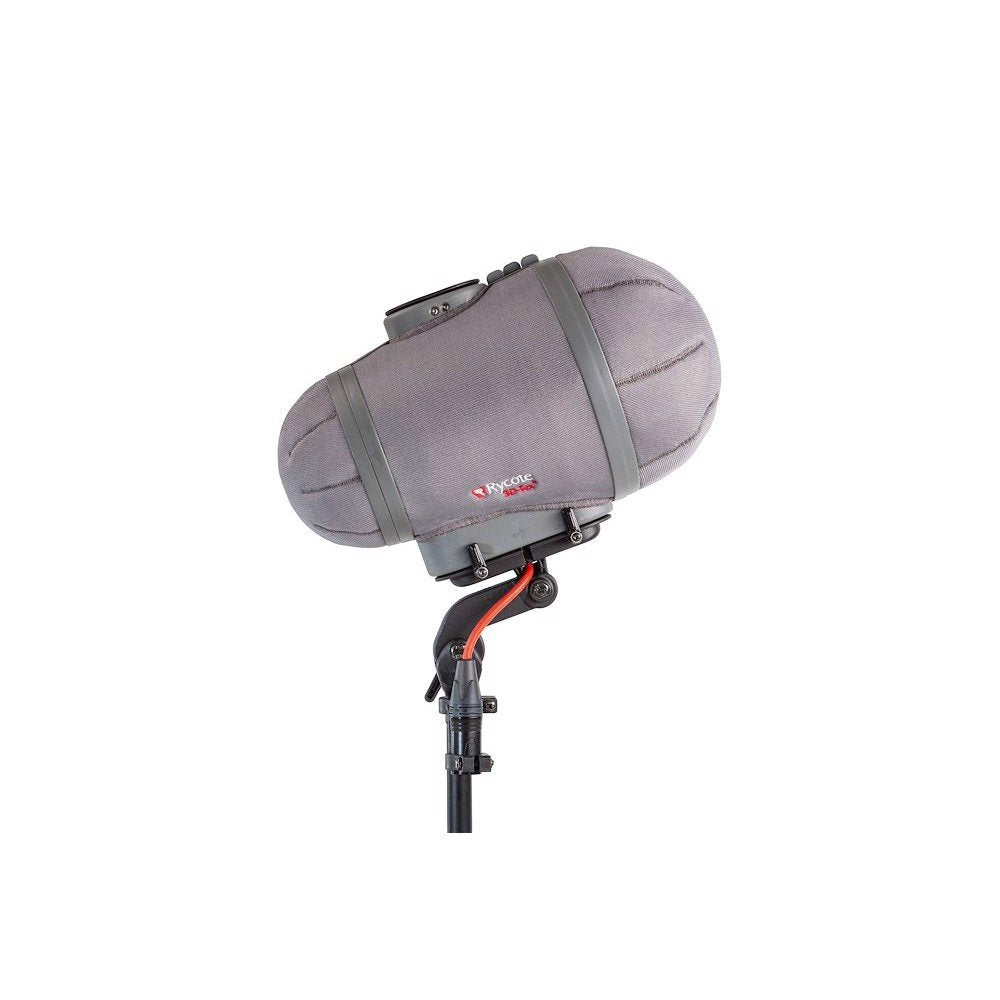

Rycote Cyclone Windshield Kit Small 089103

The Cyclone is the result of more than a decade of continuous development. Our design and engineering teams have focused on each component to build an all-new windshield system from the ground up.

Everything has been considered, nothing overlooked because to design a windshield system this advanced, everything counts. Alone, every one of these advancements is a performance breakthrough. Together, they are the Cyclone, the world's most advanced microphone windshield and shock-mount system.

The Cyclone has been designed with ease of set-up and use as a priority for the location sound professional. The windshield basket design uses a magnetic Z-Locking System that can be opened and closed in the blink of an eye " using just one hand. Reassembly is automatic as components magnetically snap into perfect alignment.

Acoustic transparency and room-tone effect When we designed the Cyclone, we started with a blank canvas. That gave us complete freedom to imagine something radical, something entirely different from anything that's been dreamed of before. Picture a windshield that combines superb acoustic transparency with an equal effectiveness in protecting against wind noise. A windshield with an open shell structure, curved contours and no straight or parallel surfaces. Thus reducing the room-tone effects that characterise conventional tubular designs. A windshield designed for the future, but ready to use today.

Greater wind protection The structure was developed using state-of-the-art design tools with computer-generated simulations to generate a frame that achieves the ideal balance of location robustness with minimal weight.

With an aerodynamically efficient asymmetric shape, it is covered with our new-age 3D-Tex material. This provides enormous benefits in terms of surface turbulence and acoustic impedance resulting in such a level of wind noise reduction that a fur cover is unnecessary.

Shock isolation from every perspective Any structure can transmit mechanical vibrations and radiate them as acoustic noise. Moreover natural resonances, dependent on materials and mass, will amplify certain frequencies and give this a characteristic spectrum. Windshield baskets are no exception, so a small proportion of handling noise links to the microphone through the air, bypassing any immediate suspension system.

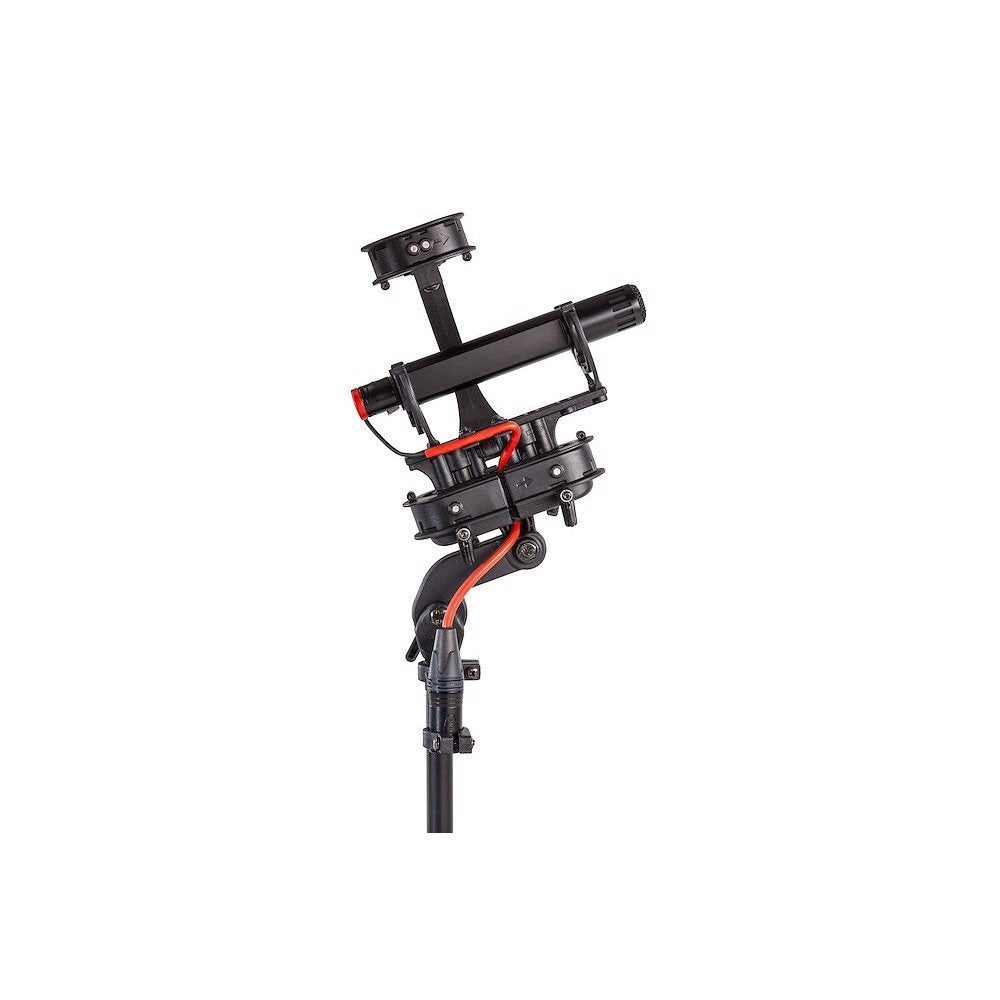

While Rycote uses its industry-leading Lyre microphone suspension to reduce the bulk of shock and handling noise, the Cyclone takes the Lyre principle and incorporates it in a Floating Basket Suspension. This innovative technique provides vibration isolation between basket and pole, thus attenuating handling noise at source.

• Delivers anew pinnacle in audio transparency

• Designed with materials to withstand extreme field conditions.

• Featuring 3D-Tex delivering massive wind noise reduction

• Basket Z-Locking design

• Swivel latches

SIZE

Small

BODY LENGTH

142 mm

BOOM THREAD

Brass, 3/8″ UNC female To suit 3/8″16 UNC male & 3/8″ BSW

CONNECTOR

XLR-3F

MAX MIC LENGTH

75 mm - 160 mm

TEMPERATURE RANGE

Safe operating range: Min. -20ºC (-5ºF) " Max. 38ºC (100ºF)

WEIGHT

0.716 kg

OPTIONAL ACCESSORIES:

Cyclone Windjammer (Large), Extension soft-grip Handle
