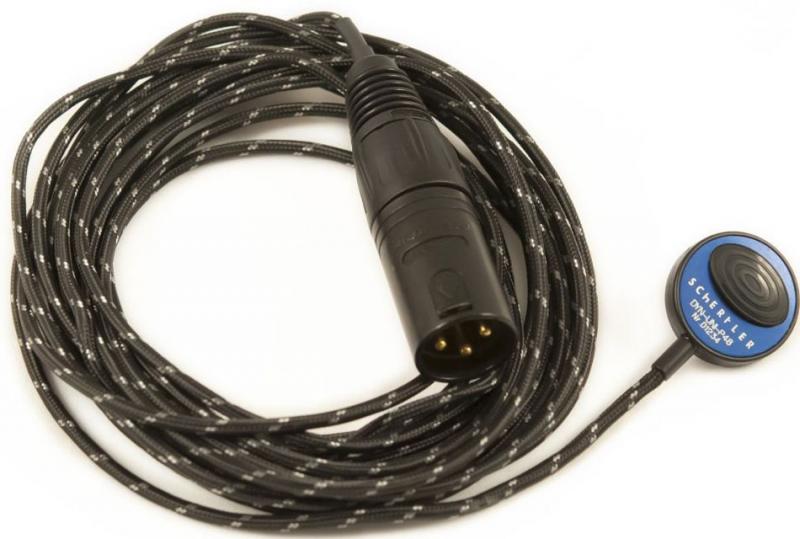

Schertler DYN-UNI-P48

Specially designed for professional applications, it replaces Schertler's previously available A-DYN model as the new flagship universal contact microphone. The DYN-UNI-P48 features state-of-the-art, in-house developed activefiltering technology and a modified frequency response to guarantee a linear result.

Sporting a new, sleek lightweight design, the DYN-UNI-P48 is supplied with Schertler's own customized cable that has an extended length. The cable is both robust and torsion resistant, designed to withstand the rigours of daily use while delivering best possible performance results. A balanced XLR connector enables direct connection to a microphone input on a mixing console, as well as to a full range amplification system.

The DYN-UNI-P48 can be easily and safely applied to even the most valuable of instruments using special adhesive putty. It can also be quickly transferred between instruments during performances or recording sessions. Note: This microphone requires 48V phantom power.

Schertler's flagship DYN Series contact microphones were first launched over 20 years ago. Two decades later, developments in microphone technology have enabled the series to be re-engineered to meet today's exacting requirements. The new DYN P48 Series retains the best features from the original DYN microphones while incorporating state-of-the-art technology that has resulted ineven better sound quality,a more elegant lightweight design and more user-friendly operation.

• Output impedance : 4.7 Kohm @ 1 KHz

• Frequency Response : 20 Hz to 20 kHz

• Dynamic range : 139 dB, 145 dB typical

• Sensitivity (on instrument) : ca. -30 dB

• Sensitivity (theoretical) : -62 dB/@ 1um ampl.

• Mechanical decoupling : Butterworth 2nd order, Q=6

• Temperature range : -20 C to +70 C

• Minimum operating voltage : 22 VDC

• Active EQ : Linear

• Electronics : all Class-A

• Contacts : All hard gold plated 0.5 mm

• Connection : XLR balanced

• Cable Length : 4.0m
