Schoeps MiniCMIT + Cinela COSI

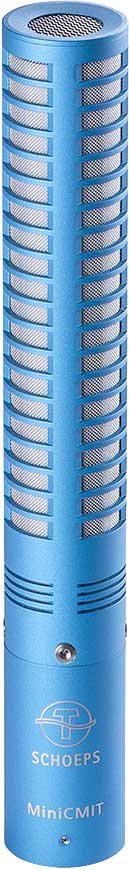

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

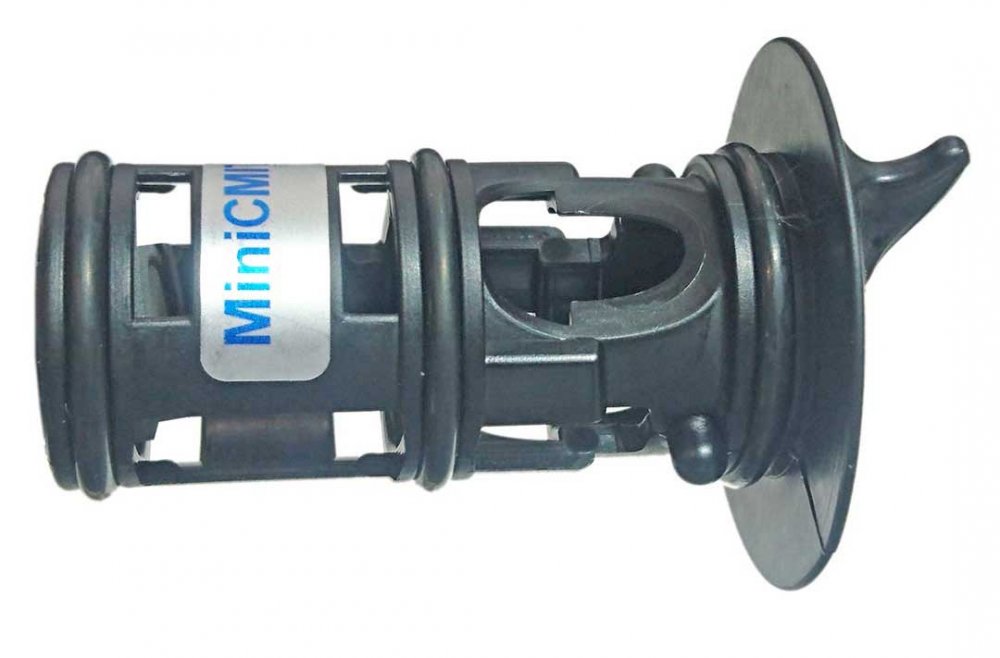

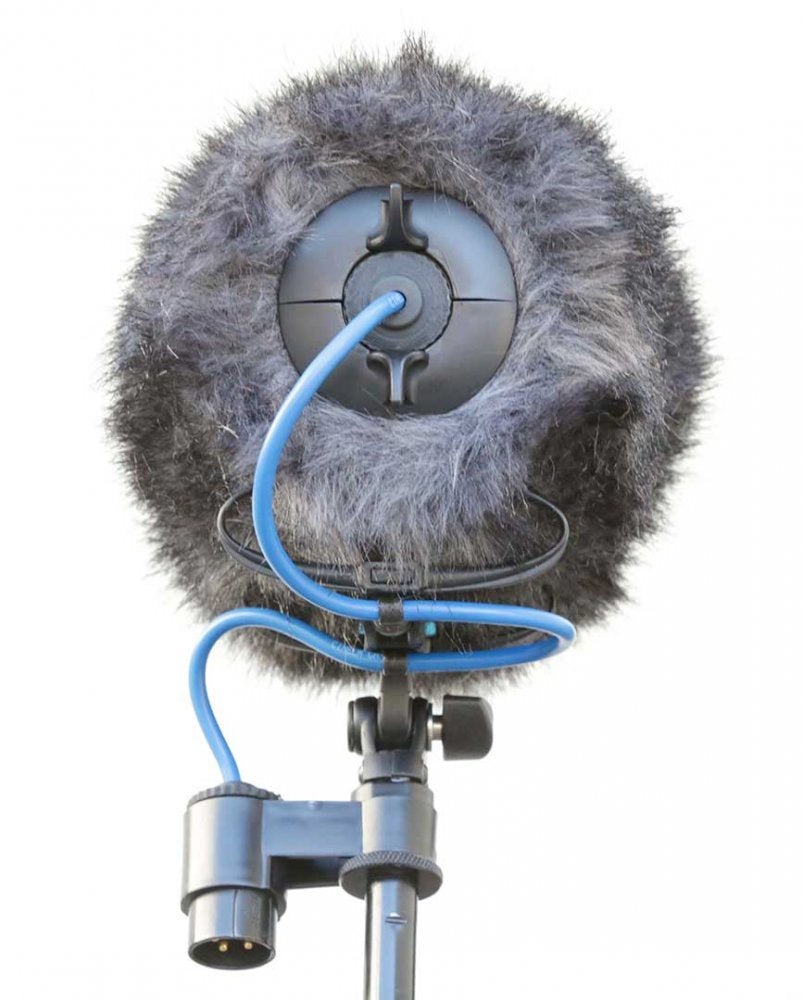

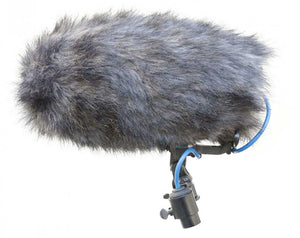

The COSI is a unique, innovative windscreen for short microphones. The MiniCMIT is protected in an extremely compact form from noise caused by wind and vibration (version L-21).

MINIATURE SHOTGUN MICROPHONE:

Pickup pattern: Supercardioid / lobe-shaped

Frequency range: 60 Hz - 20 kHz

Sensitivity: -35 dB (V/Pa), 17 mV/Pa

Equivalent noise level (A-weighted): 14 dB

Equivalent noise level (CCIR): 24 dB

Signal-to-noise ratio (A-weighted): 80 dB

Maximum sound pressure level (THD < 0.5 %): 130 dB-SPL (P48), 115 dB-SPL (P12)

Maximum output voltage: 1 V (0 dBV) with 2 k load

Low cut filter: fixed, 70 Hz, 24 dB/oct.

Minimum recommended load impedance: 2 k

Output impedance: 100

Maximum cable length: >100 m

SCHOEPS RFI Shield: Yes

Powering standard / Valid range: P48 / >24 V, P12 / >11 V

Current consumption: 2.3 mA (P48)

Common mode rejection ratio (at 1 kHz): > 55 dB

Output: XLR-3M, analog, 1 channel

Length: 151 mm

Diameter: 21 mm

Weight: 78 g

Surface finish: blue or custom color

INCLUDED ACCESSORIES:

1 x MiniCMIT

1 x COSI
