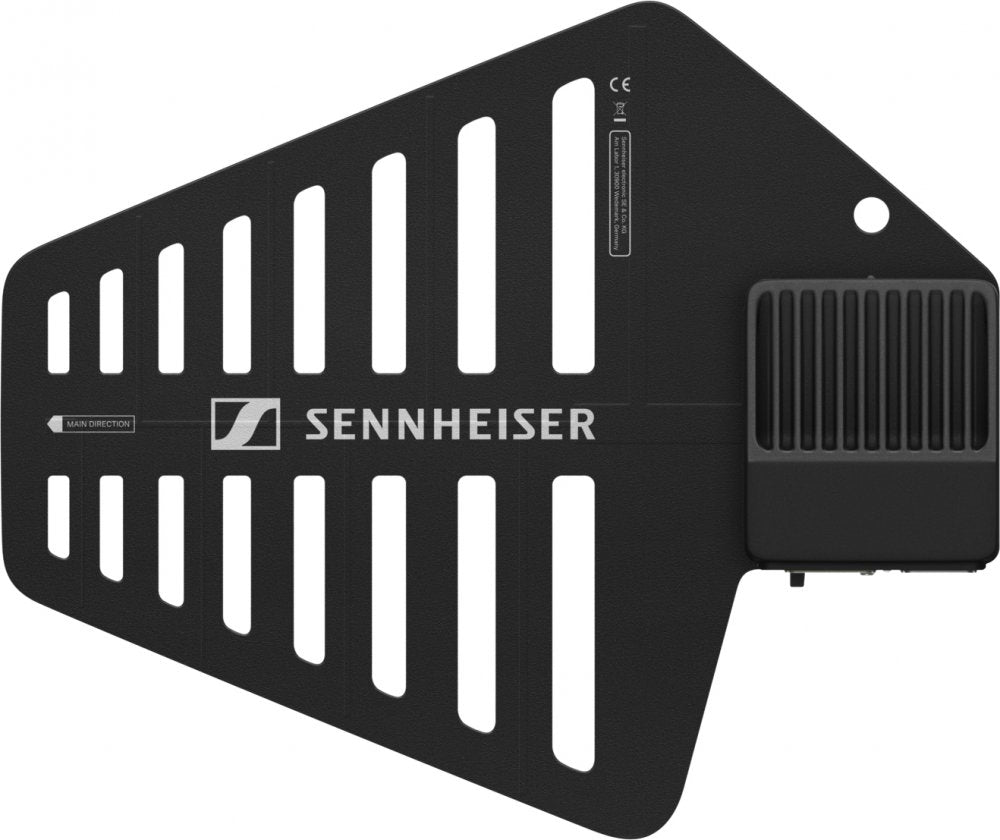

Sennheiser Spectera DAD (UHF)

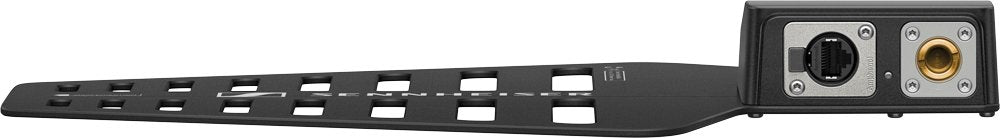

The DAD directional antenna is a first-of-its-kind transceiver; simultaneously sending IEM signals, receiving mic/line signals and managing all bidirectional system data. It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection, and PoE.

• Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components

• Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously

• Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume,

• audio level and settings, RF health, battery status, and more

• 1 RU base station provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)

• Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)

• Redundancy throughout, including power supply, Dante, MADI (optional), and up to four antennas

• Four antenna ports allow for redundancy, extended zone coverage and additional spectrum capacity

• 11 Audio Link modes allow for selectable control of audio quality, latency, channel count, and operating range

• Signature Sennheiser digital audio quality across the entire system, including IEMs " with latency down to 0.7 milliseconds

• Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters

• Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)

• Sennheiser WMAS technology eliminates the hassle and time of frequency coordination

• Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac

• Automated assistive behaviors make system management fast and intuitive

• Evolving hardware/software ecosystem; future releases will include SKM handheld mic, cascade port activation, plus a variety of innovative hardware and software updates

SPECTERA DAD antennas are available in two variants:

• UHF (470 - 608 MHz and 630 - 698 MHz)

• 1G4 (1350 - 1400 MHz and 1435 - 1525 MHz)
