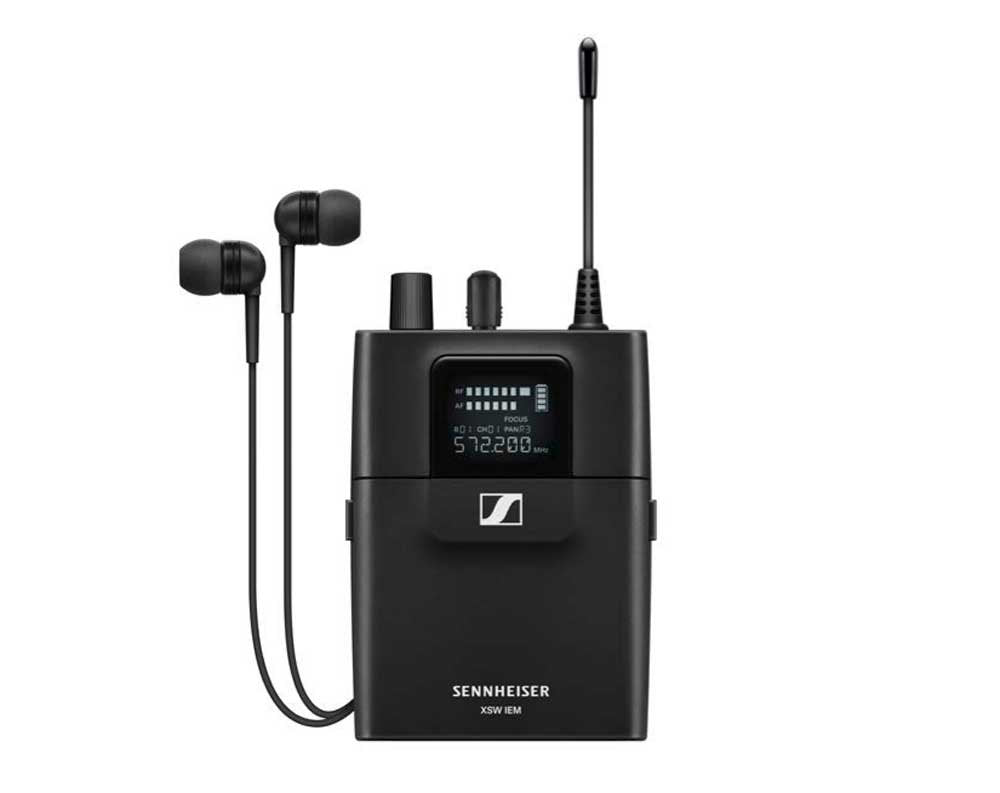

Sennheiser XSW IEM EK (A)

A professional IEM receiver is unnoticeable most of the time, but becomes a powerful tool with just a few clicks. That is the DNA of the lightweight XS Wireless IEM bodypack. You can easily expand any XS Wireless IEM setup by connecting additional receivers to your transmitter.

Its small status LED is all you might see during rehearsals or gigs. It signals both battery and wireless link status. The LC display only lights up when you access the well-secured settings panel. With just a few clicks, you can balance your in-ear mix, switch between focus modes, use an EQ for elevated high frequencies, enable the limiter, choose a new option from the preset channels, or set your frequency manually.

The standard 3.5 mm output is open for the included pair of IE 4 in-ear monitors " or you can upgrade your sound with a model of the IE PRO in-ear monitor line.

Advanced features like the limiter help you to protect your ears by clamping down on sudden loud signals. With the EQ option, you can get more air and extra brightness by boosting your sound at 13 kHz.

The bodypack operates with two AA primary cells or rechargeable batteries. Depending on the volume level, you can expect about six hours of operating time.

-
Lightweight and unnoticeable " perform without limits

-
Standard 3.5 mm plug for wide variety

-
Ideal for upgrades with IE PRO in-ear monitor line

-
Settings panel " direct access to individual options

-
LED: Quick check of battery life and link status

-
Built-in limiter protects against sudden audio peaks

-
Optional EQ to boost brightness

-
Pan control for personal balancing

-
Works for 6 hours with primary cells or rechargeables

XSW IEM EK - STEREO RECEIVER:

RF CHARACTERISTICS:

ModulationP: Wideband FM

Frequency ranges

A: 476 - 500 MHz

B: 572 - 596 MHz

C: 662 - 686 MHz

E: 823.2 - 831.8 MHz

K: 925.2 - 937.3 MHz

Switching bandwidth: up to 24 MHz

Nominal/peak deviation: ±15 kHz / ±24 kHz

Squelch: 10 μV, fixed

AF CHARACTERISTICS:

Signal-to-noise ratio

(1 mV, peak deviation): ≥88 dB

Total harmonic distortion (THD): ≤ 1 %

AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω

High Boost (EQ): +10 dB at 13 kHz

Limiter: -10 dB

AF frequency response: 45 Hz to 15 kHz

Cross talk (50 Hz - 10 kHz): typically 45 dB

OVERALL DEVICE:

Temperature range: 0 C to +40 C

Power supply: 2 AA batteries, 1.5 V

Nominal voltage: 3 V battery

Operating time: Approx. 6 hrs

(depending on volume level)

Dimensions: Approx. 95 x 70 x 26 mm

Weight (incl. batteries): Approx. 110 g

IE 4 - IN-EAR HEADPHONES:

Transducer: dynamic

Frequency response: 40-20.000 Hz

SPL (1 kHz, 1 mW): 106 dB

Nominal impedance: 6 Ω

Cable length: 1.4 m

Connector: 3.5 mm (1/8") stereo plug, gold-plated

Temperature: "5 C (23 F) to +50 C (122 F)

DELIVERY INCLUDES:

• XSW IEM EK Stereo Receiver

• IE 4 In-ear headphones

• 2 AA batteries

• Quick Guide

• Safety Guide

• Compliance Sheet

• Frequency Table
