Sonifex RB-DA6

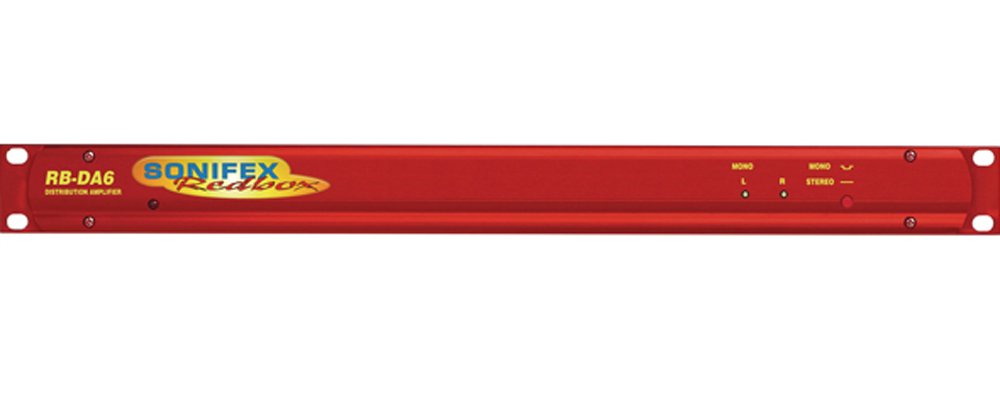

The Sonifex RB-DA6 is a 1U rack-mountable stereo distribution amplifier designed to split a single audio source into multiple outputs. It offers one stereo input and six stereo outputs, with the flexibility to configure a mono input for distribution to twelve outputs via a recessed front-panel switch, preventing accidental activation.

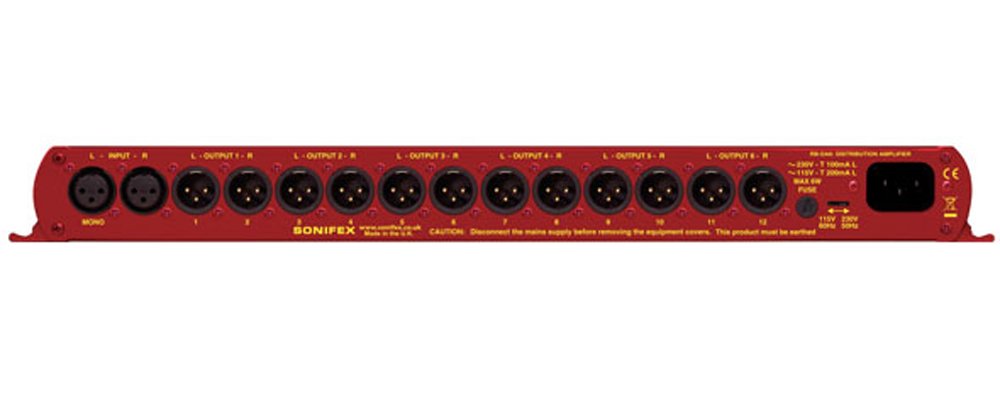

Equipped with electronically balanced XLR-3 inputs and outputs, the RB-DA6 can also accommodate unbalanced connections. Each output is individually buffered, ensuring that a short circuit on one output does not affect the others. The device features front-panel accessible preset potentiometers for left and right input gain adjustments, allowing for precise normalization of audio levels.

• Versatile Audio Conversion: Provides simultaneous analog-to-digital and digital-to-analog conversion for seamless audio integration.

• High-Quality Audio: Supports sample rates up to 192kHz with low noise and distortion for professional-grade sound.

• Flexible Connectivity: Features balanced analog XLR inputs and outputs alongside AES3 digital I/O for compatibility with various systems.

• Clock Synchronization: Includes word clock I/O and selectable internal or external sync options for precision timing.

• Compact and Rack-Mountable: 1U rack design for easy installation in studio and broadcast setups.

• User-Friendly Controls: Intuitive front-panel controls and LED indicators for quick setup and monitoring.

• Analog inputs: Balanced XLR and unbalanced RCA stereo inputs

• Analog outputs: Balanced XLR and unbalanced RCA stereo outputs

• Digital inputs: AES/EBU (XLR), S/PDIF (RCA), and TOSLINK optical

• Digital outputs: AES/EBU (XLR), S/PDIF (RCA), and TOSLINK optical

• Sample rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz

• Bit depth: Selectable 16, 20, or 24 bits

• Synchronization inputs: Independent AES/EBU and Word Clock inputs for A/D and D/A sections

• Control interface: RS232 port for remote control of settings

• Front panel controls: Push-button switches for input selection, sample rate, bit depth, and synchronization settings

• Power supply: Universal AC input (85-264V AC, 47-63Hz)

• Dimensions: 1U rackmount, 19" (W) x 7" (D) x 1.75" (H)

• Weight: Approximately 1.5 kg
