Sonifex RB-DDA6W-2P

The Sonifex RB-DDA6W-2P is a 1U rack-mountable 6-way word clock distribution amplifier designed to distribute a single word clock BNC input signal to six reconditioned BNC outputs. This functionality is essential for providing reference clocks to multiple digital audio devices within a professional setup.

A key feature of the RB-DDA6W-2P is its dual power supply design, which allows for connection to separate mains feeds. The unit automatically load-shares between the two supplies, ensuring continuous operation in the event of a power supply failure.

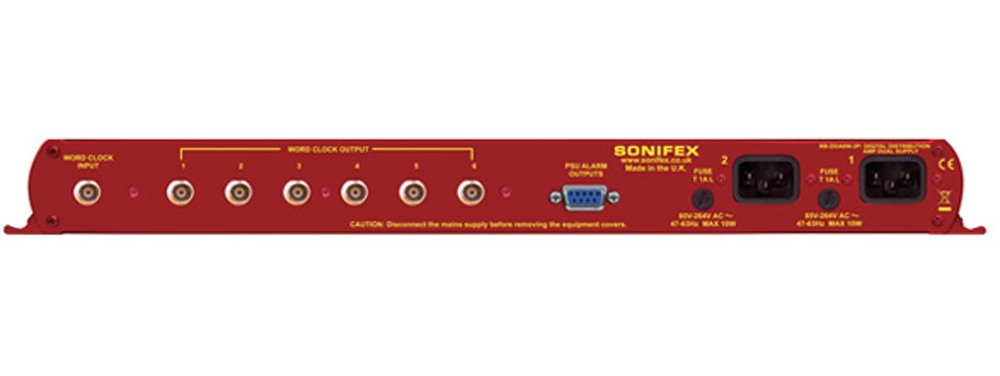

The amplifier accepts a single female BNC audio input and distributes the signal to six female BNC outputs, each reconditioned to maintain signal integrity across all outputs.

• Precise Clock Signal Distribution: Distributes two independent word clock signals to six outputs per channel for synchronization across multiple devices.

• Dual Inputs for Versatility: Handles two separate clock sources for simultaneous distribution.

• High-Quality Signal Integrity: Maintains accurate and jitter-free clock signals for professional audio setups.

• Compact and Rack-Mountable: Fits neatly into a 1U rack space for efficient use in studios and broadcast environments.

• Robust Build: Engineered for reliability and durability in critical audio systems.

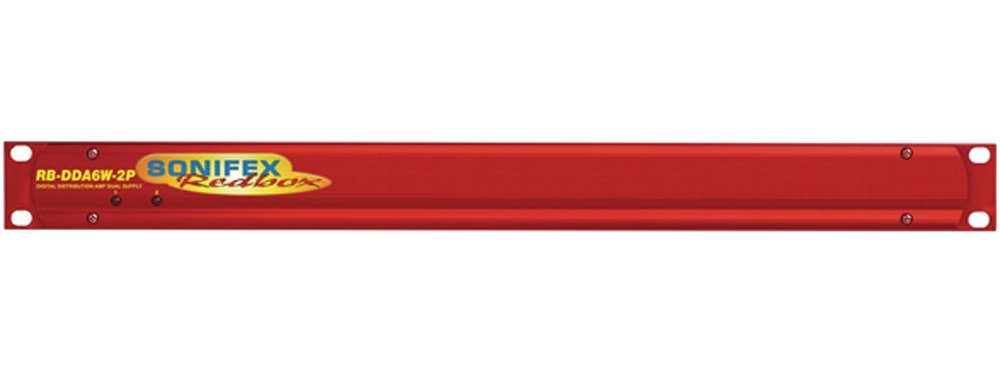

• User-Friendly Design: Front-panel LEDs provide clear visual status of power and signal presence.

Input Impedance: 50ohms

Output Impedance: <50ohms

Audio Input: 1 x BNC female connector

Audio Outputs: 6 x BNC female connectors

Alarm Outputs: 2 x relay output indicators on 1 x 9-pin D-Type socket

Power Supply: Dual filtered IEC inputs, 85-264V switchable, fused, 6W max

Fuse Rating: 2 x anti-surge fuse 1A 20 x 5mm

Dimensions: 1U rackmount unit
