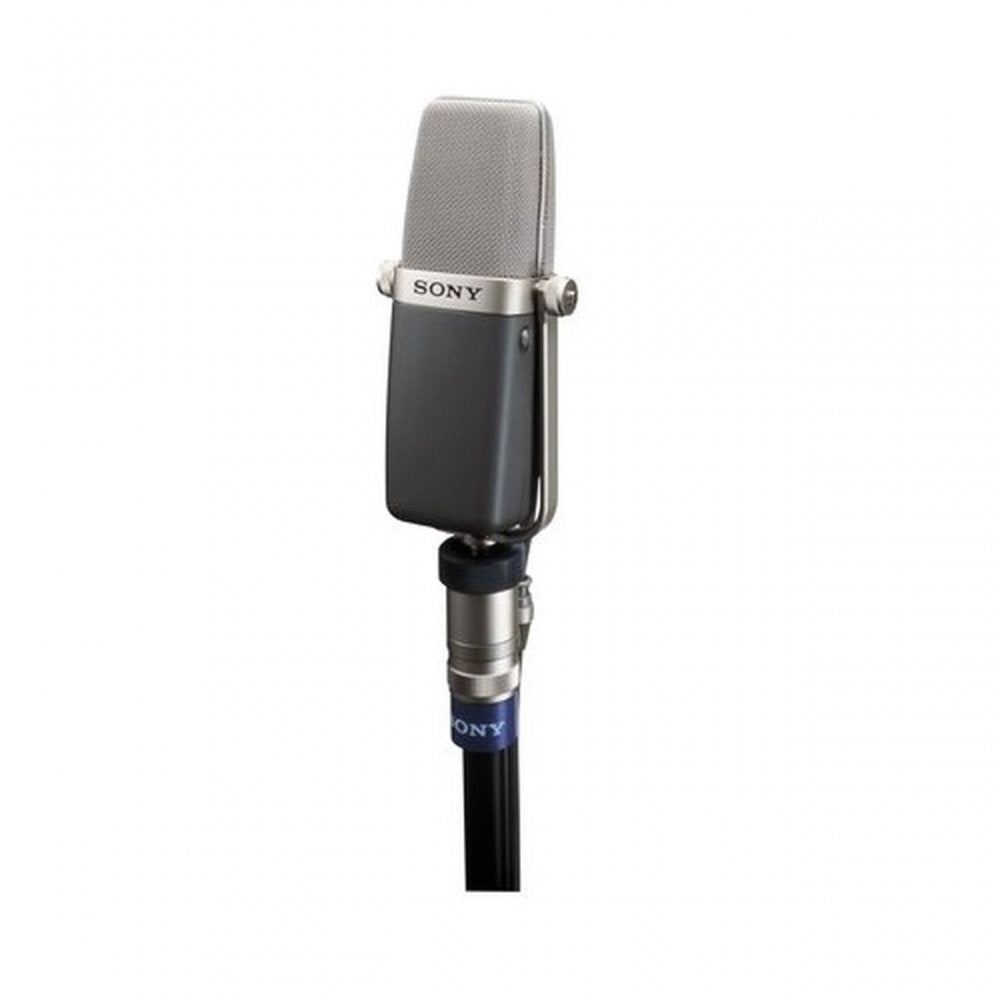

Sony C-38B

With a proven track record of reliability in broadcast production, music recording studios or wherever circumstances demand a combination of powerful performance, versatile operation and simplicity of microphone set up.

Ideal for vocal and instrument recording, this microphone is particularly adept at handling loud instruments such as percussion and wind instruments. The condenser element of the C-38B microphone provides dual switchable, omni-directional and uni-directional polar patterns, providing control over the pick up angle for flexibility in any recording senario. A low cut filter switch helps eliminate low frequency noise, and an 8 dB pad switch maximizes gain and reduces distortion noise. With its established performance record, the C-38B microphone continues to be the reliable, affordable choice of recording engineers around the world.

Highlights . Switchable Polar Pattern (Omni and Uni Directional) . Broad Dynamic Range . Low Cut Filter and Pad Switch . FET Output Stage

SWITCHABLE POLAR PATTERNS:

The C-38B microphone features switchable omni-directional and uni-directional polar patterns for maximum flexibility and control over pick up angle

FUNCTION SELECT SWITCH:

Just below the directivity switch, a function select switch allows quick adjustment of the C-38B microphone through 5 positions: OFF, M (full range response); M1 (slight low frequency attenuation); V1 (low frequency attenuation); V2 (severe low frequency attenuation)

BROAD DYNAMIC RANGE:

An improved amplifier gives the C-38B a dynamic range of greater than 116 dB, with flat frequency response and sharp directional characteristics in both uni-directional and omni-directional modes

PHANTOM POWER SYSTEM:

In addition to internal battery power, the C-38B microphone is compatible for use with standardized 48V phantom powering

LOW-CUT FILTER:

The C-38B microphone's low-cut filter switch helps eliminate low-frequency noise and proximity effect

PAD SWITCH:

An -8dB pad switch on the C-38B microphone provides added headroom and minimizes distortion caused by transient peaks

FET OUTPUT STAGE:

The FET output stage of the C-38B microphone delivers high signal gain and low noise floor for superb sound quality

VIBRATION RESISTANT CONSTRUCTION:

Designed for peak performance, the C-38B microphone's classic, vibration resistant construction provides excellent shielding against external magnetic fields and helps prevent distortion

General Specifications

Capsule: TypeCondenser

Frequency Response: 30 Hz - 18 kHz

Directivity: Uni-directional/Omni-directional

Sensitivity: -48.0dB ±2.0dB

Dynamic Range: 116dB or more

S/N Ratio: 70dB or more

Inherent Noise (0dB=20µPa): 24 dB SPL or less

Induction Noise from External Magnetic Field: 5dB SPL or less

Wind Noise: 44dB SPL or less

Max SPL (dB SPL)(0dB=20µP): 140dB SPL

Connector: XLR-3 12C type

Cable Length: 19.7 feet

Power Requirements: Battery: 9V External Power:DC 24 to 48V

Dimensions: 3 1/8 dia. x 8 1/2 x 1 13/16 inches (78 dia. x 214 x 46 mm)

Weight: 1 lb 7 oz (without battery)

Supplied Accessories

Carrying case (1)

Stand adaptor (NS5/8) (1)

Stand adaptor (W3/8) (1)

Screwdriver (1)

Operation manual (1)
