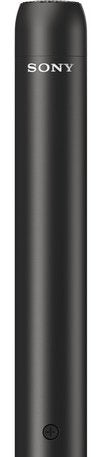

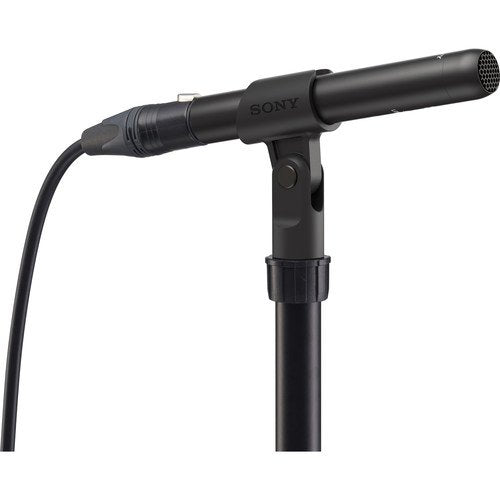

Sony ECM-100N

Providing a powerful studio and live tool for recording instruments of all types, the ECM-100U provides flat frequency response from 20Hz up to 50 kHz. This fits into Sony's ethos of Hi-Resolution audio products.

The ECM-100U uses a two-part metallic body construction originally used in the famous C-800G studio mic to prevent acoustic vibration and self-noise, resulting in perfectly clear sound.

The mic is fitted with a low-cut filter ideal for reducing low-frequency noise and giving you an option to reduce LF as a result of the proximity effect. There is also a -10dB pad switch for added headroom where necessary.

EXCELLENT SOUND QUALITY:

Newly developed small diaphragm microphone capsule with Uni-directional characteristics delivers authentic sound of instruments with extremely low distortion.

FLAT AND WIDE FREQUENCY RESPONSE:

The C-100 microphone has flat and wide frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio.

NOISE ELIMINATION CONSTRUCTION:

Two-part metallic body structure originally employed in the C-800G microphone prevents acoustic vibration, resulting in low noise and clear sound.

LOW-CUT FILTER:

Low-Cut filter switch helps eliminate low-frequency noise and proximity effect.

PAD SWITCH:

An -10dB pad switch on ECM-100U microphone provides added headroom and minimizes distortion caused by transient peaks.

CAPSULE TYPE:

Electret Condenser

FREQUENCY RESPONSE:

20 Hz to 50 kHz

DIRECTIVITY:

Cardioid

SENSITIVITY:

-41 dB

OUTPUT IMPEDANCE:

160±15%, Balanced

DYNAMIC RANGE:

117 dB or more

SIGNAL-TO-NOISE RATIO:

73 dB or more

INHERENT NOISE:

21 dB SPL or less

WIND NOISE:

50 dB SPL or less (with supplied windscreen)

MAXIMUM INPUT SOUND PRESSURE LEVEL:

138 dB SPL

CONNECTOR:

XLR-3-12C (male)

MIC CABLE:

XLR 3-pin Cable Required (Not Supplied)

POWER REQUIREMENTS:

+48 V phantom power

DIMENSIONS:

19dia.x130mm (0.75dia.x5.12in.)

MASS:

Approx. 132g (4.6oz.)

SUPPLIED ACCESSORIES:

• Mic holder

• Wind screen

• Stand screw adaptor (W3/8 to NS5/8)

• Operating instructions

• Carrying case
