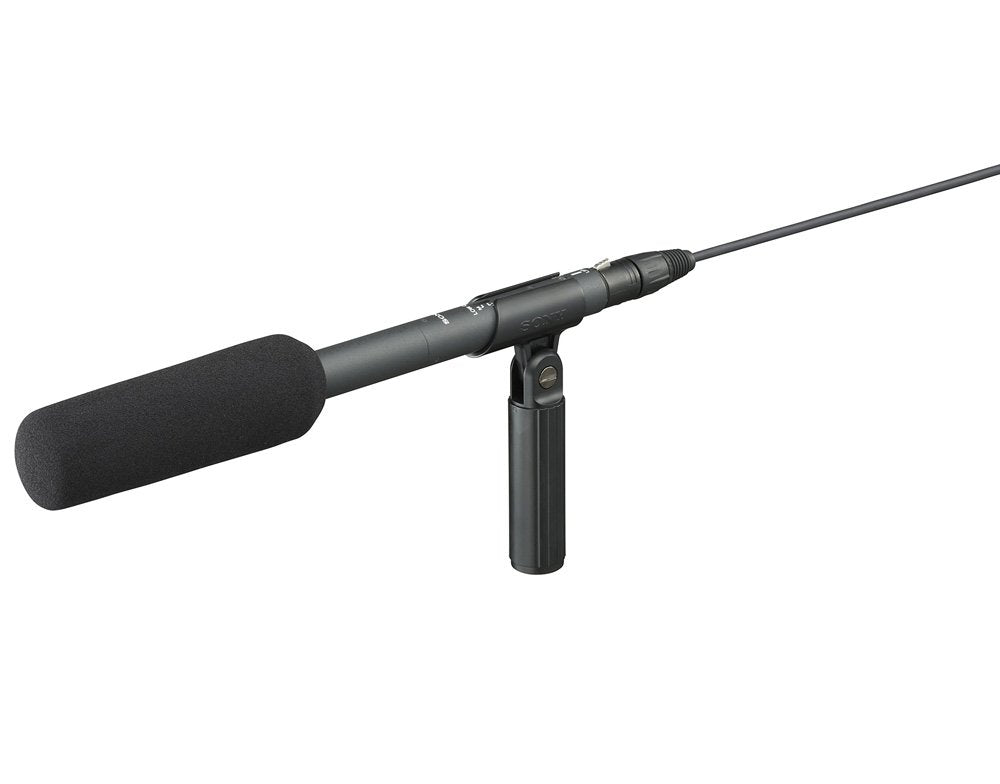

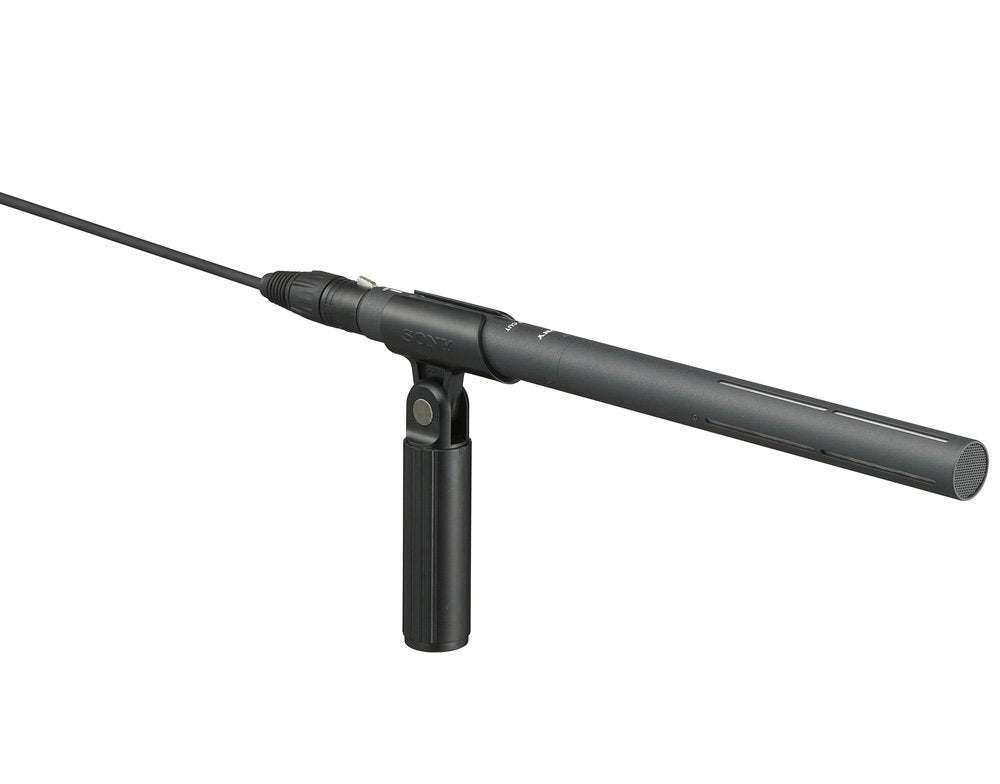

Sony ECM-674

The ECM-674 is an affordable shotgun-type electret condenser microphone, which delivers excellent sound performance in field and studio productions.

Superb Sound Quality The ECM-674 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa.) and low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pick-up even in noisy environments

Two-way Powering A two-way powering capability allows the ECM-674 to be driven by microphone power or batteries, making it suitable for both camcorder mounting and many other sound-gathering applications. Internal: AA-size battery operation. External: DC (40 to 52 V) operation

Built-in Battery Liquid Leakage Protection Circuit In general, old batteries can leak and damage the equipment they are used in. The ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold.

FLAT-AND-WIDE FREQUENCY RESPONSE:

The ECM-674 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and provides sound reproduction that is extremely smooth and natural

COMPACT AND LIGHTWEIGHT DESIGN:

The ECM-674 has been designed as a highly directional compact and lightweight shotgun microphone. It measures only 268 mm (10 5/8 inches) in length and weighs just 185 g (6.5 oz), maintaining good balance even when mounted on compact camcorders.

BUILT-IN LOW CUT FILTER:

The built-in two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise.

Capsule Type: Mono Electret Condenser

Frequency Response: 40 Hz to 20 kHz

Directivity: Uni-directional (super-cardioid)

Sensitivity *[1]: -36 dB ±3 dB

Output Impedance *[2]: 220Ω±20%, Balanced

Dynamic Range: Phantom: 107 dB or more, Battery: 98 dB or more

Signal-to-Noise Ratio *[3]: 77 dB or more

Inherent Noise *[4]: 17 dB SPL or less

Induction Noise From External Magnetic Field *[5]: 0 dB SPL or less

Wind Noise *[6]: 50 dB SPL (without windscreen), 45 dB SPL or less (with windscreen)

Maximum Input Sound Pressure Level *[7]: Phantom: 124 dB SPL

Battery: 115 dB SPL

Connector: XLR-3-12C (male)

Mic Cable: XLR-3 to XLR-3, 500 mm, 19.6 inches

Power Requirements: External: DC 40 V to 52 V, Battery: 1.5 V

Dimensions *[8]: φ20 x 268 mm, φ13/16 x 10 5/8 inches

Mass:

Approx. 7.3 oz with battery

Approx. 6.5 oz without battery

Approx. 208 g with battery

Approx. 185 g without battery

SUPPLIED ACCESSORIES:

Windscreen (1)

Stand adaptor (2)

Short XLR cable

Operating instructions (1)

Mic spacer (2)

Mic holder (1)

NOTE*:

[1] 0 dB = 1 V/Pa, at 1 kHz

*[2] Output impedance at 1 kHz

*[3] A-weighted, 1 kHz, 1 Pa.

*[4] 0 dB SPL = 20 μPa.

*[5] dB SPL/1E-7 T, 0 dB SPL = 20 μPa.

*[6] Wind noise at 2m/s (0 dB SPL = 20 μPa.)

*[7] 0 dB SPL = 20 μPa.

*[8] The values for dimensions are approximate.
