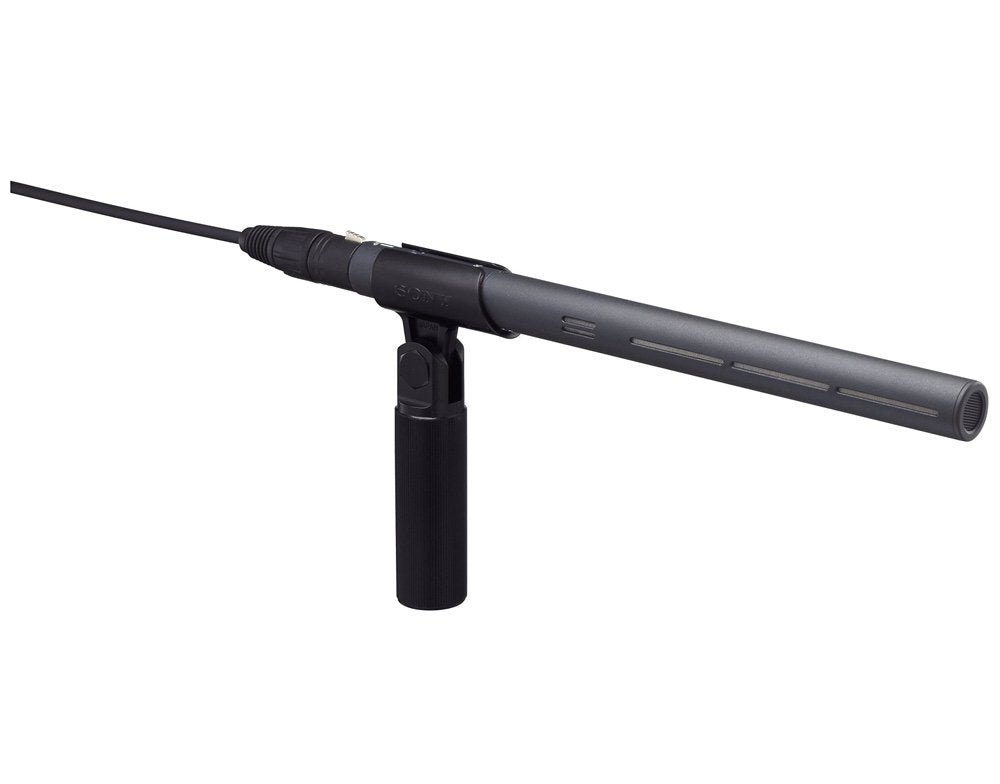

Sony ECM-678

For superior sound quality, choose the ECM-678. It delivers superior sensitivity of -28 dB (0dB=1V/Pa) and extremely low inherent noise of less than 16 dB SPL. This microphone balances the need for a compact size with its ability to deliver excellent performance. The result is a highly directional microphone that is only 250 mm in length.

Capsule Type: Mono Electret Condenser

Frequency Response: 40 Hz to 20 kHz

Directivity: Uni-directional (super-cardioid)

Sensitivity *[1]: -28 dB +/-3 dB

Output Impedance *[2]: 200Ω±20%, Balanced

Dynamic Range: 111 dB or more

Signal-to-Noise Ratio *[3]: 78 dB or more

Inherent Noise *[4]: 16 dB SPL or less

Induction Noise From External Magnetic Field *[5]: 0 dB SPL or less

Wind Noise *[6]: 60 dB SPL or less (without screen)

Maximum Input Sound Pressure Level *[7]: 127 dB SPL

Connector: XLR-3-12C (male)

Mic Cable: XLR-3 to XLR-3, 480 mm, 18.9 inches

Power Requirements: External, DC 48 V +/-4 V

Dimensions *[8]: φ20 x 250 mm, φ13/16 x 9 7/8 inches

Mass: Approx. 7 oz, Approx. 200 g

SUPPLIED ACCESSORIES:

Windscreen (1)

Stand adaptor (2)

Short LR cable (for camcorder use) (1)

Operating instructions (1)

Mic spacer (2)

Mic holder (1)

Carrying case (1)

NOTE:

*[1] 0 dB = 1 V/Pa, at 1 kHz

*[2] Output impedance at 1 kHz

*[3] A-weighted, 1 kHz, 1 Pa.

*[4] 0 dB SPL = 20 μPa.

*[5] dB SPL/1E-7 T, 0 dB SPL = 20 μPa.

*[6] Wind noise at 2m/s (0 dB SPL = 20 μPa.)

*[7] 0 dB SPL = 20 μPa.

*[8] The values for dimensions are approximate.
