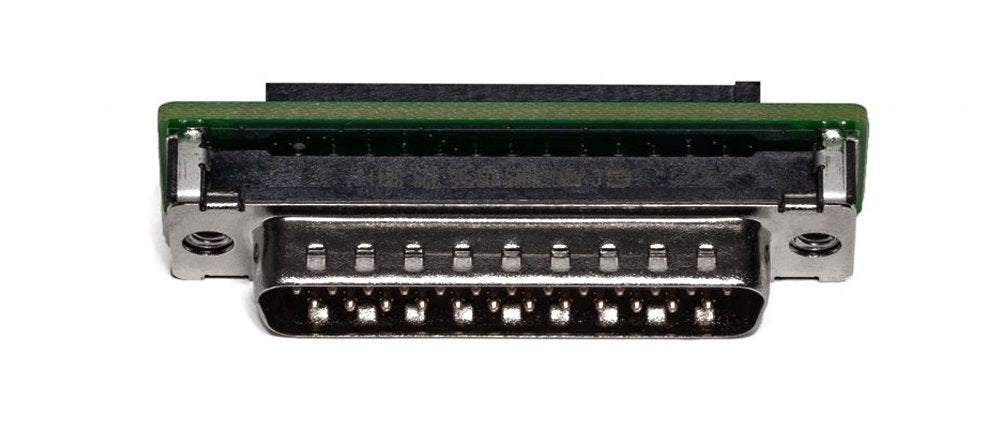

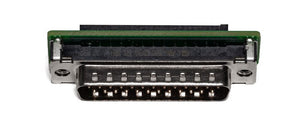

Sound Devices A-FLIP

Supplies Required:

A Phillips head screwdriver

The A-FLIP uses the screws already installed in the A-SL

Four M2.5-0.45 16mm screws

Two M3x0.5 6mm screws

Step 1 Detach the A-SL from the A10-RX by removing the four 16MM screws from the corners. Set the screws aside for reassembly.

Step 2 Detach the A-SL from the back of the A10-RX.

Step 3 Remove the two 6mm screws from either side of the DB-25 connector. Set the screws aside for later use.

Step 4 Slide the connector out of the housing.

Step 5 Insert the A-FLIP into the A-SL housing.

Step 6 Using the two 6mm screws, secure the A-FLIP. Note that the longer side of the connector is now facing up.

Step 7 Insert the A-SL with A-FLIP back onto the A10-RX. Use the tab to guide the A-SL to the body of the A10-RX.

Step 8 Replace all four corner 16mm screws, securing the A-SL to the A10-RX.

Step 9 The A-FLIP is now successfully installed and ready to use in any A10-RACK or Sound Devices SL-6.
