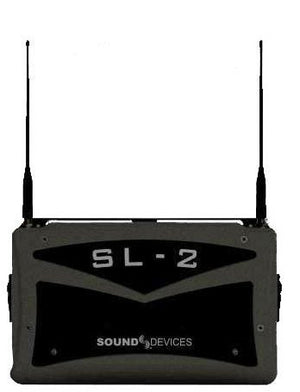

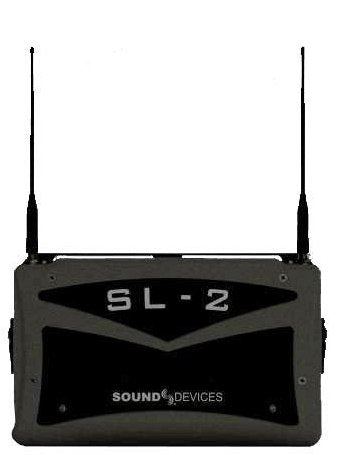

Sound Devices SL-2

The SL-2 is a two slot-in wireless receiver integration system that easily mounts to the top panel of any 8-Series mixer-recorder. It accepts UniSlot and SuperSlot wireless receivers from a variety of manufacturers. Power to the SL-2 and receivers is supplied by the 8-Series mixer-recorder - no external DC connector is needed on the SL-2. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to slot-in receivers, spreading out the placement of antennas for better RF performance. The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio.

SuperSlot is an open, electro-mechanical connection specification, developed by Sound Devices, to simplify the interconnection of wireless audio transmitters and receivers with audio mixers and cameras for the entire industry to use. SuperSlot provides, power, audio, and control signals over a single multi-pin connection. SuperSlot-compatible products are offered by multiple manufacturers.

SuperSlot is an open standard, wireless receivers from several manufacturers are supported, allowing you to use your favorite brand, as well as leveraging your existing transmitter and receiver investment:

Audio Ltd A10-RX Lectrosonics SRb (with audio board update from Lectrosonics) Lectrosonics SRc Lectrosonics SRc-941 Sennheiser EK-6042 Sony DWR-S03D (in future update) Wisycom MCR42 (with SLK42-IKSS rear panel adapter from Wisycom) Wisycom MCR54 (in future update)

• Compatible with the 833, 888, and the Scorpio.

• Accepts two UniSlot or SuperSlot wireless receivers from Audio Ltd, Lectrosonics, Sennheiser, Sony, and Wisycom.

• Built-in antenna distribution with antenna powering for active antennas or boosters.

• Supports remote control of third party smart antennas.

• Two auxiliary MCX antenna ports for connecting other receivers or RF distribution.

• Two TA3 AES3 inputs for an additional 4 channels of digital audio.

• Two DC Outputs via Hirose 4-pin connectors, each supplying up to 500 mA.

• Powers via an 8-Series mixer-recorder.

• Accepts either analog or digital audio from slot-in receivers.

• Ability to set and monitor multiple functions of a SuperSlot-compatible receiver from the 8-Series mixer-recorder. Power on/off

• Set frequency

• RF Scan with visual representation of the RF spectrum

• Monitor transmitter battery, receiver audio, and RF levels

• Rugged, lightweight, and compact design.

• Mounts to the top of any 8-Series mixer-recorder.

• Same width as the 833.
