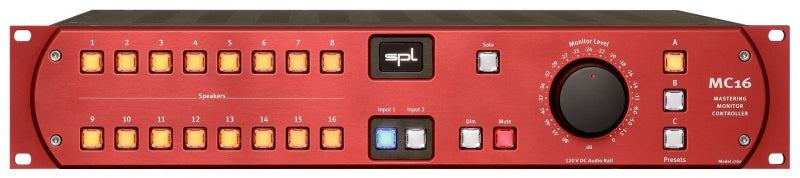

SPL MC16 (Red)

The MC16 sports the world's first 16-gang precision potentiometer which was specially designed for SPL.

To seamlessly integrate multi-channel monitoring into a stereo mastering environment we developed a way of pairing the MC16 with our new DMC stereo mastering console. The combination of DMC and MC16 allows mastering studios to work in all current audio playback formats at the same quality level, all without reconnecting any speakers.

• 16ch analog mastering monitor controller

• Compatible with Dolby Atmos, Auro 3D, etc.

• 120V DC Audio Rail - 5G SUPRA op-amps

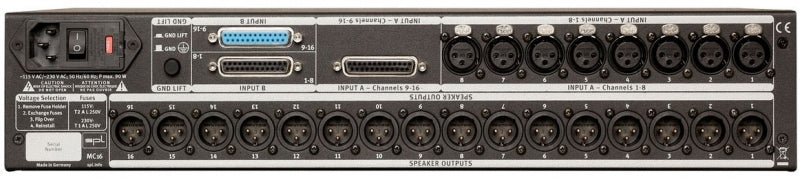

• 2x 16ch inputs (XLR & DB25)

• 16 speaker outputs (XLR)

• Solo, Dim and Mute

• 3 speaker array & 3 solo presets

• Custom 16-gang potentiometer

• Label foil

• Pairing with DMC

INPUTS:

• Max. Input Level: +32,5 dBu

• Input Impedance: 20 kOhm (sym.)

OUTPUTS:

• Max. Output Level: +32,5 dBu

• Output Impedance:
