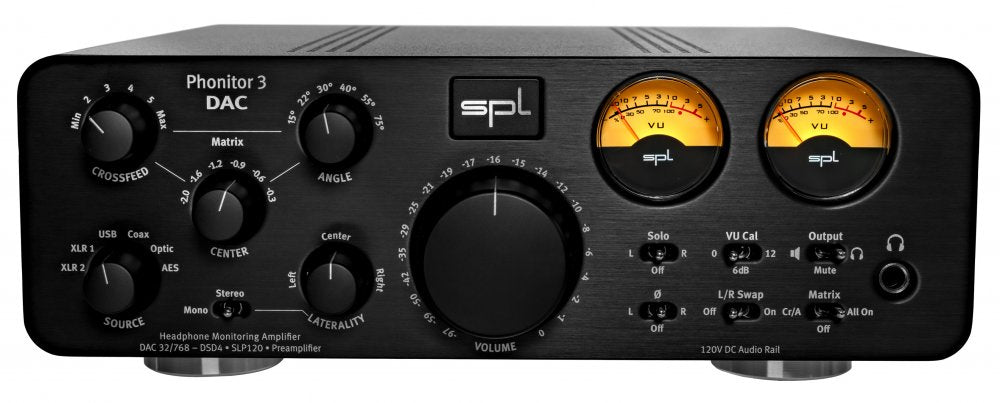

SPL Phonitor 3 DAC

Phonitor 3 DAC is not only the ultimate headphone amplifier and monitoring controller with 120V technology - the integrated DAC makes it the perfect monitoring centerpiece for demanding producers as well as sound and mastering engineers working with digital sources or in the DAW.

Whether if USB, AES/EBU or S/PDIF - the integrated DAC with analog SLP120 converts digital PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts DSD signals with a resolution of up to DSD256.

On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same monitoring quality as the big SPL mastering consoles - on loudspeakers and headphones.

The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality - with the same spatial perception of the stereo stage as on loudspeakers.

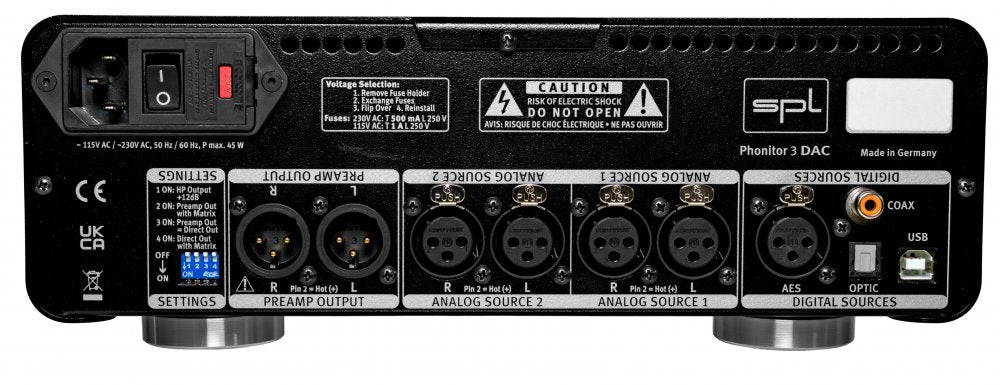

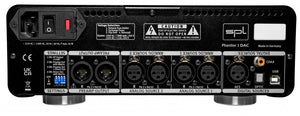

ANALOG INPUTS & OUTPUTS; XLR (BALANCED):

Maximum input & output gain: 32.5 dBu

Input impedance (XLR): 20 ohms

Output impedance (XLR): 75 ohms

Common mode rejection (XLR): -82 dB

Frequency range: 10 Hz - 100 kHz

THD+N (1 kHz, 0 dBu): 0.0009 %

Noise (A-weighted): -102 dBu

Crosstalk (1 kHz): -95 dB

Dynamic range: 134.5 dB

DIGITALE EINGÄNGE DAC768 (OPTIONAL):

AES/EBU (XLR), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz

Coaxial SPDIF (Cinch), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz

Optisch SPDIF (Toslink F06), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192 kHz

USB (B), PCM-Abtastraten: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz

USB (B), DSD over PCM (DoP), Abtastraten: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz

0 dBfs kalibriert auf: 15 dBu

STANDARD HEADPHONES OUTPUT, 6.35 MM (1/4") TRS JACK:

Wiring: Tip = Left, Ring = Right, Sleeve = GND

Source impedance: 0.18 ohm

Damping factor (40 ohms): 180

Frequency range: 10 Hz " 100 kHz

Crosstalk (1 kHz): -91 dB

THD +N (1 kHz, 0 dBu): 0.0003 %

Noise (A-weighted): -102 dBu

Output power (1 kHz, 1% THD, 250 ohms): 2 x 5 W

Output power (1 kHz, 1% THD, 32 ohms): 2 x 1 W

Dynamic range: 134.5 dB
