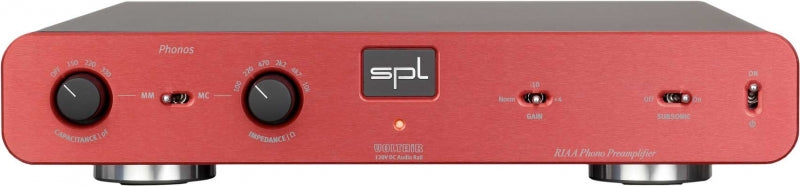

SPL Phonos (Red)

The RIAA filter is designed after Douglas Self. With up to 70 dB gain for MC cartridges and 51 dB gain for MM cartridges Phonos belongs to the most powerful phono preamplifiers.

The technical basis of all Professional Fidelity units is our proprietory 120 V Rail Technology, which we also call VOLTAiR technology. The name makes reference to the unequalled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it.

Available in Black, Red or Silver.

• 120 V rail phono preamplifier for record players

• RIAA equalization (after Douglas Self)

• Suitable for MM (Moving Magnet) and MC (Moving Coil) cartridges

• Max. preamplification: 51dB (MM); 70dB (MC)

• Capacitances for MM: Off, 150 pF, 220 pF and 330 pF

• Impedances for MC: 100, 220, 470; 2k2, 4k7 and 10 kohms

• Styroflex condensers used throughout the RIAA equalizer

• Switchable Gain: Normal, -10 dB, +4 dB

• Gold-plated RCA in- and outputs

• Audio ground connection for record player

• Switchable rumble filter (Subsonic)

• Linear power supply with toroidal transformer

• Made in Germany

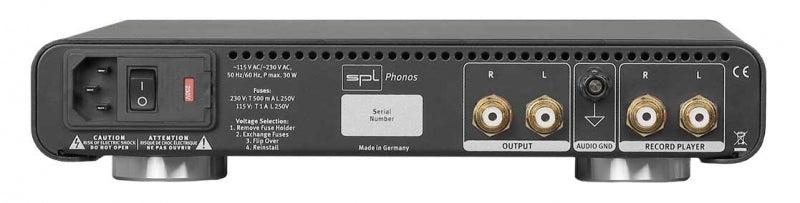

INPUTS AND OUTPUTS:

• RCA, unbalanced, gold-plated

• Input impedance (MM): 100 kohms

• Output impedance (MC): switchable

• Output impedance: < 5 ohms

• Crosstalk: -80dB (at 1 kHz)

FILTER:

• RIAA equalizer (after Douglas Self)

Moving Magnet (MM) preamplifier

• Amplification: 47 dB (Norm.), 37 dB (-10 dB), 51 dB (+4 dB)

• Switchable capacitance: Off, 150 pF, 220 pF and 330 pF

• Noise (A-weighted): -85,3 dB

MOVING COIL (MC) VERSTÄRKER:

• Amplification : 66 dB (Norm.), 56 dB (-10 dB), 70 dB (+4 dB)

• Schaltbare Impedances: 100, 220, 470, 2k2, 4k7, 10 k ohms

• Noise (A-weighted): -61,7 dB

INTERNAL OPERATING VOLTAGE:

• +/- 60 V

POWER SUPPLY:

• Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz

• Fuses: 230 V: T 500 mA; 115 V: T 1 A

• Power consumption: max. 30 VA

• Stand-by power consumption: 0.7 W

DIMENSIONS (INCL. FEET):

• 278 mm W x 57 mm H x 330 mm D

• 10.95 in W x 2.24 in H x 13 in D

WEIGHT:

• 3.2 kg; 7.05 lbs (unit only)

• 4.3 kg; 9.5 lbs (shipping)
