Sonnet DuoModo xMac mini Module

The DuoModo xMac mini Module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt 3 storage dock that adds NVMe storage expansion and additional ports for connecting peripherals.

Front Panel Connectivity 40Gbps Thunderbolt and 10Gbps USB Ports The front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.

ADD A MAC MINI:

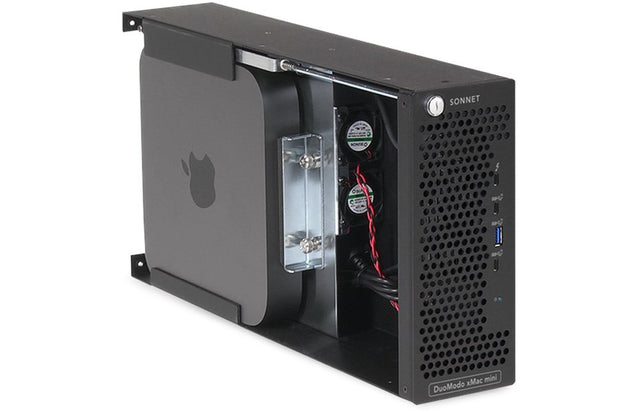

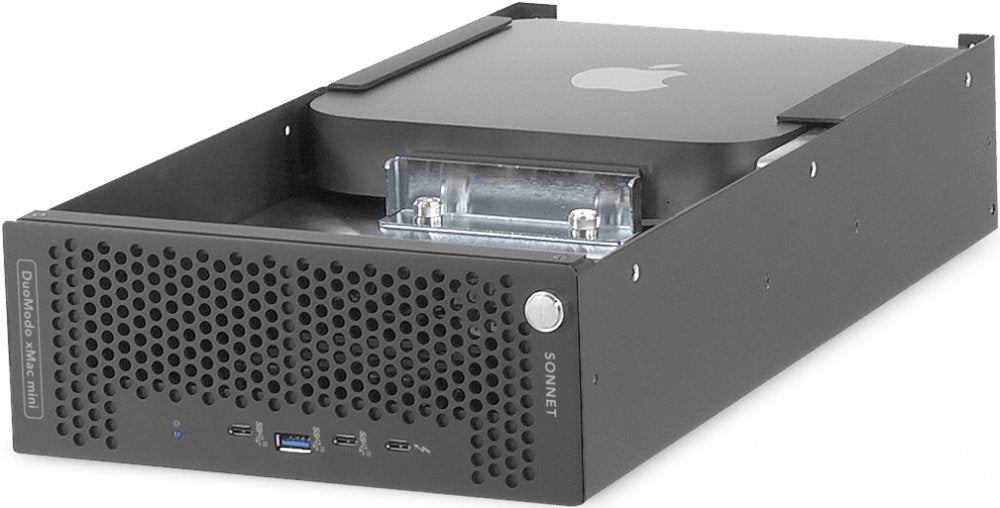

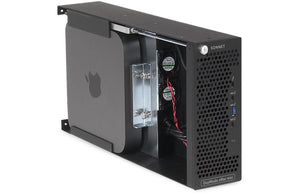

Securely holds an Intel or M1 Mac mini in horizontal or vertical orientation

Open access to the computer's ports in back

Rugged steel frame protects installed Mac mini

Thunderbolt 3 (40Gbps) cable included

BUILT-IN THUNDERBOLT 3 DOCK WITH SSD SOCKETS AND FRONT PANEL PORTS:

Add up to 16TB of M.2 NVMe SSD Storage!

FOUR FRONT PANEL PORTS:

One Thunderbolt 3 (40Gbps) port

Two USB 3.2 (10Gbps) Type-C ports

One USB 3.2 (10Gbps) Type A port

INTERNAL CONNECTIONS:

Two M.2 NVMe SSD sockets - add up to 16TB (SSDs sold separately)

One internal USB 3.2 (10Gbps) Type A port

Internal Thunderbolt 3 (40Gbps) port connects dock to the Mac mini

INTERNAL USB TYPE A PORT:

Internal USB Type A port included for securely connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive

QUIET FANS:

Dual fans offer quiet operation

Temperature-controlled, variable-speed

FORM FACTOR:

Expansion system module

FRONT PANEL CONNECTORS:

One Thunderbolt (USB Type-C) port

Two USB 3.2 (10Gbps) Type-C ports

One USB 3.2 (10Gbps) Type A port

INTERNAL CONNECTORS:

One Thunderbolt (USB Type-C) port to Mac mini

One USB 3.2 (10Gbps) Type A port for thumb drive or dongle

Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)

SSDS(1):

One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink)

POWER SUPPLY:

Universal 96W, 100-240V AC, 50-60Hz

C14-type power connector

OPERATING TEMPERATURE:

0ºC to 35ºC (32ºF to 95ºF)

DIMENSIONS (WXDXH):

3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)

WEIGHT:

4.95 lbs (2.25 kg)

COMPLIANCE:

RoHS 3 (Directive 2015/863)

IEC62368-1 and IEC62368-2

PACKAGE CONTENTS:

xMac mini Module

Power cord

0.5-meter Thunderbolt 3 (40Gbps) cable

Documentation

*MAC MINI NOT INCLUDED:
