Furman MIW-SURGE-1G

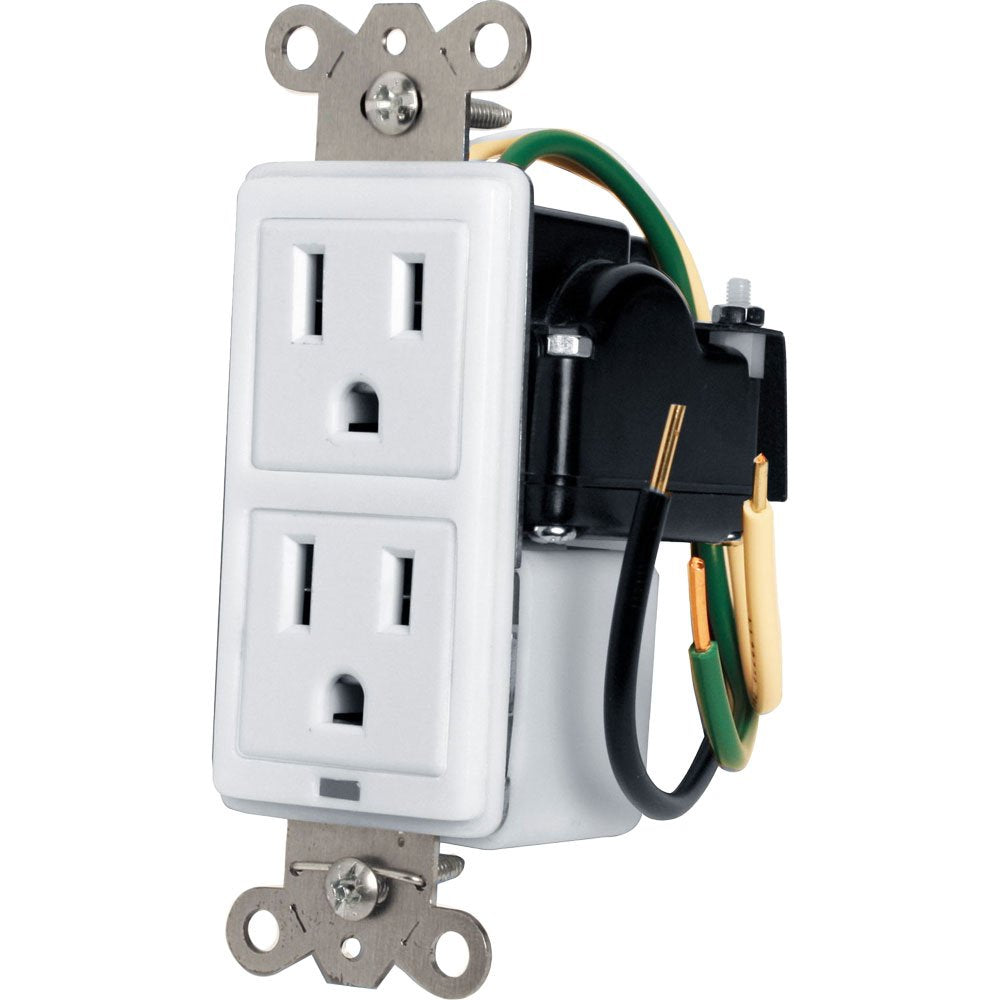

The Panamax MIW-SURGE-1G is a compact in-wall surge protection solution designed to power and protect remote electronics such as TVs, projectors, and AV equipment. It features two AC receptacles housed in a single-gang format, ideal for behind-wall mounting in standard electrical boxes-perfect for clean, code-compliant installations.

This unit offers 1350 joules of energy dissipation and includes Protect-or-Disconnect circuitry across all three protection modes (L-N, L-G, N-G), ensuring robust defense against damaging power surges. A bi-color LED indicator makes status checks simple: green confirms power, while red warns of a line fault. The Decora-style faceplate interface allows seamless integration with standard wall plates.

• Two Surge-Protected Outlets: Delivers safe power to wall-mounted or remote devices using standard AC plugs.

• In-Wall Installation: Mounts behind electronics using a standard single gang box for a clean, hidden setup.

• Visual Status Indicators: Bi-color LED shows power status (green) and line fault (red) for easy monitoring.

• Decora-Style Design: Blends into standard wall plates for a sleek, low-profile appearance.

• Reliable Protection Circuitry: "Protect or Disconnect" feature safeguards against power surges across all three protection modes.

• Durable Build and Safety Certified: CSA certified for code-compliant installations; includes thermal fusing for added protection.

• High Surge Absorption: 1350-joule rating to protect connected equipment during power spikes.

• Complete Mounting Kit Included: Ships with wire nuts and screws for easy installation.

GENERAL SPECIFICATIONS:

• Product Name: MIW SURGE 1G

• Product Type: In wall duplex surge protector

• Family: In Wall Series

• Line Voltage: 120 Volts

• Number of Outlets: 2

• Outlet Type: 2 surge protected outlets

• Mounting: Fits standard single gang plastic or metal boxes

• Faceplate: Decora style interface

• Dimensions: 1.375 in W x 2.25 in D x 4.25 in H

• Weight: 0.36 lbs

• UPC: 050616008853

• Compliance: CSA certified

AC PROTECTION SPECIFICATIONS:

• AC Protection Technology: Protect or Disconnect

• Protection Modes: Line to Neutral Line to Ground Neutral to Ground

• Voltage Protection Rating at 3000 Amps: 400 Volts

• Energy Dissipation: 1350 Joules

• Maximum Current Rating: 15 Amps

• Thermal Fusing: Yes

• Undervoltage Shutoff: Not applicable

• Overvoltage Shutoff: Not applicable

INDICATORS AND CONTROLS:

• LED Indicator: Bi color, Green = Power On, Red = Line Fault

INSTALLATION DETAILS:

• Mounting Hardware Included: 3 wire nuts and 2 pre installed mounting screws

• Uses standard wiring device screw holes

ADDITIONAL FEATURES:

• No USB Charging

• No Low Voltage Trigger

• No Signal Line Protection

• No Filtration Technology
